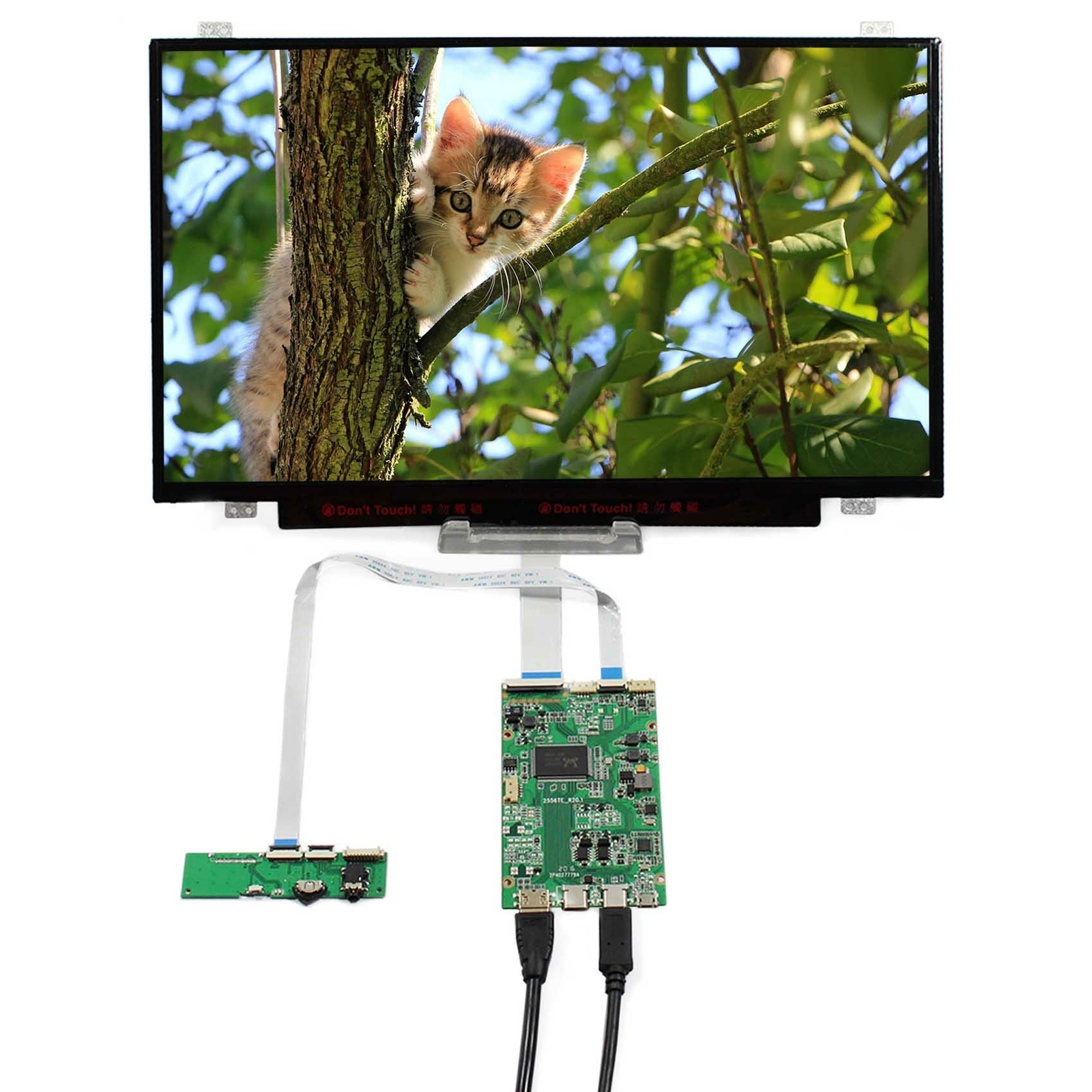

14inch eDP 1920X1080 IPS LCD Capacitive Touch screen with H-D Type C LCD board
VSDISPLAY
--\n\n--\n\n--\n\n--\n\n--\n\n--\n\nProduct Description\n\nLCD Controller Board: \nHD Type C Control Board Work for eDP LCD Screen\nInput Power Adapter: Type-C connector\nHDR: Support\nCome In Standby Model When Not Input Signal\nStandby Model <0.3W\nInput: Type-C Mini HD \nOutput: eDP USB (max 500mA)\nAudio Output: Speaker\nOSD: Brightness Contrast VOL+ VOL- Language And So On\nLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski\nNederlands Korean Japanese\nBoard Size: 82mm x 60mm x 4mm\n\n14\"" 1920X1080 eDP LCD Screen:\nDisplay Mode N, ADS, Normally Black, Transmissive\nResolution 1920(RGB)\u00D71080\nOutline Size 320.4 \u00D7 205.1 \u00D7 3 (H\u00D7V\u00D7D)\nDisplay Area 309.14 \u00D7 173.89 (H\u00D7V) \nBrightness 300 cd/m\u00B2 (Typ.)\nContrast Ratio 700:1 (Typ.) (TM)\nViewing Angle 89/89/89/89 (Typ.)(CR\u226510) [Left / Right / Up / Down]\nSignal Interface eDP (2 Lanes) , Connector , 30 pins\nBacklight WLED\nInput Voltage 3.3V (Typ.)\n\nPay
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
145,00 GBP | Go to shop |
