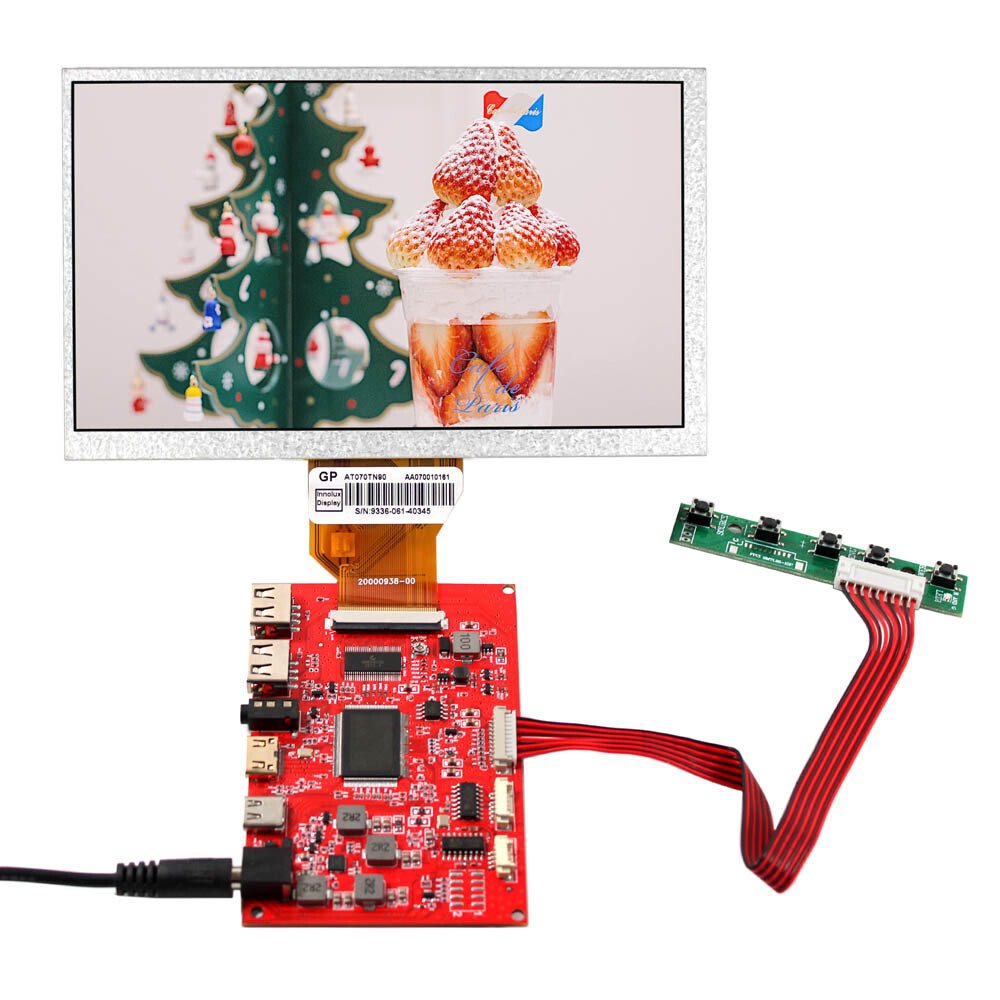

Mini HD DIY driver board with 7 inch LCD TFT Display Module 800x480 AT070TN90
VSDISPLAY
--\n\n--\n\n--\n\n--\n\nProduct Description\n\nLCD Controller Board: \nHD-mini LCD Board Work for 50Pin TTL LCD Screen\nInput Power Adapter: DP 5V-9V dc More than 20W.\nCome In Standby Model When Not Input Signal\nVideo Input: HD-mini \nOSD: Brightness Contrast Auto Language And So On\nLanguage: English French German Spanish Italian And So On\nBoard Size:52mm x 46mm x 6mm\n\n7\"" AT070TN90 800X480 LCD Screen:\nDisplay Mode TN, Normally White, Transmissive \nResolution 800RGB)\u00D7480\nOutline Size 165.2 \u00D7 96.62\u00D75.7 (H\u00D7V\u00D7D)\nDisplay Area 154.08 \u00D7 85.92 (H\u00D7V) \nBrightness 250 cd/m\u00B2 (Typ.)\nContrast Ratio 500:1 (Typ.) (TM) \nViewing Angle 70/70/60/70 (Typ.)(CR\u226510) [Left / Right / Up / Down]\nSignal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC\nBacklight WLED\nInput Voltage 3.3V (Typ.)\n\nPacking list:\n1\u00D7 HD-mini LCD Controller Board VS-TY2660H-V852\n1\u00D7 7inch AT070TN90 800X480 LCD Screen\n\y
