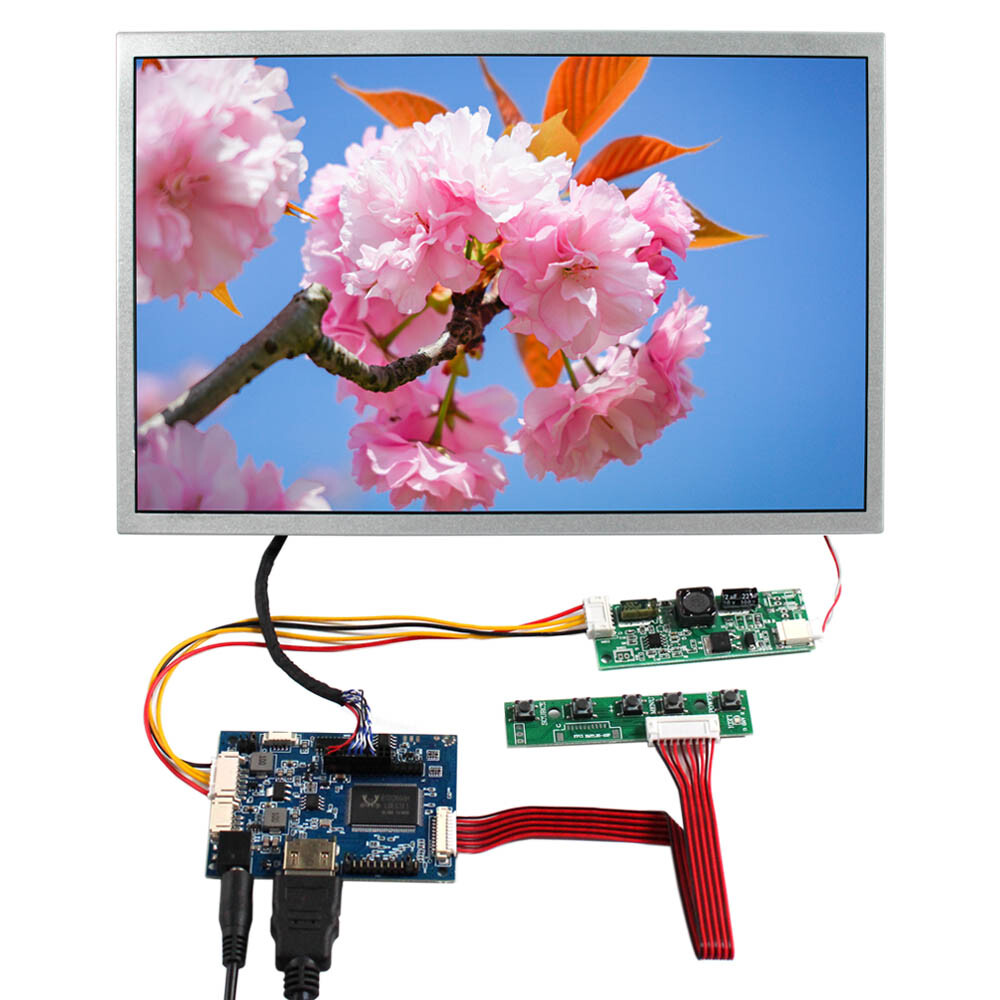

HD Audio LVDs Board and 12.1 inch 800x600 HD 4:3 TN 20pin WLED LCD Screen
VSDISPLAY
--\n\n--\n\n--\n\n--\n\nProduct Description\n\nLCD Controller Board: \nHD LCD Board Work for LVDS Interface LCD Screen\nInput Power Adapter: 12Vdc More than 2A.\nCome In Standby Model When Not Input Signal\nStandby Model <1W\nVideo Input: HD \nAudio Input: HD\nAudio Output: Speaker (4Pin PH1.0 connector)\nOSD: Brightness Contrast Auto Language And So On\nLanguage: English French German Spanish Italian And So On\nBoard Size: 74mm x 53mm x 12mm\n\n12.1\"" VS121T-002A 800x600 LCD Screen:\nDisplay Mode TN, Normally White, Transmissive\nResolution 800(RGB)\u00D7600\nOutline Size 262\u00D7202\u00D710mm (H\u00D7V\u00D7D)\nDisplay Area 245.76\u00D7 184.32mm (H\u00D7V)\nBrightness 450 cd/m\u00B2 (Typ.)\nContrast Ratio 700:1 (Typ.) (TM)\nViewing Angle 85/85/85/85 (Typ.)(CR\u226510)\nSignal Interface Parallel LVDS (1 ch,6/8-bit),20 pins,\nBacklight WLED\nInput Voltage 3.3V (Typ.)\n\nPacking list:\n1\u00D7 HD Audio LCD Controller Board VS-TY2660H-V661\n1\u00D7 12.1inch VS121T-002A 800x600y
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
106,80 GBP | Go to shop |
