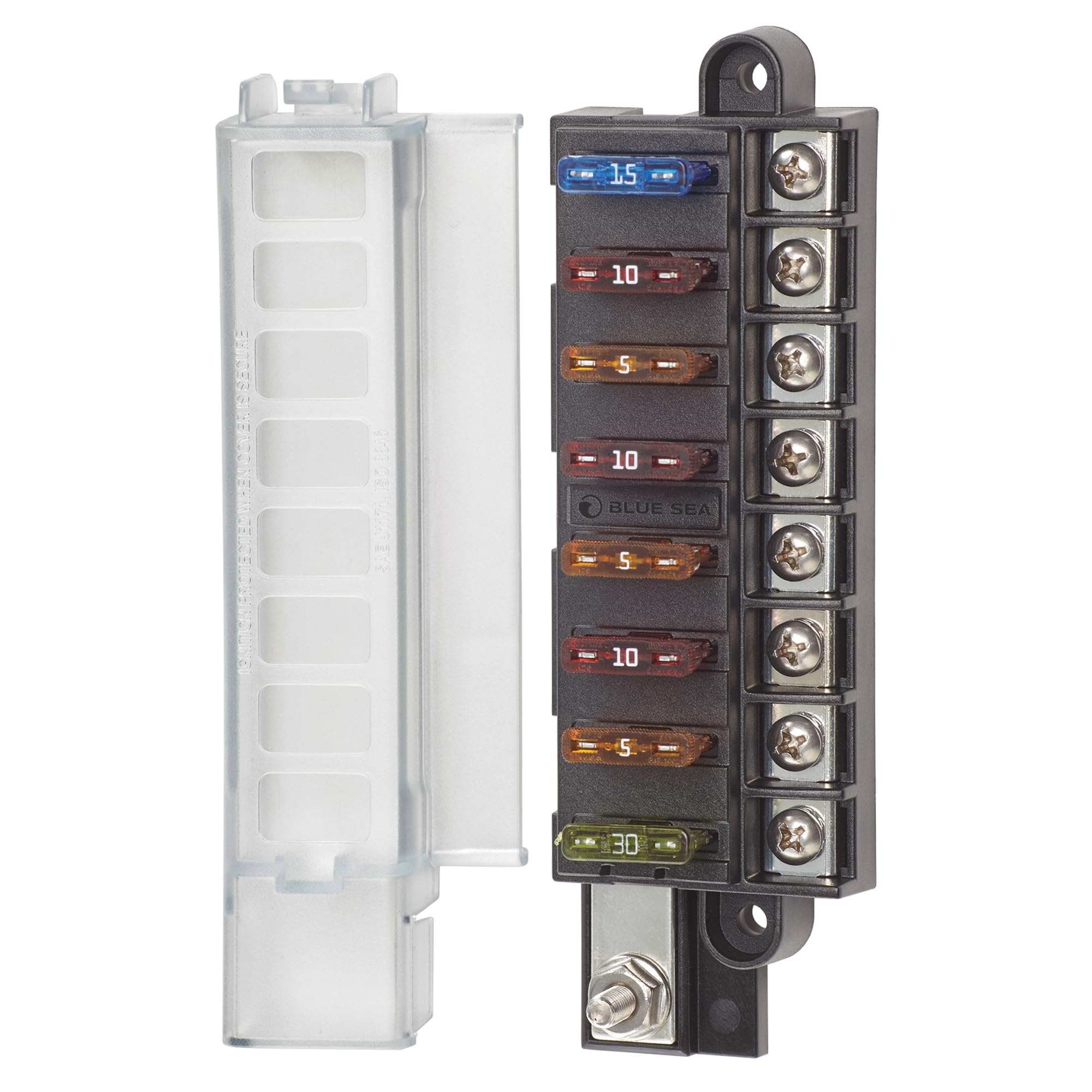

Blue Sea Systems 5046 ST Blade Fuse Block Compact 8 Circuit with Cover

Name: Blue Sea Systems 5046 ST Blade Fuse Block Compact 8 Circuit with Cover
Brand: Blue Sea Systems

Blue Sea Systems

Blue Sea Systems Fuse Block ST Blade Compact 8 Circuit with Cover, part number 5046, is a common source fuse block that provides surface mount circuit protection for ATO/ATC fuses in a compact footprint Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 Screw (M4), Recommended stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer, terminal stud size: #10-32 Single side design allows wire entry from one side to maximize space Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Clear insulating cover meets ABYC/USCG insulation requirements. Includes 4 write-on circuit labels. Fuses sold separately
