Adafruit INA169 Analog DC Current Sensor Breakout - 60V 5A Max

Adafruit INA169 Analog DC Current Sensor Breakout - 60V 5A Max

Adafruit

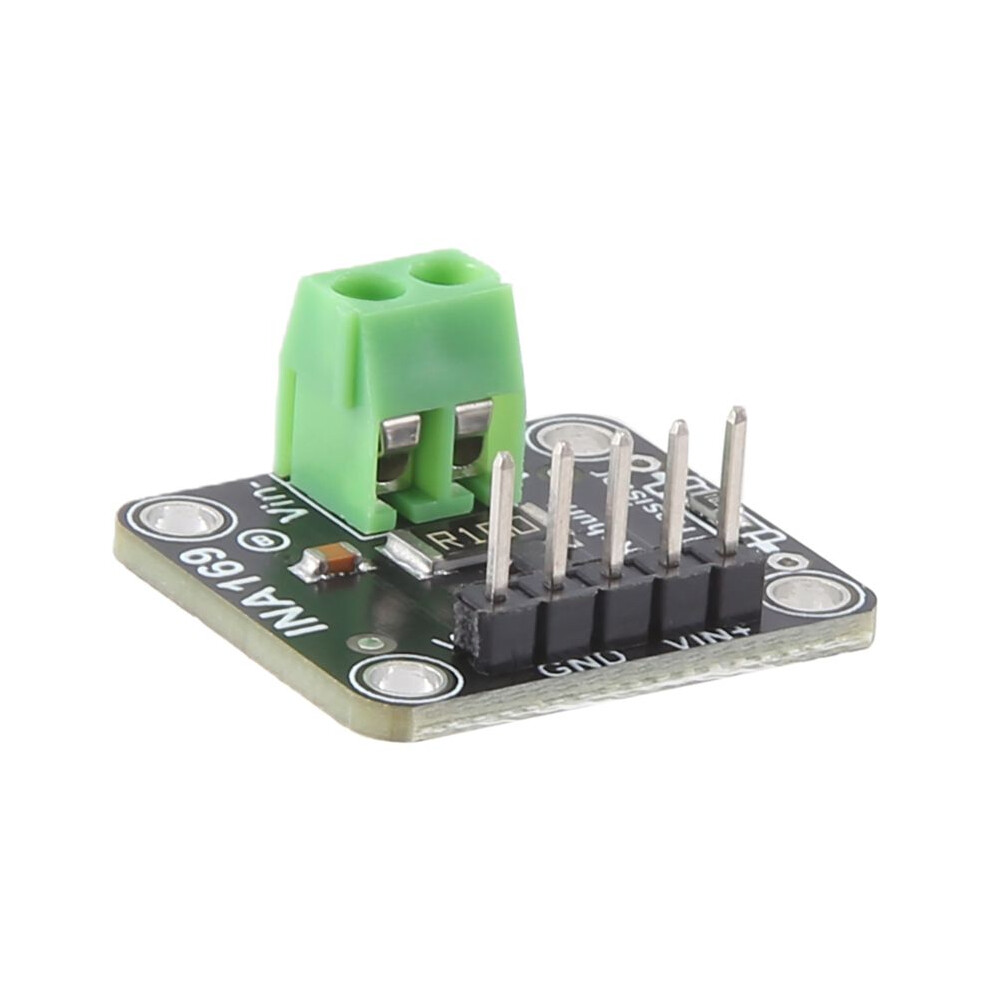

--\nOur eBay Store\n\nAdafruit 1164 INA169 Analog DC Current Sensor Breakout - 60V 5A Max\n\nProduct Details\n\nThe Adafruit INA169 Analogue DC Current Sensor Breakout sits between a load and the positive supply terminal to measure the current flowing through the load. This is referred to as high side current measuring. Suitable for measuring currents up to 5A and with supply voltages up to 60V DC, it uses a 0.1\u03A9 shunt resistor and an internal 10k\u03A9 to provide a voltage output of 1V per Amp. It's up to you how you use this output, you could simply connect a multimeter and read it directly or attach a microcontroller's analogue input and broadcast it across the Internet. \nSupplied as an assembled and tested current sensor board plus a strip of 0.1in. header pins and a 2-way screw terminal block for you to solder on as required. If you want to change the measurement ratio, it's possible to cut the tracks to the load resistor and add your own. Please see Figure 1, \""Basic Cir;

Compare prices (3 shops)

Sort: Price: lowest first Price: highest first
shop Price Action
12,60 GBP Go to shop
12,60 GBP Go to shop
12,63 GBP Go to shop
