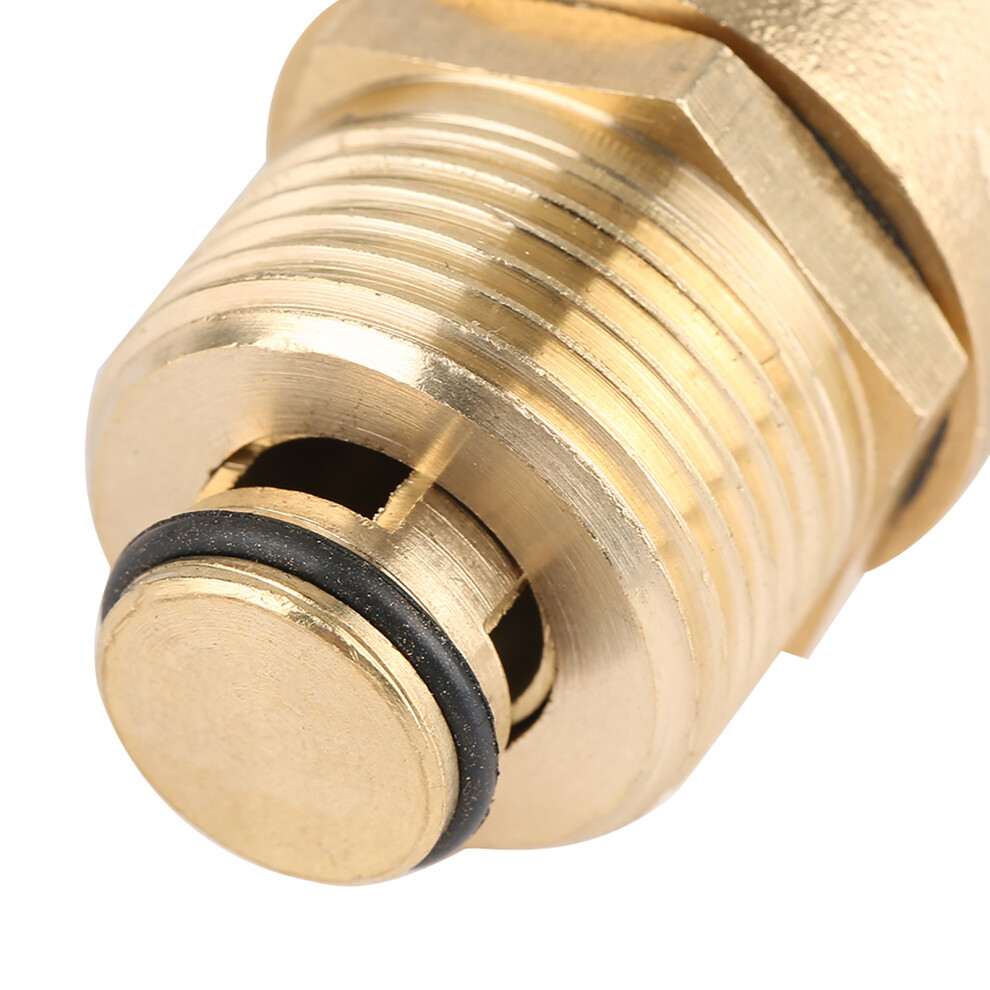

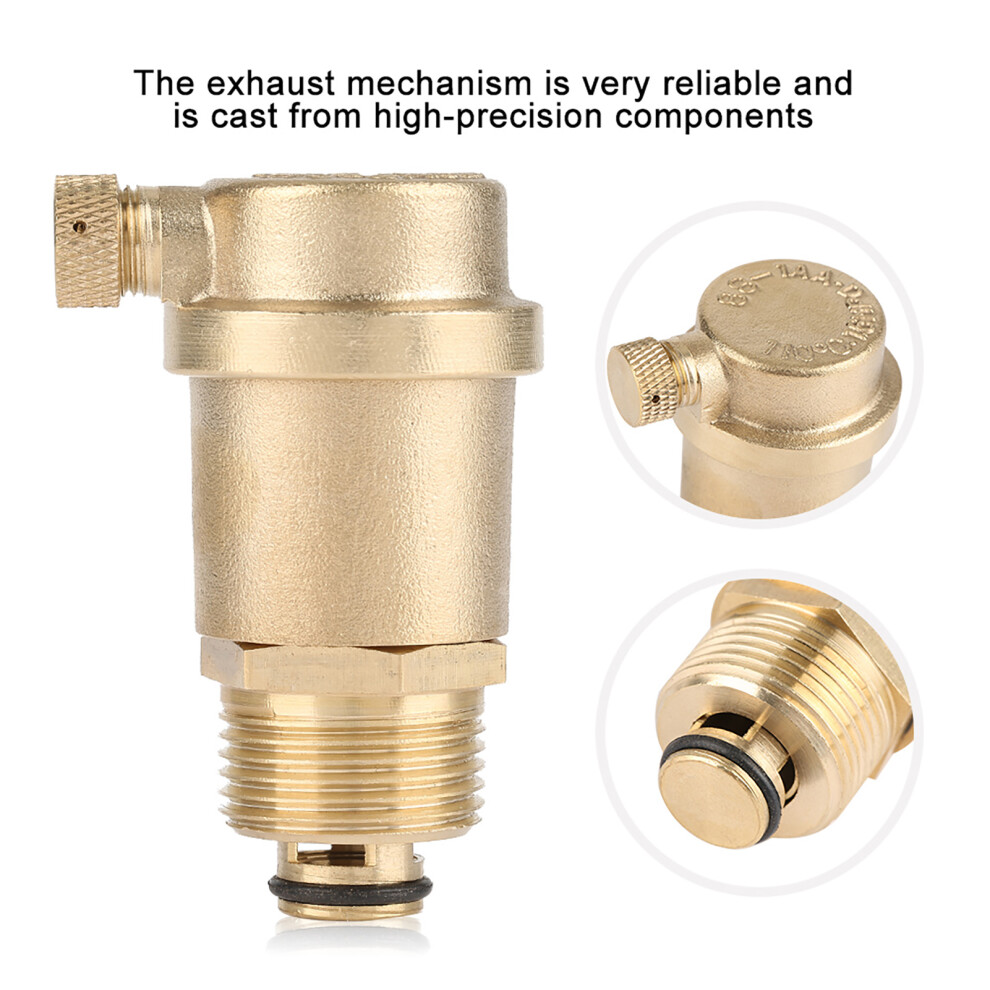

G3/4"" INCH DN20 Air Vent Valve for Solar Water Heater, Pressure Relief Valve
MISOL
G\nG3/4\"" INCH DN20 Air Vent Valve for Solar Water Heater, Pressure Relief Valve\n \n\n \n 3/4\"" Air Vent valve\n \n\nModel: SWH-OTH-AV6-1\n\n \nBrass relief Valve\n\nTechnical Specifications:\n1, Nominal pressure: 1.6MPa\n2, Working Medium: Water\n3. Temperature 0 \u2264 t \u2264 110 Celsium Degree.\n\n Remarks:\n\n1. Brass vertical automatic vent valve is for hot and cold water pipeline system and low pressure vessel to exclude air;\n\n2. valve should be installed vertically at highest point in the piping system. hot water heating system installed in the piping system should be at the end of top;\n\n3. Pressure should be adjusted before use, it's forbidden to open the valve during installation and use\n\n4. First install one-way connector, then tighten the exhaust valve, loosen the small nut to ensure the smooth discharge of the gas.\n\n \n\n \n\n \n \n \n\n \n \n Payment\n \n \n\u00B7 Please pay within 3 days after au.
