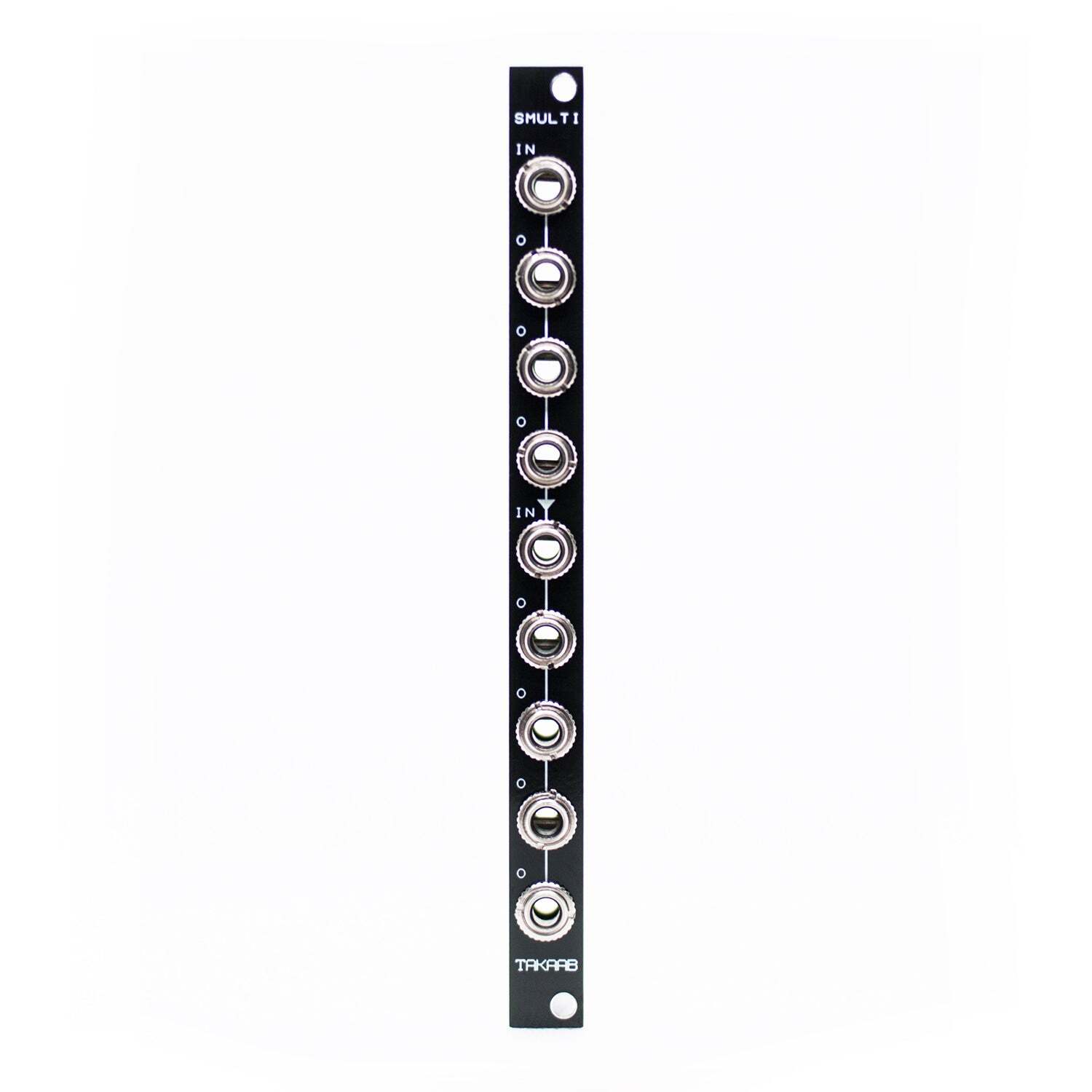

TAKAAB S-MULTI - Passive Multiple Eurorack Module (Switched dual or single) 2HP

Name: TAKAAB S-MULTI - Passive Multiple Eurorack Module (Switched dual or single) 2HP
Brand: Takaab by Siam Modular

Takaab by Siam Modular

This passive module works as a 1 in 7 out multiple or as two smaller multiples. Any signal or voltage put into the top input will be split between the 7 outputs of the module. When a signal or voltage is added into the lower input, this creates two separate multiples - So the top input is then split between the top three outputs, and the lower input is split between the bottom 4 outputs.\n\n As this is a passive module, expect some drop in level. However, it is still useful for most applications where a 1v/oct signal does not need to be maintained.\n\n 1x \""1 in 7 out\"" multi\n\n -OR-\n\n 1x \""1 in 3 out\"" multi + 1x \""1 in 4 out\"" multi.\n\n Size: 1cm (2HP) x 128.5cm x 1.8cm.\n\n Module depth: 1.4cm.\n\n Package contents: 1x module, 2x M3 screws.
