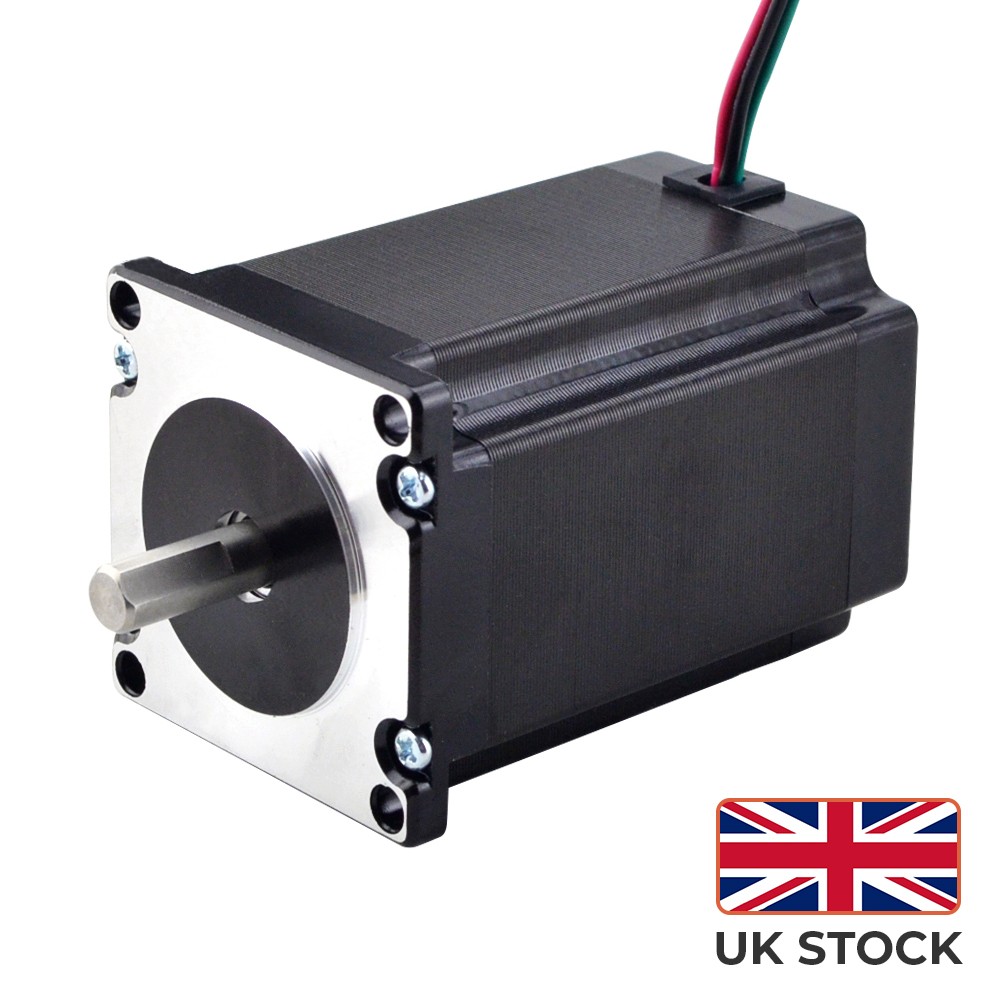

STEPPERONLINE Nema 23 Stepper Motor 2.4Nm 340oz.in 4A 57x82mm 8mm Shaft 4 Wires

Name: STEPPERONLINE Nema 23 Stepper Motor 2.4Nm 340oz.in 4A 57x82mm 8mm Shaft 4 Wires
Brand: StepperOnline

StepperOnline

--\n--\n--\n--\n \n\nPackage include: 3pcs Nema 23 Stepper Motor\n\n \n\n Electrical Specification\n\n--Manufacturer Part Number: 23HS32-4004S\n\n--Number Of Phase: 2\n\n--Step Angle: 1.8 deg\n\n--Holding Torque: 2.4Nm(339.79oz.in)\n\n--Rated Current/phase: 4.0A\n\n--Phase Resistance: 0.9ohms\n\n--Inductance: 3.4mH \u00B1 20%(1KHz)\n\nPhysical Specification\n\n--Frame Size: 57 x 57mm\n\n--Body Length: 82mm\n\n--Shaft Diameter: \u03A68mm\n\n--Shaft Length: 21mm\n\n--D-cut Length: 15mm\n\n--Number of Leads: 4\n\n--Lead Length: 300mm\n\n--Weight: 1.2kg\n\nConnection\n\n \n
