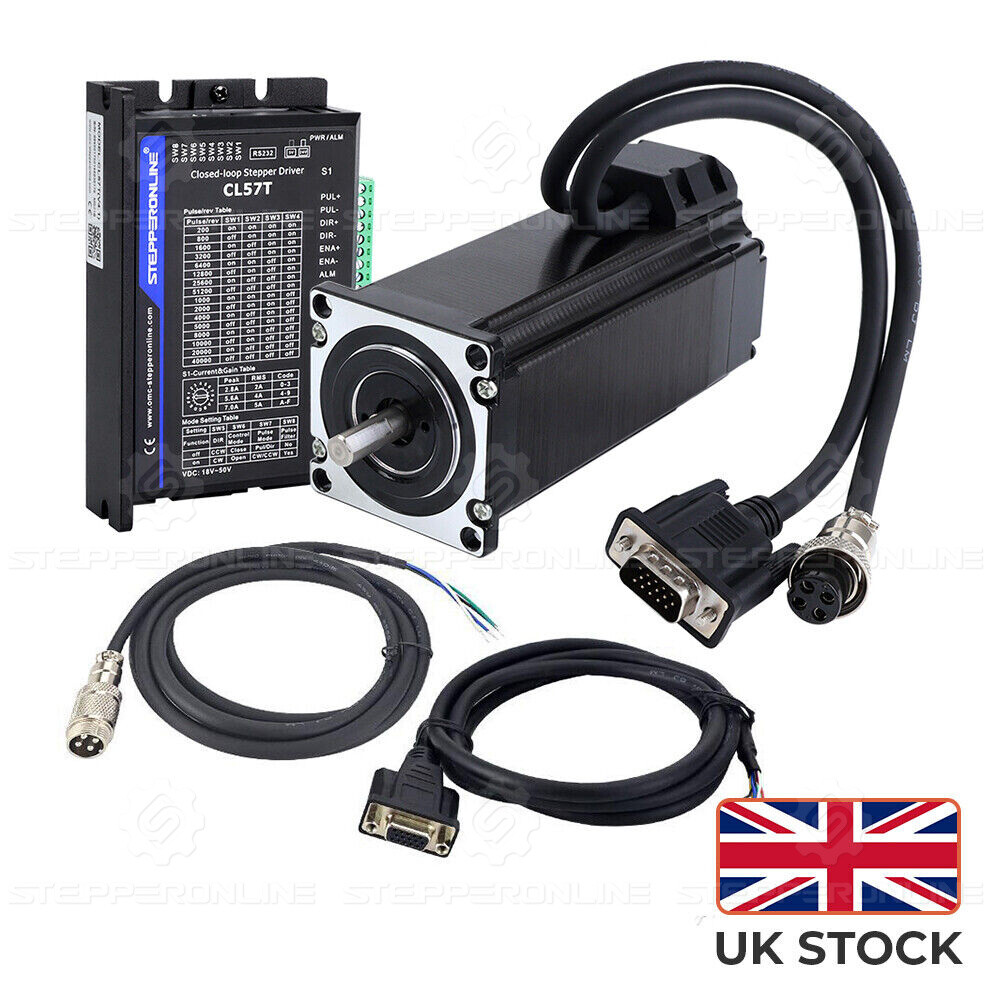

STEPPERONLINE Closed Loop Stepper Motor Nema 23 3Nm Hybrid Servo Driver CNC Kit

StepperOnline

--\n--\n--\n--\n--\n--\n\nThis CNC kit included:\n\n--1 x Closed Loop Stepper Driver 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor\n\n--1 x Nema 23 Closed Loop Stepper Motor 3.0 Nm/424.83oz.in Encoder 1000CPR\n\n--1 x  1.7m Long Encoder Extension Cable for Closed Loop Stepper Driver\n\n--1 x  RV-4 AWG20 1.7m Long Motor Extension Cable with GX16 Aviation Plug\n\n--1 x RS232 Debugging Cable\n\n--1x driver CL57T User Manual \n\nMotor Specification:\nPart Number: 23HS45-4204D-E1000\nNumber of phase: 2\n\n--Holding Torque: 3.0 Nm(424.83oz.in)\n\n--Rated Current/phase: 4.2 A\n\n--Phase Resistance: 0.82ohms\n\n--Inductance: 3.6mH \u00B1 20%(1KHz)\n\n--Frame Size: 57 x 57mm\n\n--Body Length: 113mm\n\n--Shaft Diameter: 8mm\n\n--Shaft Length: 21mm\n\n--D-CUT Shaft Length: 15mm\n\n--Lead Length: 300mm\n\n-- \n\n \nEncoder Specification:\n\nOutput Circuit Type: Differential type\nEncoder Type: Incremental\nEncoder Resolution: 1000PPR(4000CPR)\nOutput Signal;
