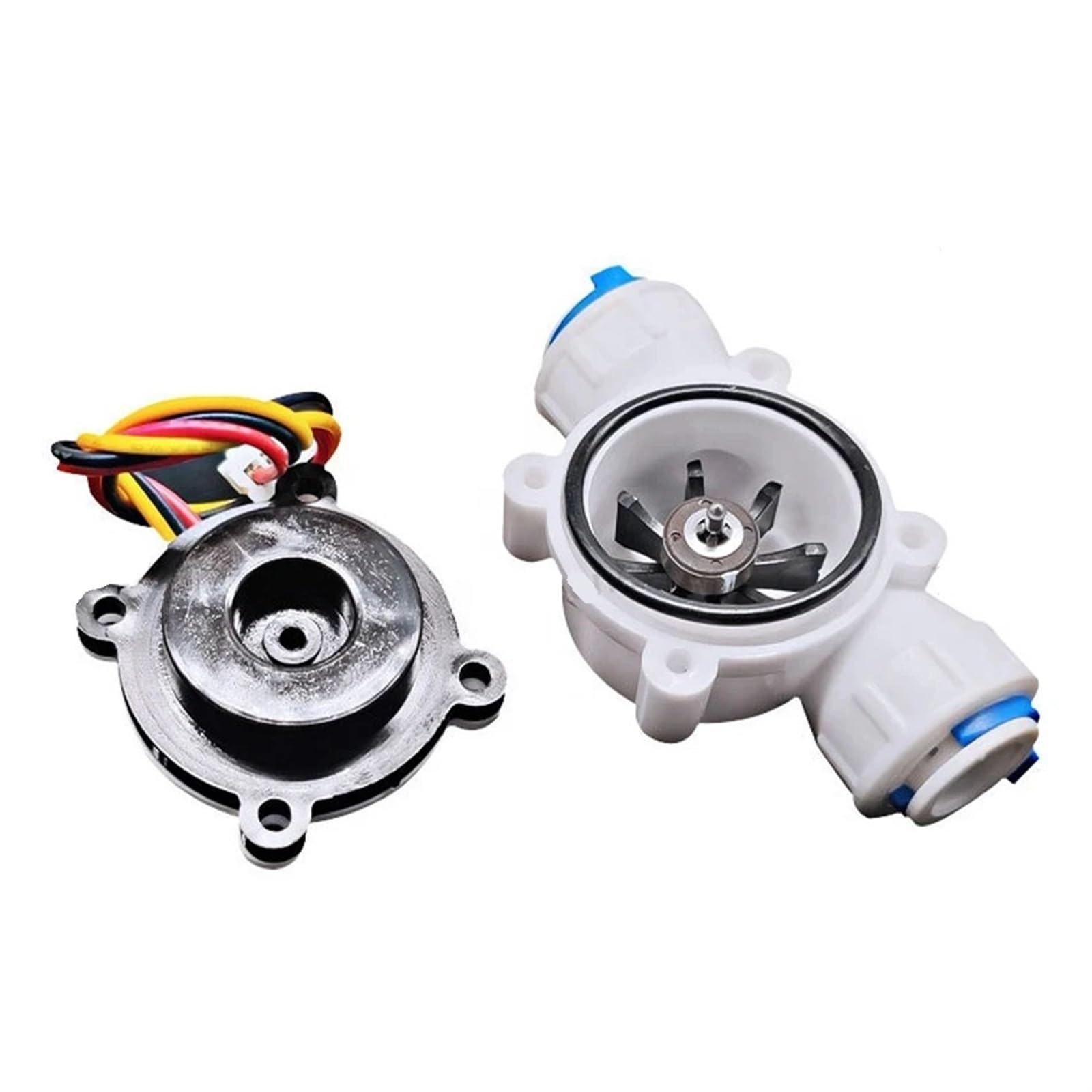

G3/8"" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S301 0.3-10L/min Wa

G3/8"" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S301 0.3-10L/min Wa

‎Youmile

Universal eBay Template\nFree UK \nDelivery\nFree \nReturns\nCustomer Satisfaction \nGuaranteed\nTop Customer \nFeedbackG3/8\"" Quick Connect Hall Effect Sensor Water Flow Sensor YF-S301 0.3-10L/min Water Hall Effect Flow Sensor with Silicone Tubing 10mm IDProduct DescriptionSpecifications: Frequency: F=21 * Q (L / Min) error: 2%, current can not exceed 10mA, 450 output pulses/liters, F=constant * units of flow (L / min) * time (seconds). Flow range:0.3-10L/min Working voltage range: DC 5-18 V Operating Temp: 80 Operating humidity: 35%-90%RH Pressure range: water pressure 0.8 MPa below Storage Temperature: -25-80 Storage humidity: 25%-95%RH Output Waveform: square Wave, output pulse signal. ROHS Compliant. Cable length:15cm. Wiring:Red---VCC(+) Black---GND Yellow----Signal Package includes: 1 x YF-S301 Water flow sensor 1 x 30cm/11.81in Silicone Tubing (10mm ID)Product Features\n--Advantages: Waterproof, heat resistance, pressure resistance, cold resistance.\n--Food grade: Liquid pas.
