PULS Dimension 4-Output DIN Rail Protection Module 24V DC 20A (4x 6A)

Name: PULS Dimension 4-Output DIN Rail Protection Module 24V DC 20A (4x 6A)
Brand: PULS

PULS

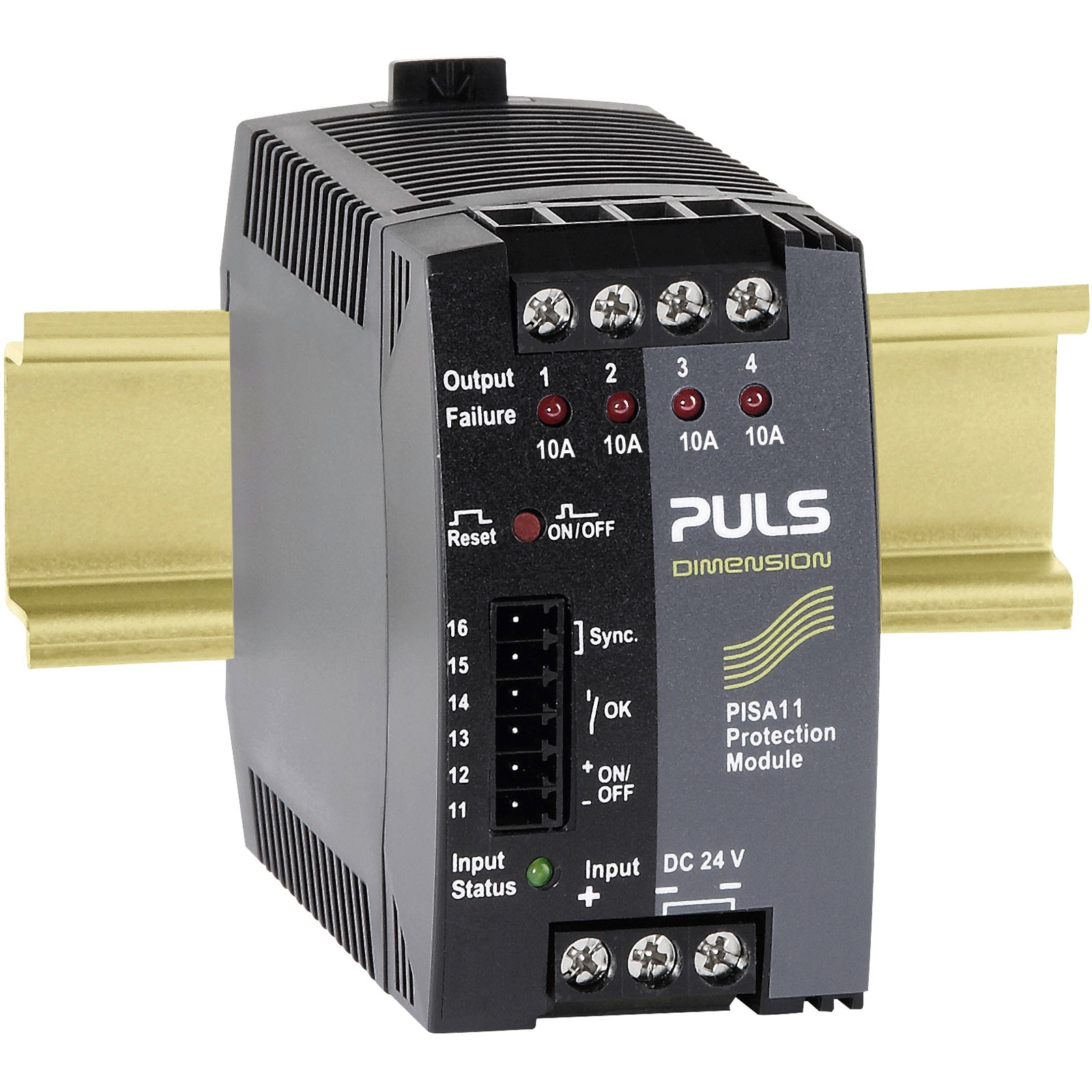

--\nOur eBay Store\n\nPlease note: This item has a longer lead time for dispatch then normal as it's a non-stocked item that is ordered in, please see the estimated delivery date by eBay. We will of course ship the item sooner if possible.\n\nPULS PISA11.406 Dimension 4-Output DIN Rail Protection Module 24V DC 20A (4x 6A)\n\nProduct Details\n\nThis protection module from PULS fulfills two basic functions. First it distributes the current of a large power source to four lower current output channels and therefore allows for smaller wires to be used. The second function is to permit only so much current on the outputs that the input voltage of this unit (which corresponds to the output voltage of the power supply) does not fall below 21V. This ensures a safe and an uninterrupted supply voltage for sensitive equipments, such as PLCs, controls or sensors, when they are connected directly to the same power supply as the PISA module. Less critical loads that are not affected to short volta;
