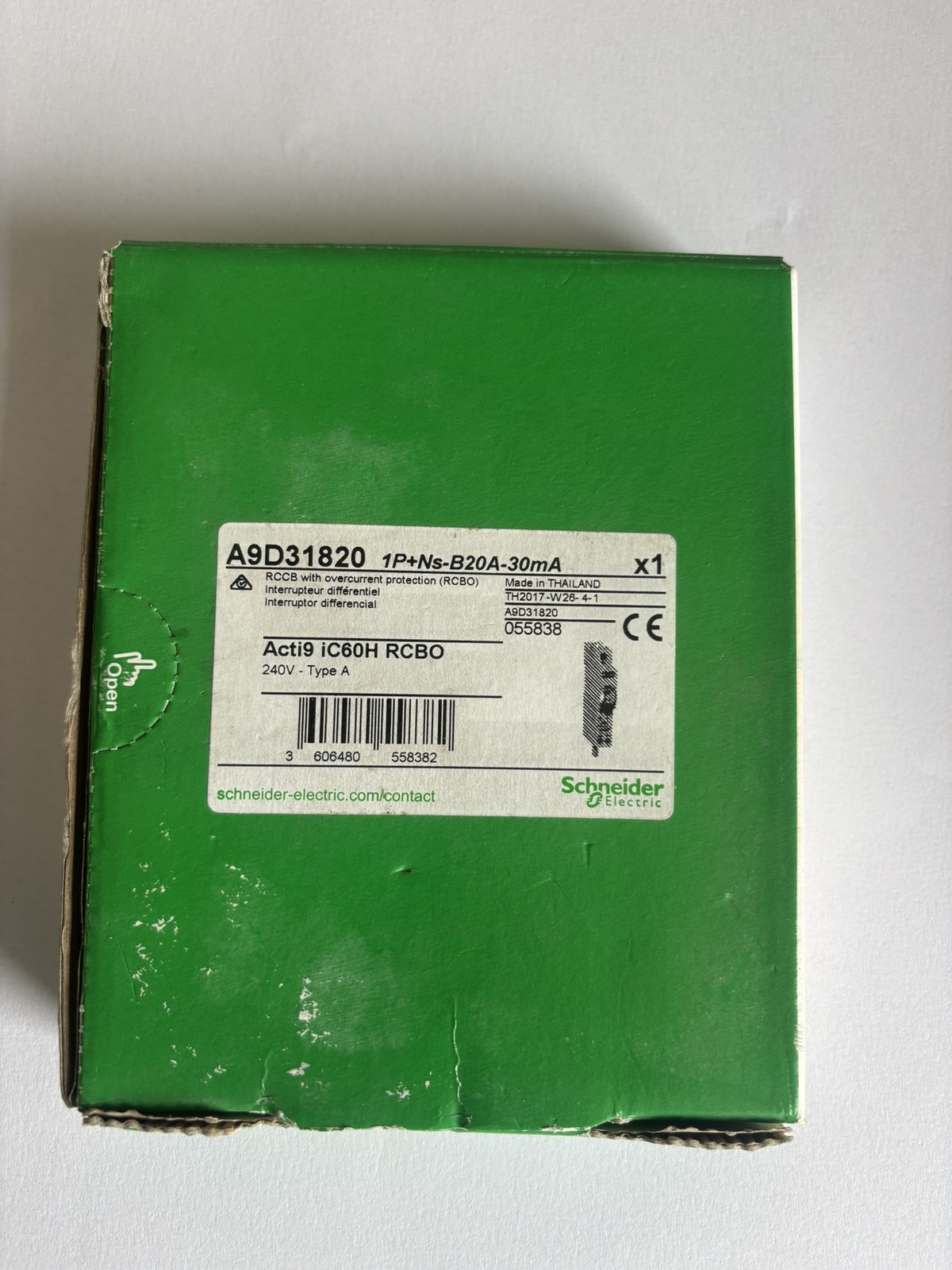

NEW SCHNEIDER IC60H A9D31820 B20 20 AMP 30mA 10KA SINGLE POLE RCBO

Name: NEW SCHNEIDER IC60H A9D31820 B20 20 AMP 30mA 10KA SINGLE POLE RCBO
Brand: Schneider Electric

Schneider Electric

Schneider Acti 9 - A9D31820 - 20a 30mA Type B Single Pole RCBO\n\nSchneider Part Code: A9D31820\n\nFrom the Acti 9 range\n\nClass A RCBO\n\nClass A RCBOs and RCDs are not sensitive to impulsive currents up to a peak of 250 A (8/20 wave form). They are particularly suitable for protecting systems in which the user equipment has electronic devices for rectifying the current or phase cutting adjustment of a physical quantity (speed, temperature, light intensity etc.) supplied directly by the mains without the insertion of transformers and insulated in class I (class II is, by definition, free of faults to earth). These devices may generate a pulsating fault current with DC components which the A type RCD can recognize.\n\nClass A devices are also suitable for Type AC applications.\n\nThe single module RCBO is an electronic unit rated at 10kA designed specifically for fitting into consumer units and distribution boards to give earth leakage protection to an individual circuit.\n\n20A - 2.
