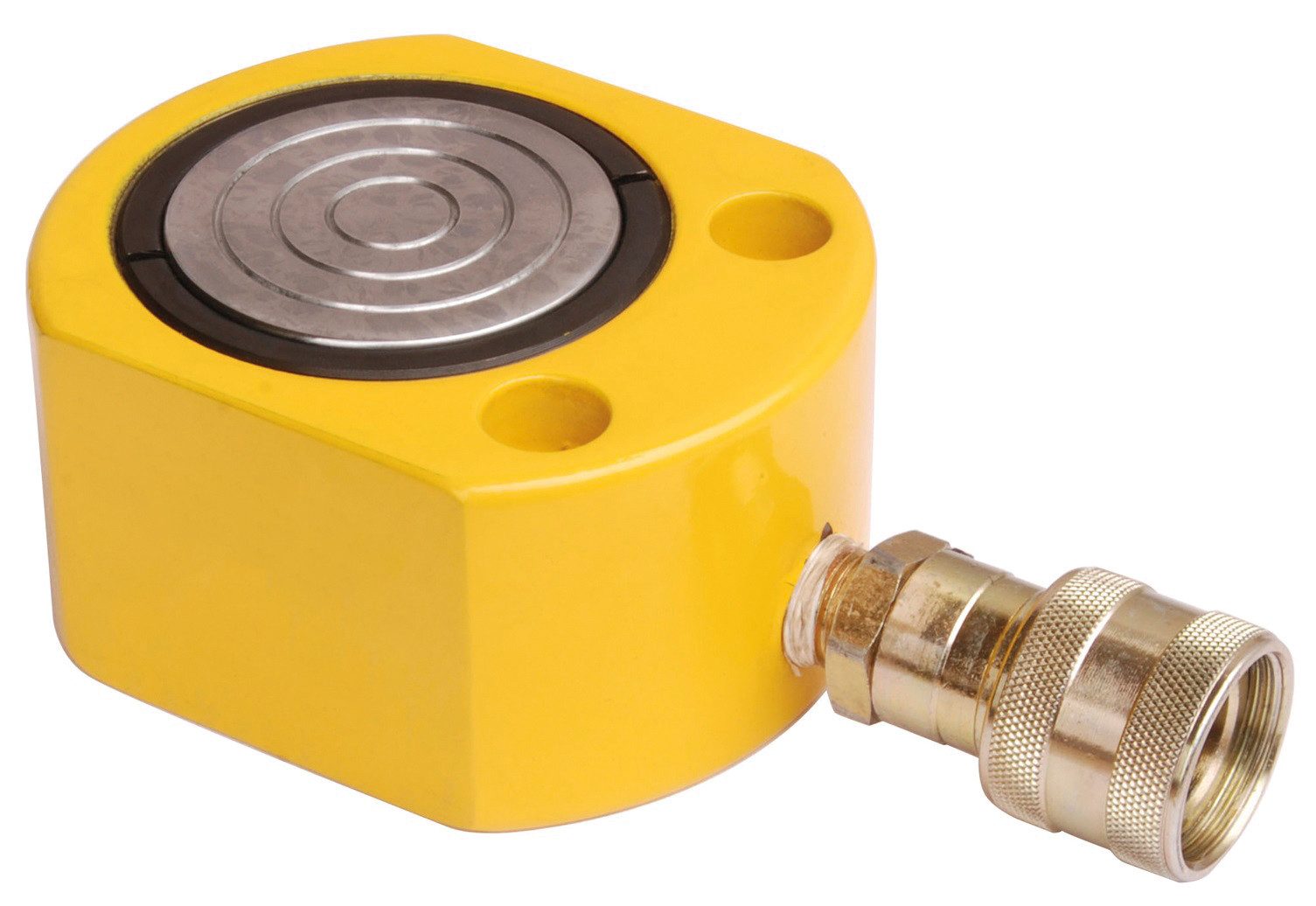

20 tonne 12mm Stroke Hydraulic Lifting Low Profile Pad Jack Ram Cylinder
LiftinGear
--Visit Shop\n\n--Feedback \n--About Us\n\n--Contact Us\n\n20 tonne 12mm Stroke Hydraulic Lifting \nLow Profile Pad Jack Ram Cylinder\n\nOur hydraulic pad jacks are ideal for lifting heavy loads that are extremely low to the ground. The low-profile pad jack design is capable of getting underneath objects with very little ground clearance. The hydraulic pad jacks body is designed with two mounting holes which enables fixing to machinery such as, fixtures, clamping jigs, spreader plates, etc., the plungers load contact area is also grooved to increase its horizontal grip.\n\nProduct Features\n\n--MODEL: HHYG-20B\n--Capacity 20 Tonne\n--Stroke 12mm\n--Closed Height 56mm\n--Width 60mm\n--Oil Capacity 34cc\n--Length Including Coupling 165mm\n--Product Weight 2.6kg\n--Chrome Plated Cylinder & Ram\n--Maximum Pressure 700 bar\n--Equipped with a Female Coupler\n--Ideal Where Space Is Restricted\n--Supplied Fully Tested with a 2 Year Warranty\n\nPlease note we.
