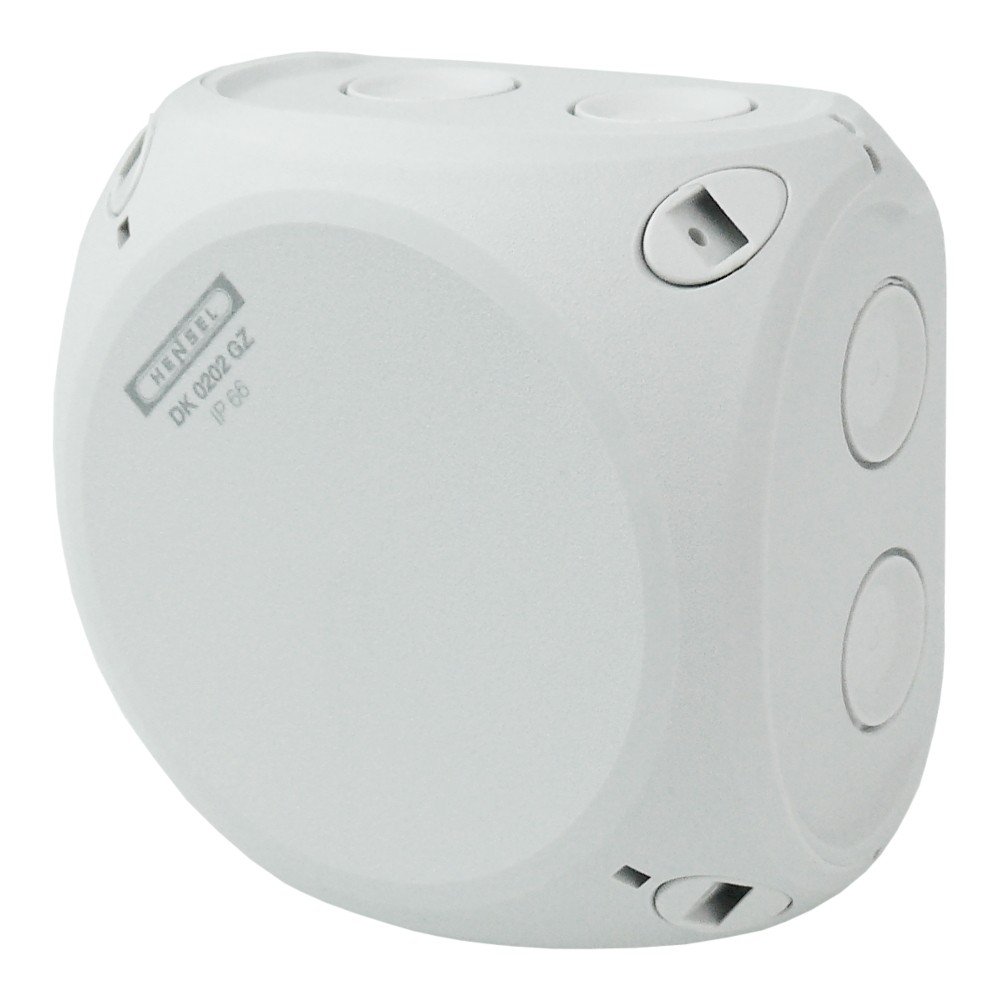

Junction Box 93x93x62 5x2.5mm² CU IP66 GLUE CASE DK 0202 GZ

Name: Junction Box 93x93x62 5x2.5mm² CU IP66 GLUE CASE DK 0202 GZ
Brand: HENSEL

HENSEL

DK 0202 GZ with terminal 1.5 – 2.5 Mm² CU 3 ~ IP66, with 5-Pin cable junction box, Hensel 5334 Application: Suitable for indoor and outdoor protected installation According to standards: DIN VDE 0100 part 737; Mounting: surface-mounted; Opening in the body: elastic sealing membrane; Number of Poles: 5, Number of the clamp: 10, ideal cable for each of the 5 pin: 8 x 0.75 mm² F, 6 x 1.5 mm² sol/F/F, 4 x 2.5 mm² sol, 2 x 4 mm² sol/F; Number of the elastic sealing membrane: 7. Sealing range elastic membrane: Diameter 6/15.0 mm; Number of cable inlets in the base: 1, Sealing range a cable inlet in the base: Ø 6-13.0 mm; Colour: grey, RAL 7035; Rated Insulation Voltage UI: 690 V AC/DC; Rated Current: 20 A; Clamping torque: 0.5 Nm, Material: PP; Degree of protection: IP66. Safety class: IK07 (2 joules); Ambient temperature: average of 24 hours against mechanical stress: + 35 °C from – 25 °C to + 40 °C; Relative humidity: 50 % at 40 °C 100 % at 25 °C. Fire protection in case of internal faults: Requirements for electrical equipment according to equipment standards and laws. Minimum requirements, glow wire test according to IEC 60695-2-11, 650 ° for housings and cable entries, 850 °C for live parts; Flammability conditions: Glow wire test: IEC 60695-2-11: 750 °C UL Subject 94: V-2 flame retardant self extinguishing., Manufacturer: Hensel
