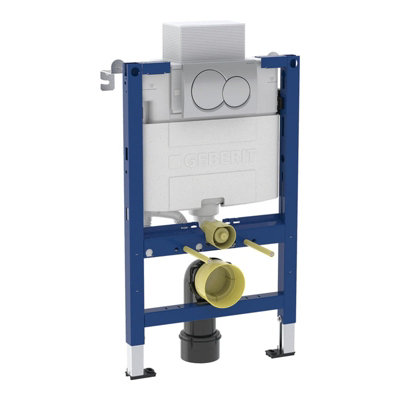

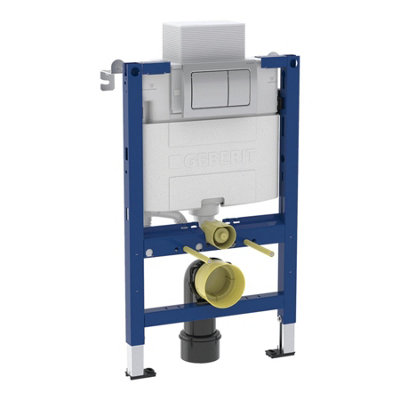

Geberit Blue Duo Fix Wall Hung Toilet Frame With Omega Cistern - 820Mm High

Geberit

Flush volume small adjustment range: 3-4 l Fastening for connection bend, sound-absorbing Maximum operating temperature water: 25C Minimum flow pressure for calculated flow rate 0.5 bar Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails Immediate post flush possible with factory setting Cistern fulfils standard requirements in accordance with EN14055, Class II Blue powder-coated self-supporting frame For wall-hung WCs with connection dimensions in accordance with EN 33:2011 For floor constructions: 0-20 cm Frame prepared for support brackets for WC ceramic appliances with small contact surfaces Frame with O 9mm drilling holes for fastening in wood frame construction Flush volume factory setting: 5.8 and 3 l Connection bend can be mounted without tools at different depths, adjustable range 45mm For drywall construction Flush volume large adjustment range: 4.5 / 6 / 7.5 l Tool-free installation and maintenance work on concealed cistern For wall-hung WCs with projection up to 62 cm Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. 2x threaded rods M12 Protection cover box for service opening (cut to length) protects against moisture and dirt Non-slip leg supports and Rotatable foot plates For installation in part-height Geberit Duofix system walls 2xwall anchors Fully insulated against condensation Flow pressure: 0.1-10 bar Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Please refer Installation Manuals PDF from below Application Protection box for service opening For installation in part-height pre-wall installations Connection set for WC O 90mm With fastening option for electrical connection Galvanized adjustable feet: 0-20 cm 2x protection plugs Calculated flow rate: 0.11 l/s Refer technical drawing for more specification Water supply connection on the left or rear left Adaptor socket made of PE-HD O 90 / 110 mm Comes with top or front actuation Water supply connection Rp 1/2" - R1/2", compatible with MF, with integrated angle stop valve and hand wheel Connection bend 90 made of PE-HD O 90mm Fastening material
