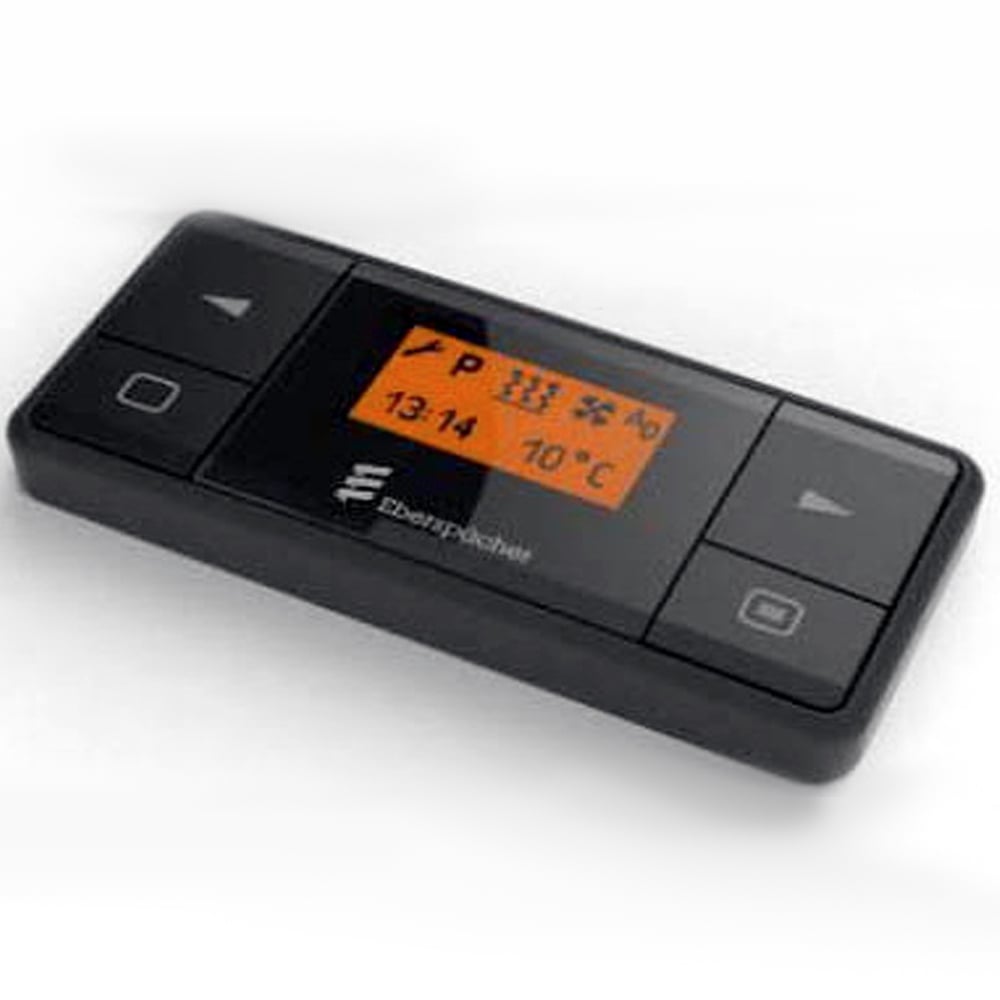

Eberspacher Grey/Red/Brown Heater Easystart 7 Day Timer | 221000341500

Eberspacher

Eberspacher timer for Airtronic and Hydronic heaters IMPORTANT information This is only compatible with Airtronic heaters fitted with the latest version control unit. These are identified by the H-Kit logo displayed on the heater dataplate as shown in image 2 above. Hydronic S3 water heaters do not require the H-Kit logo. If REMOTE TEMPERATURE sensing required please use specific Easystart temp sensor 221000342200 *Installation note. For Airtronic installations with the H-Kit logo, ensure the grey/red cable and the brown/white cable to the heater are linked together. Please also see wiring diagram image above. The Eberspacher EasyStart timer is a 7 day combination timer, suitable for both Eberspacher Airtronic air & Hydronic water heaters. Genuine Eberspacher EasyStart Timer 7 day combination timer Suitable for both 12 volt or 24 volt installations Comfortable room temperature control Surface Mountable for ease of installation Very compact dimensions: Width - 82 mm, Height - 37 mm, Depth - 12mm Supplied with the following; Mounting bracket Adhesive mounting pad Electrical connector housings & terminals Installation & operating instruction manuals Genuine Eberspacher 12 month warranty Compatible with the following Eberspacher air & water heaters Air heaters Eberspächer Airtronic D2 Eberspächer Airtronic D4 Eberspächer Airtronic D4S Eberspächer Airtronic D5 Water Heaters Eberspächer Hydronic S3 Eberspächer Hydronic II Eberspächer Hydronic II C Eberspächer Hydronic II Comfort Eberspächer Hydronic M II
