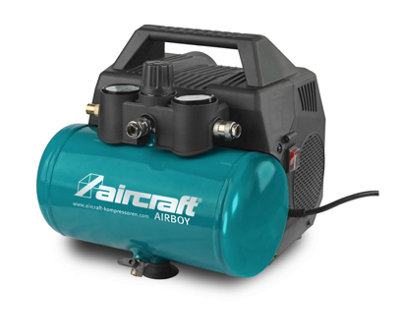

Aircraft Airboy 131 Air Compressor Oil Free 6Ltr 8 Bar 600W 240V from B&Q

Name: Aircraft Airboy 131 Air Compressor Oil Free 6Ltr 8 Bar 600W 240V from B&Q
Brand: Aircraft

Aircraft

Technical DataGeneral FeaturesMobile / Stationary: MobileDimensions and weightsLength (product) approx.: 345mmWidth/depth (product) approx.: 340mmHeight (product) approx.: 315mmNet weight approx.: 15.9kgElectrical DataSupply voltage: 230VMains frequency: 50HzDelivery power: 0.6kWDuty cylce drive motor: 50%Noise emissionSound power level Lw: 71dB(A)Explanation sound power level Lw: Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)Sound pressure level Lp: 49dB(A)Explanation sound pressure level Lp: Sound pressure level at 1 m distance according to DIN 45635 T 13CompressorCompressor system: WDSOil-free / oil-lubricated: Oil freeSuction capacity approx.: 107l/minFilling capacity approx.: 42l/minExplanation filling capacity: at 6 bar working pressureNumber of cylinders: 2Number of compressor stages: 1Compressor speed: 1450min¯¹Piston stroke: 5.8mmDiameter of piston: 63.7mmCompressed air tankMaximum pressure: 8barPressure vessel capacity: 6lTank vertical / horizontal: HorizontalEquipmentPressure regulation: Pressure regulatorAutomatic pressure switch: ✔Compressed air outlet: Two one-hand quick couplingsCondensate drain: Ball valvePressure vessel: Powder coatedCompressor base: Three suction cups.
