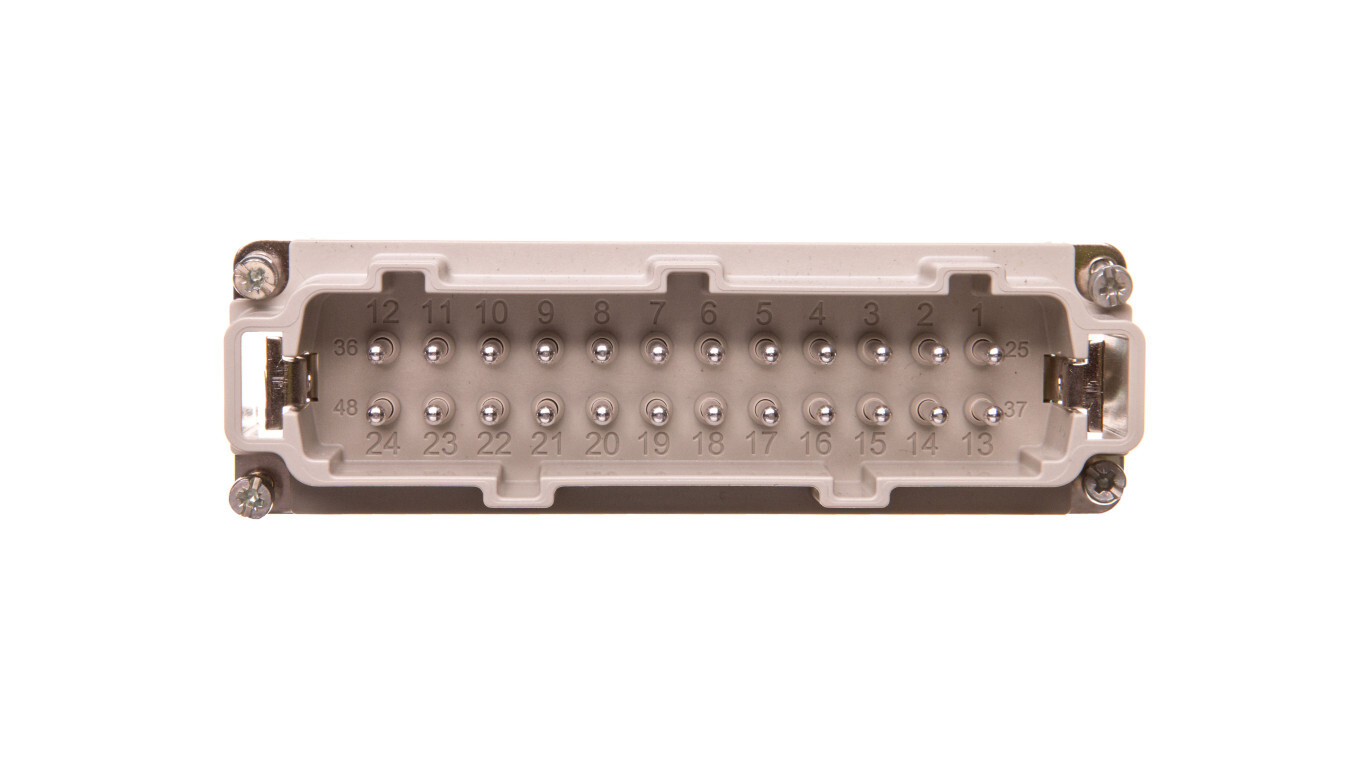

Connector insert 24P+PE male 16A 500V EPIC H-BE 24 SS 10204100 /T2UK
LAPP KABEL
Welcome to the Patkor store auction\nIn this auction we offer:\n\n1 Pcs, Brand New\nConnector insert 24P+PE male 16A 500V EPIC H-BE 24 SS 10204100 /T2UK\nParameters:\n\n--Housing material: Plastic\n-- Type of electrical connection: Screw connection\n-- Contact type: Pin/pin\n-- Plug/connector angle: 180\u00B0 (horizontal)\n-- Contact covering material: Silver\n-- With lock: No\n-- Degree of protection (IP), installed: IP65\n-- Cross-section of the connected single-wire cable [mm2] from: 0.5\n-- Cross-section of the connected single-wire cable [mm2] up to: 2.5\n-- Cross-section of the connected stranded cable without ferrule [mm2] from: 0.5\n-- Cross-section of the connected stranded cable without ferrule [mm2] up to: 2.5\n-- Operating temperature range [\u00B0C] from: -40\n-- Operating temperature range [\u00B0C] up to: 100\n-- Ambient temperature [\u00B0C] from: -40\n-- Ambient temperature [\u00B0C] up to: 100\n-- Cross-section of the connected stranded cable with ferrule [mm2] fromS
Compare prices (2 shops)
| shop | Price | Action |
|---|---|---|
|
20,30 GBP | Go to shop |
|
|
23,18 GBP | Go to shop |
Similar products
-
-
-
-

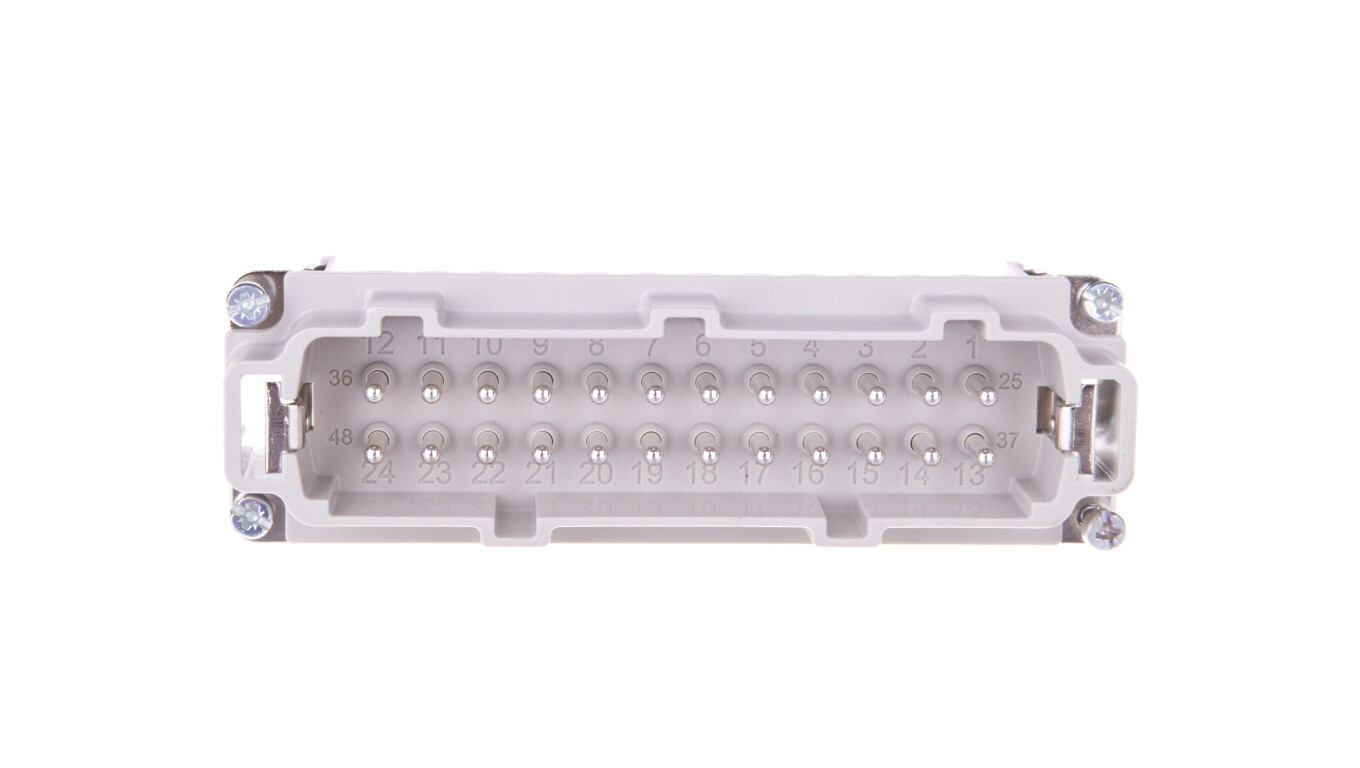

Male Plug Insert 24P+PE 16A 500V EPIC H-BE 24 SS 10196100
From 28,76 EUR -
Male Plug Insert 24P+PE 16A 500V EPIC H-BE 24 SS 10196000
From 30,29 EUR -
Male Plug Insert 24P+PE 16A 500V EPIC H-BE 24 SS 10204000
From 25,57 EUR
