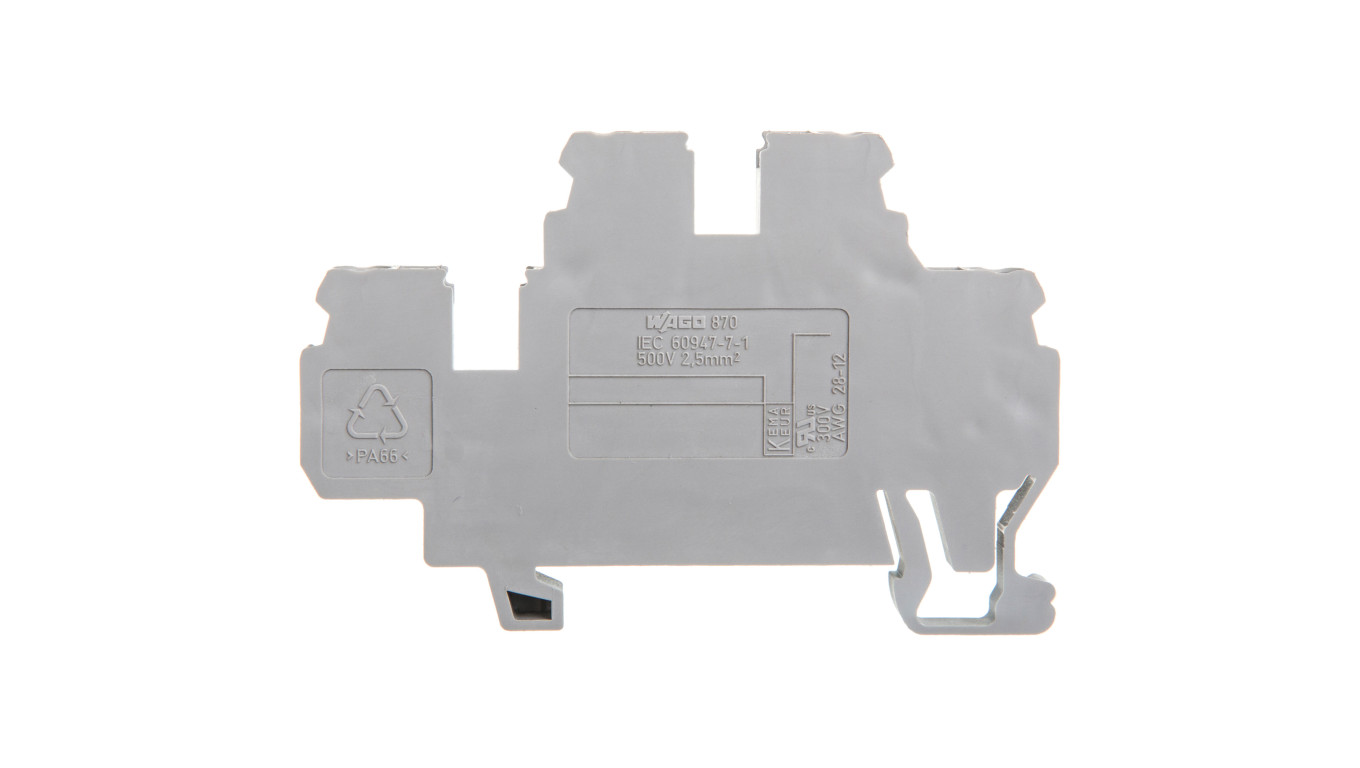

Fitting Two Tier L/N 2.5mm Grey 870-503

Name: Fitting Two Tier L/N 2.5mm Grey 870-503
Brand: WAGO

WAGO

Welcome to the Patkor store auction\nIn this auction we offer:\n\n1 Pcs, Brand New\nDouble-deck connector L / N 2.5mm gray 870-503 /T2UK\nParameters:\n\n--CN: 85369010\n-- Mounting method: DIN 35 mm mounting rail\n-- Grey colour\n-- Flammability class of the insulating material according to UL94: V0\n-- Internal floors bridged: Yes\n-- Electrical connection type 1: Spring clamp\n-- Electrical connection type 2: Spring clamp\n-- Connection Position: Top/Up\n-- Locking Plate Required: Yes\n-- Insulating element material: Thermoplastic\n-- Explosion-proof Ex-e - confirmed: No\n-- Length [mm]: 70\n-- Rated voltage [V]: 500\n-- Operating temperature range [\u00B0C]: 105\n-- Cross-section of the connected single-wire cable [mm2]: 0.08\n-- Cross-section of the connected stranded cable with ferrule [mm2]: 0.25\n-- Cross-section of the connected stranded cable without ferrule [mm2]: 0.08\n-- Cross-section of the connected multi-core cable [mm2]: 0.08\n-- Rated current In [A]: 24\n-- Number ofS
