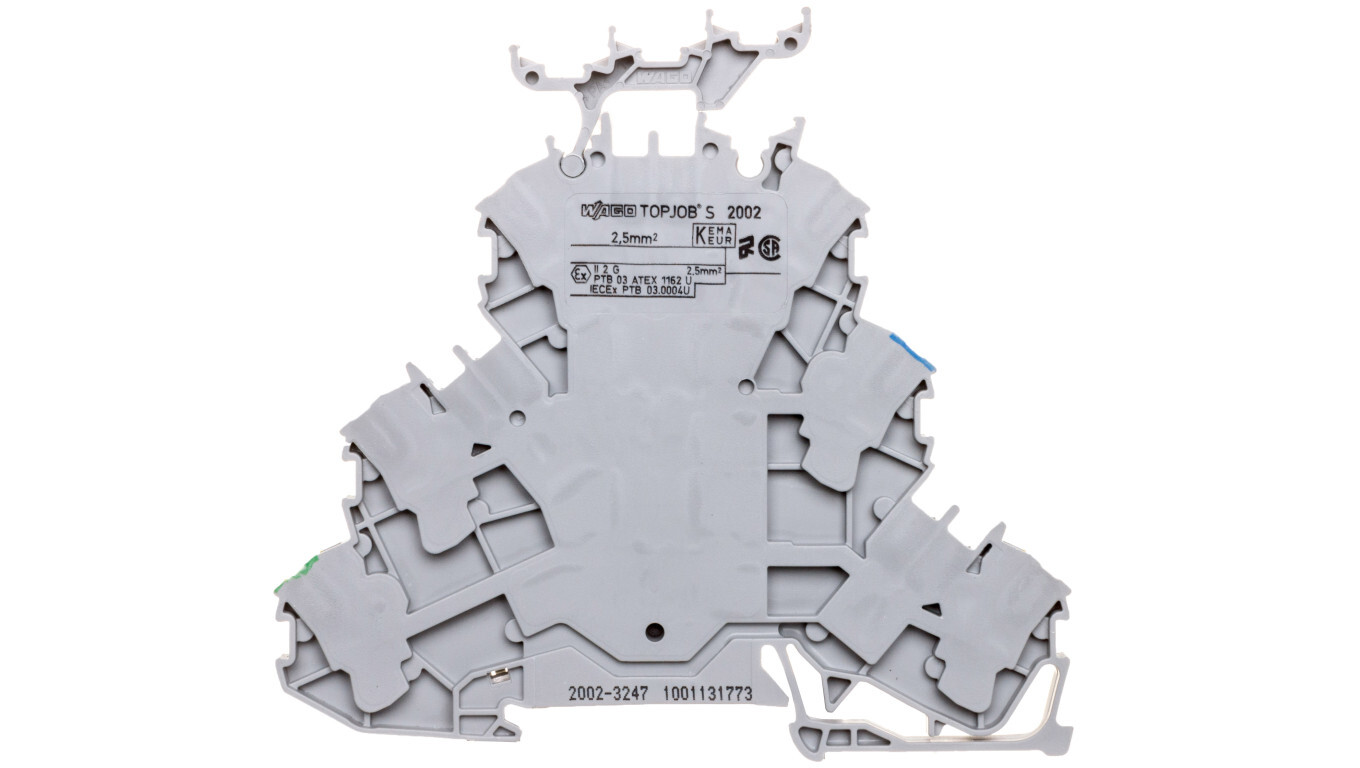

3-Deck Splice 2.5mm2 PE/N/L Gray TOPJOBS 2002-3247 /T2UK

Name: 3-Deck Splice 2.5mm2 PE/N/L Gray TOPJOBS 2002-3247 /T2UK
Brand: WAGO

WAGO

Welcome to the Patkor store auction\nIn this auction we offer:\n\n1 Pcs, Brand New\n3-Deck Splice 2.5mm2 PE/N/L Gray TOPJOBS 2002-3247 /T2UK\nParameters:\n\n--Mounting method: DIN 35 mm mounting rail\n-- Grey colour\n-- Flammability class of insulation material acc. UL 94:V0\n-- Inner floors bridged: Yes\n-- Type of electrical connection 1: Spring terminal\n-- Type of electrical connection 2: Spring terminal\n-- Connection position: Top / top\n-- Closing plate required: Yes\n-- Insulating element material: Thermoplastic\n-- Explosion-proof execution Ex-e - confirmed: No\n-- Length [mm]: 93.5\n-- Rated voltage [V]: 500\n-- Operating temperature range [\u00B0C]: 105\n-- Cross-section of connected single-wire cable [mm2]: 0.75\n-- Cross-section of the connected stranded wire with a ferrule [mm2]: 0.75\n-- Cross-section of the connected stranded wire without ferrule [mm2]: 0.25\n-- Cross-section of the connected multicore cable [mm2]: 0.25\n-- Rated current In [A]: 24\n-- Number of termiS
