Neutrik Men's Gold 3-Pole Xlr Plug, Panel Mounted, Plated Contacts
NEUTRIK
The NC3MD-LX-B from Neutrik is a 3-pole male XLR receptacle chassis connector with solder cup. This receptacle has compact metal housing with an ingenious duplex ground contact which offers excellent RF protection, shielding and excellent contact integrit Male connector-s retention bar replaces plastic design with metal version improves pull-out force Latch lock device, larger solder contacts for easier termination Optional connection to easily join pin1 to chassis ground D style housing provides installation compatibility with industry standard D mounting dimensions Polyamide (PA 6.6 30% GR) insert, zinc die-cast (ZnAl4Cu1) shell with black chromium plating Brass (CuZn35Pb2) contact with gold plating, steel Ck67 locking element Dielectric strength of 1.5kV DC, 16A rated current per contact and rated voltage 50V Lifetime 1000 mating cycles, maximum wire size of 14AWG (2.5mm²) UL ECBT2.E135070 certified Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
| CPC | 5,12 GBP | Go to shop |
Similar products
-
-

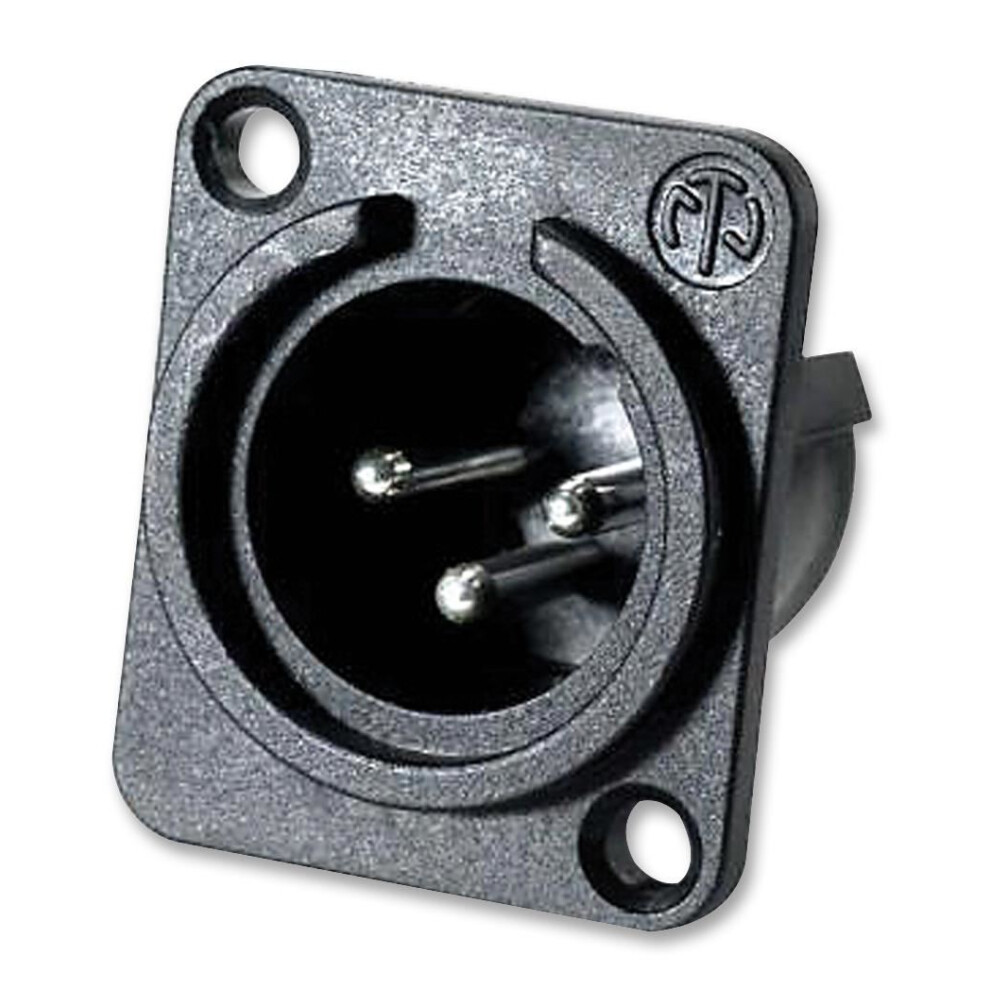

Neutrik - Xlr Panel Plug, 3 Pole, D Shell 642610980794
From 6,68 EUR -

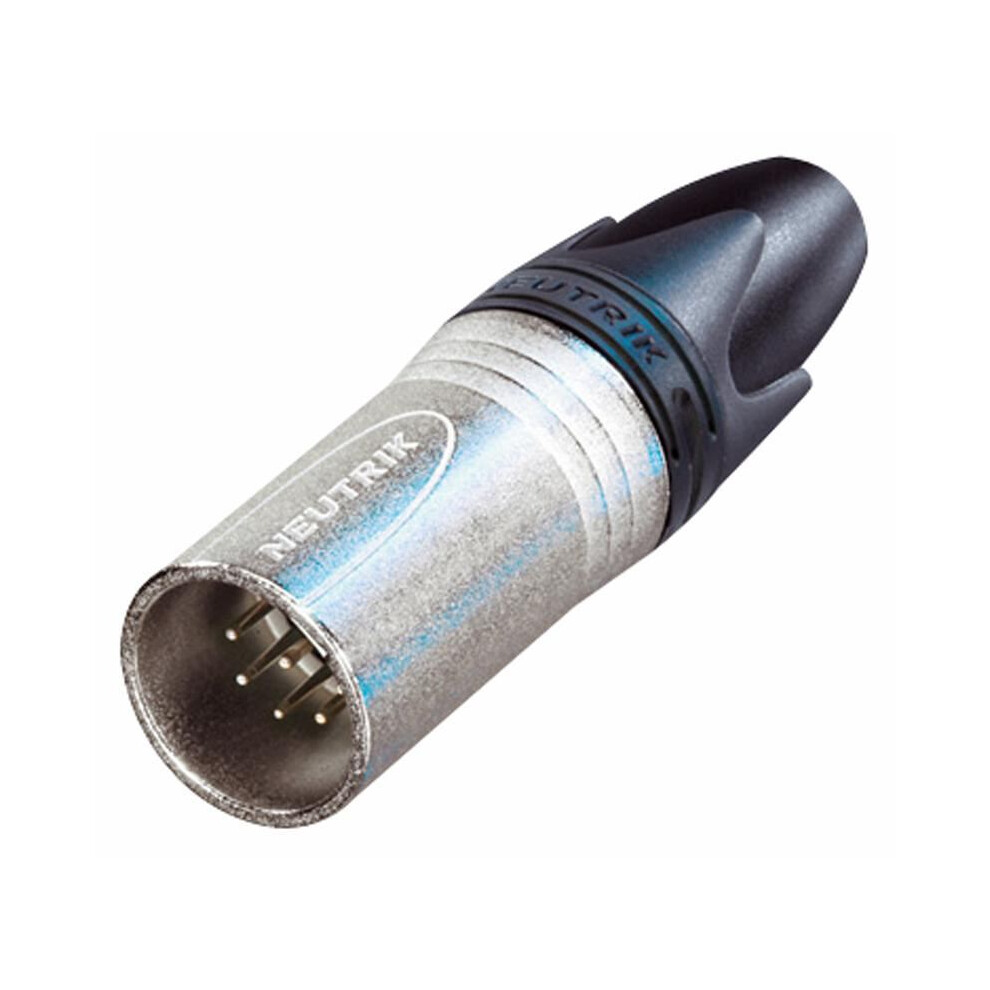

Neutrik - Xlr Plug, 7 Pole 3551984122013
