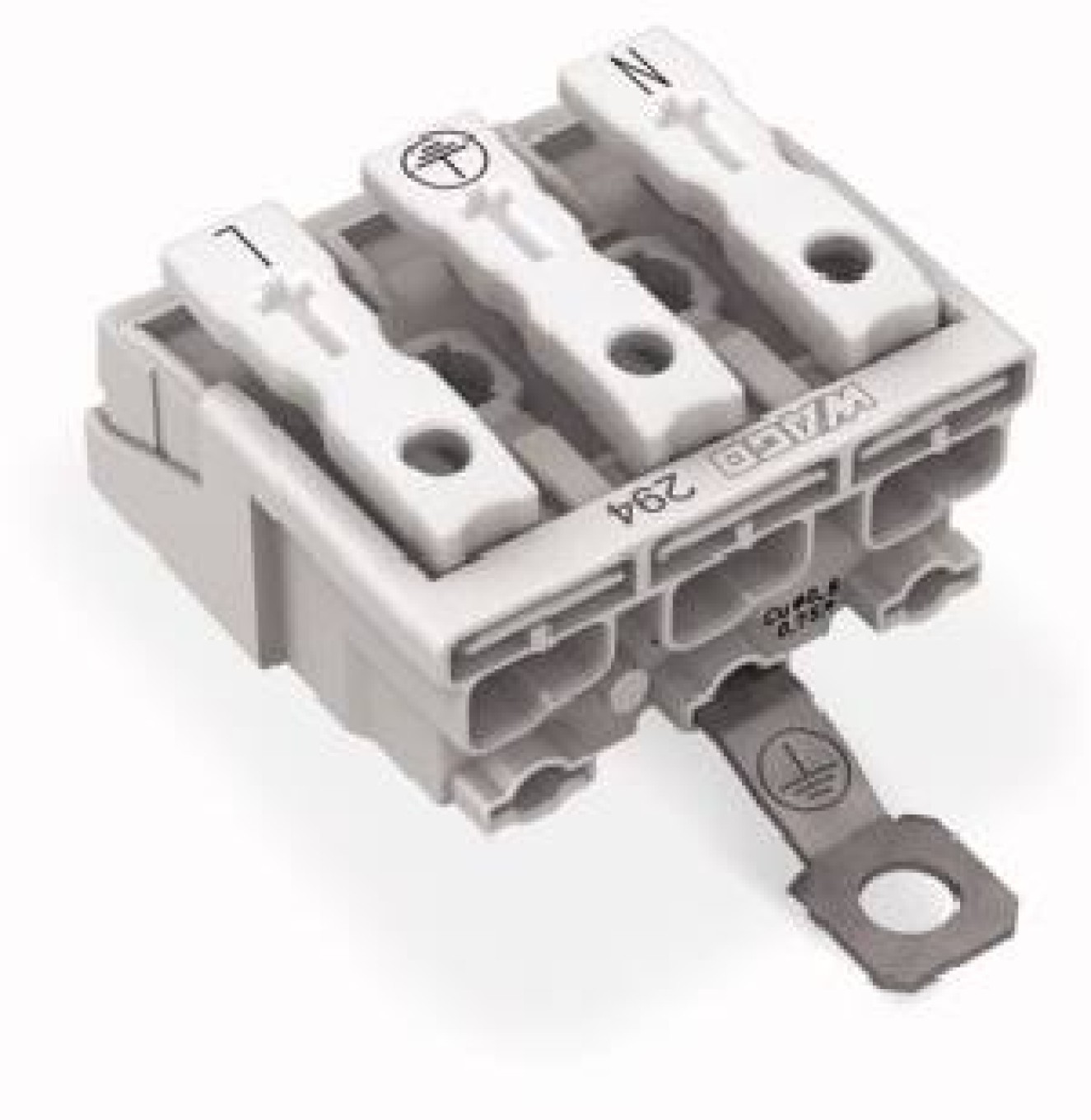

Power connector 3-pole without feet with PE contact 294-4413

Name: Power connector 3-pole without feet with PE contact 294-4413
Brand: WAGO

WAGO

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nPower connection 3-pole without feet with PE contact 294-4413\nWAGO\nMPN : 294-4413\nEAN: 4050821098041\nLength: 27.3\nRated Voltage: 500\nRated Current In: 24\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nExplosion-proof version Ex-e - confirmedNo\nLength [mm]27.3mm\nRated Voltage [V]500V\nOperating Temperature Range [\u00B0C]125\u00B0C\nCross section of connected single wire cable [mm2]0.5 mm\u00B2\nCross section of the connected rope wire rope with sleeve tip [mm2]0.5 mm\u00B2\nCross section of the connected rope wire without sleeve tip [mm2]0.5 mm\u00B2\nCross section of the connected multi-core cable [mm2]0.5 mm\u00B2\nNumber of Poles3\nRated Current In [A]24A\nNumber of Terminals Per Pole2\nWidth / Size of Grid [mm]30mm\nHeight with lowest mounting type [mm]17mm\nMounting TypeOther\nColourWhite\nFlammability class of the insulation material according to UL94V2\nTransp.
