Festo Sls-6-10-P-A 170486 Mini-Slide OVP, New
FESTO
FESTO Sls-6-10-p-a 170486 Mini Sled Boxed, NewThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.\n\nUntitled_1\n\nFESTO\n\nmini slide\n\n Type: SLS-6-10-PA-170486\n\nUnused, in original packaging, from a warehouse clearanceStroke 10mm\nPiston diameter 6 mm\nOperating mode drive unit yoke\nCushioning P: elastic cushioning rings/pads on both sides\nAny installation position\nBall cage guide\nStructural design yoke kinematics\nPosition detection for proximity switches\nOperating pressure 1.5 ... 10 bars\nFunctionality double-acting\nOperating medium compressed air according to ISO 8573-1:2010 [7:4:4]\nNote on the operating and control medium Lubricated operation possible (required for further operation)\nCorrosion resistance class KBK 0 - no corrosion stress\nAmbient temperature -20 ... 60\u2103\nImpact energy in the end positions 0.008 Nm\nMax. Force Fy 170 N\nMax. Force Fz 170 N\nMax. Torque Mx 0.6 Nm\nMax. T9
Compare prices (3 shops)
| shop | Price | Action |
|---|---|---|
|
165,98 GBP | Go to shop |
|
|
166,04 GBP | Go to shop |
| Tameson UK | 336,97 GBP | Go to shop |
Similar products
-
FESTO 170490, SLS-6-30-P-A, Mini slide
From 58,32 EUR -

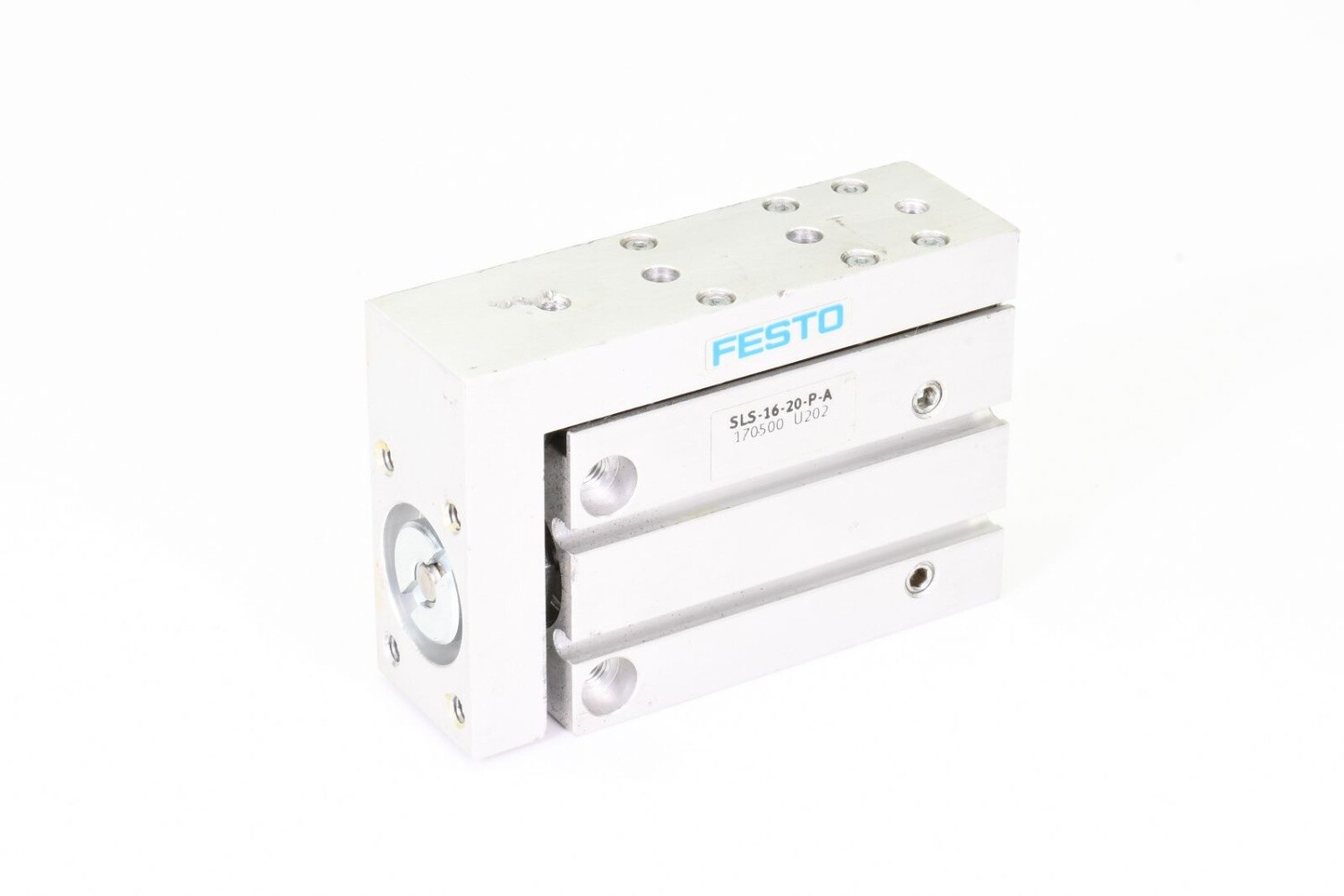

FESTO 170500, SLS-16-20-P-A, Mini slide
From 68,60 EUR -
Festo Mini Slide SLS-16-10-P-A 170498 Linear Slider
From 76,00 EUR -
Festo Mini Slide SLF-10-10-P-A 170506
From 54,73 EUR -
FESTO 170568, SLT-20-20-P-A, Mini slide
From 67,74 EUR -

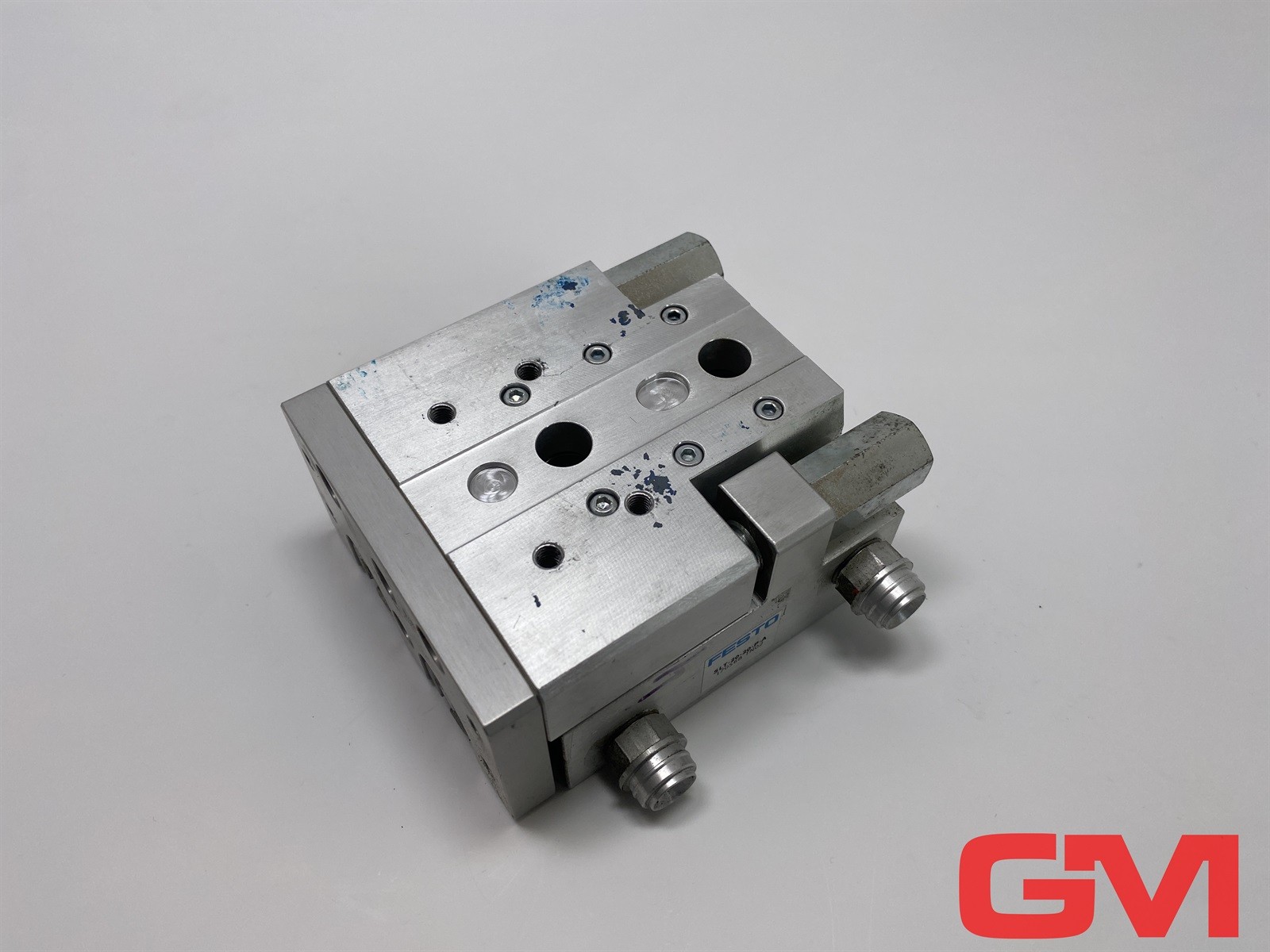

Festo Mini Slide SLT-20-20-P-A 170568 Linear Slide
