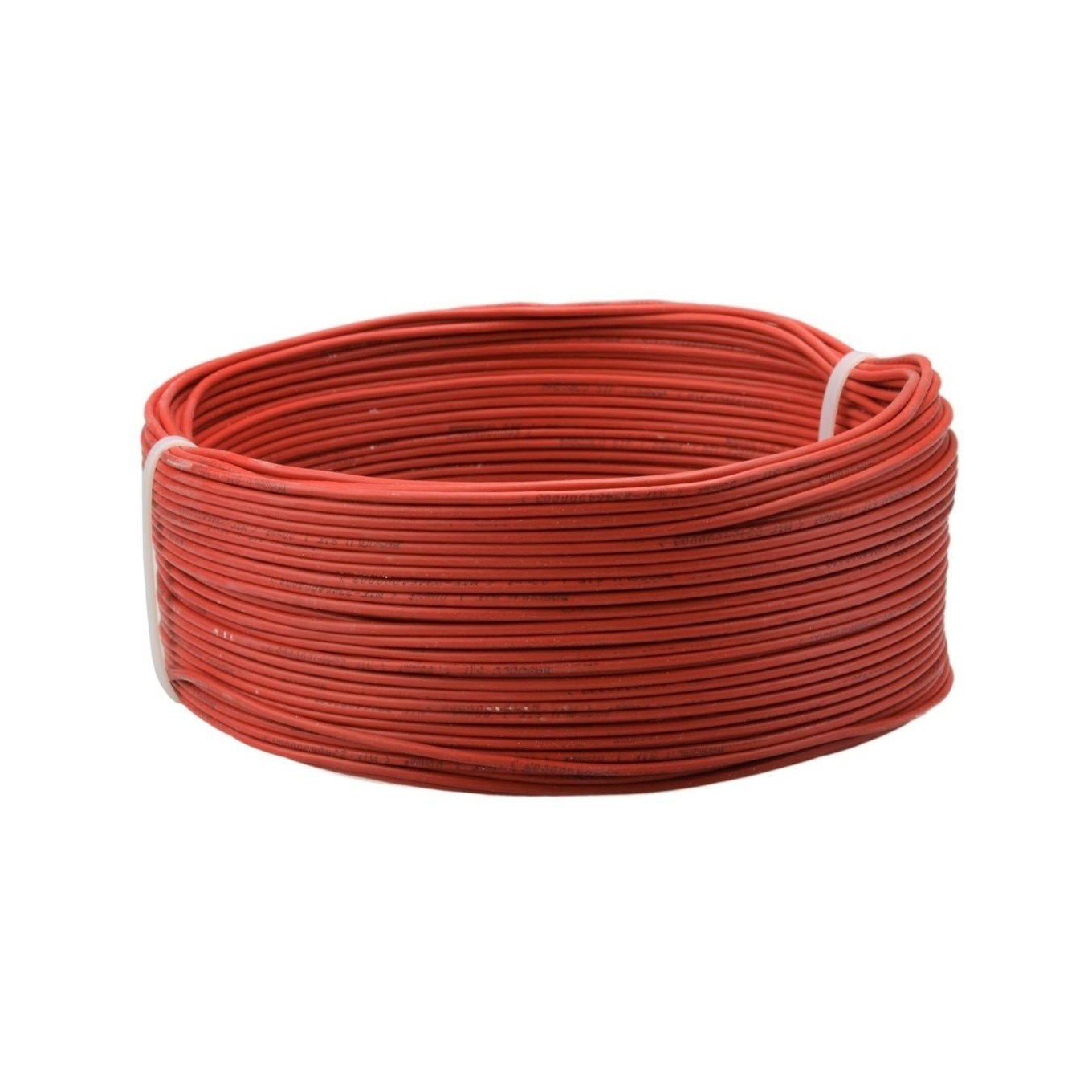

Silicone Cable SIF 180C 300/500V 1.5 Heat Resistant 2500081-100

Name: Silicone Cable SIF 180C 300/500V 1.5 Heat Resistant 2500081-100
Brand: TKD POLSKA

TKD POLSKA

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nSilicone cable SIF 180C 300/500V 1.5 heat resistant LSOH yellow-green TKD rope/100m/\nTKD POLAND\nMPN : 2500081-100\nEAN: 4056196375862\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nNominal cross section of core [mm\u00B2]1,5000 mm\u00B2\nColour of insulationGreen Yellow\n\nProduct Description\n\nManufacturer: TKD\n\nIndex: 2500081\n\nCable Type: SIF\n\nNumber and Cross Section of Cores: 1 x 1.5mm\u00B2\n\nApproximate Outer Diameter: 2.8mm\n\nOperating Voltage (Uo/U): 300/500V\n\nTest Voltage: 2000V\n\nCore resistance: at 20\u00B0 C according to IEC 60228 cl.5\n\nInsulation resistance: min. 2.0 G[ohm]/km\n\nMinimum Bend Radius (Moving Installation): 15 x \u2300\n\nMinimum bending radius (fixed installation): 10 x \u2300\n\nCopper Index: 14.4kg/km\n\nWeight: 20.0kg/km\n\nCore: flexible, multi-wire, twisted from galvanized soft copper wires, class 5 according to IEC 60228\n\n.
