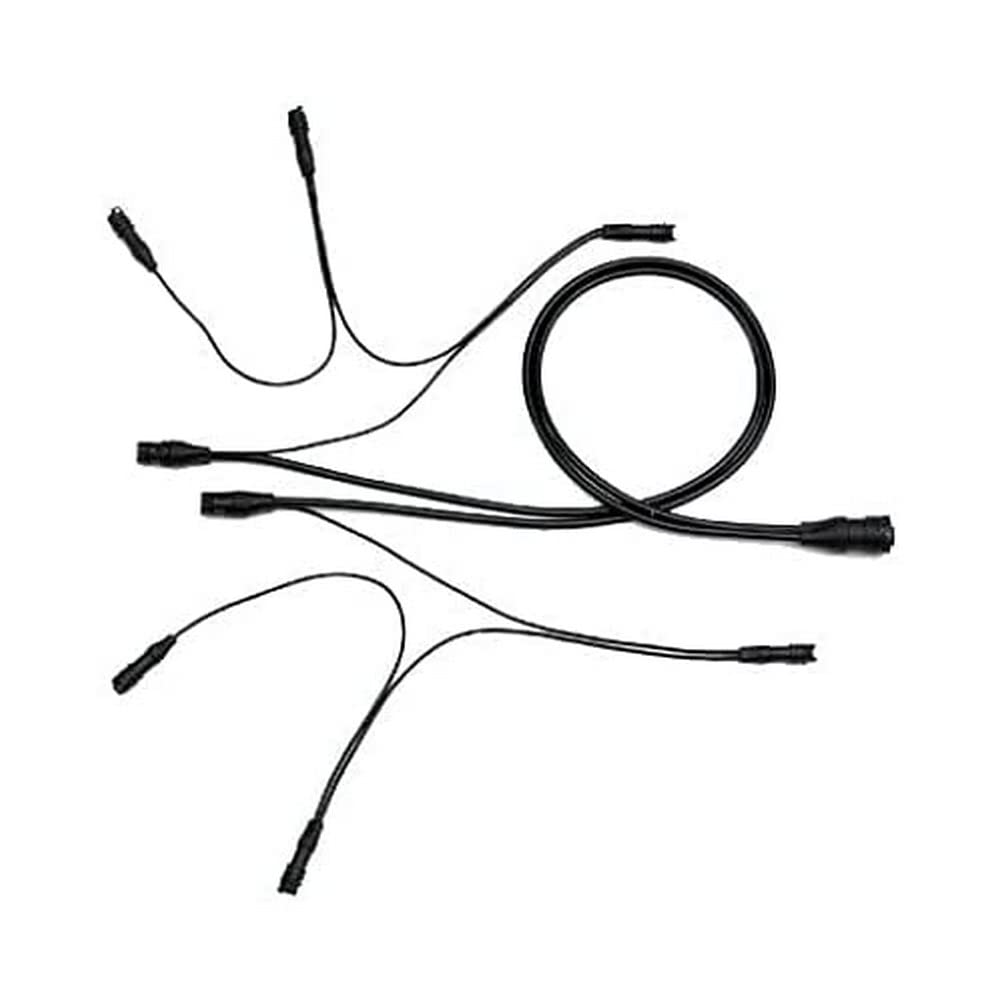

HELLA 8KA 340 819-001 Combination Rearlight Lamp Tail Lamp Harness Fits KEMPF

HELLA

Rear adapter cable with 15-pin EasyConn connector housing - suitable for the main supply cables of the series 8KA 340 815-..., 8KA 340 816-... and 8KA 340 817-.. With 2 x 7-core cables (6 x 1.0 mm² / 1 x 1.5 mm²), each 1.3 m long, outgoing on two 7-pole EasyConn receptacle housings for combination rearlights With 3 x 2-pole EasyConn plug housings on each side, connected by three cables (2 x 0.5 mm²) on each side, with a length of 500 mm between the individual plug housings Registration Type: ADR/GGVS approved
