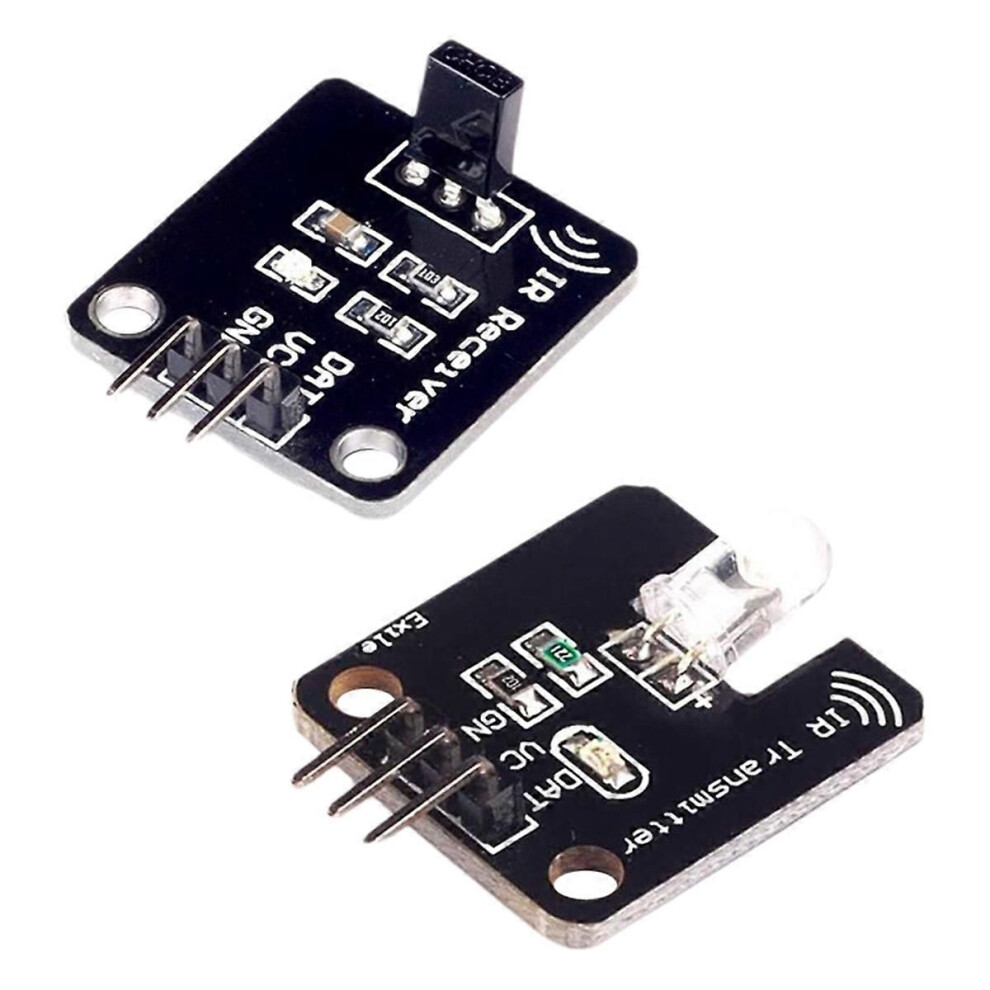

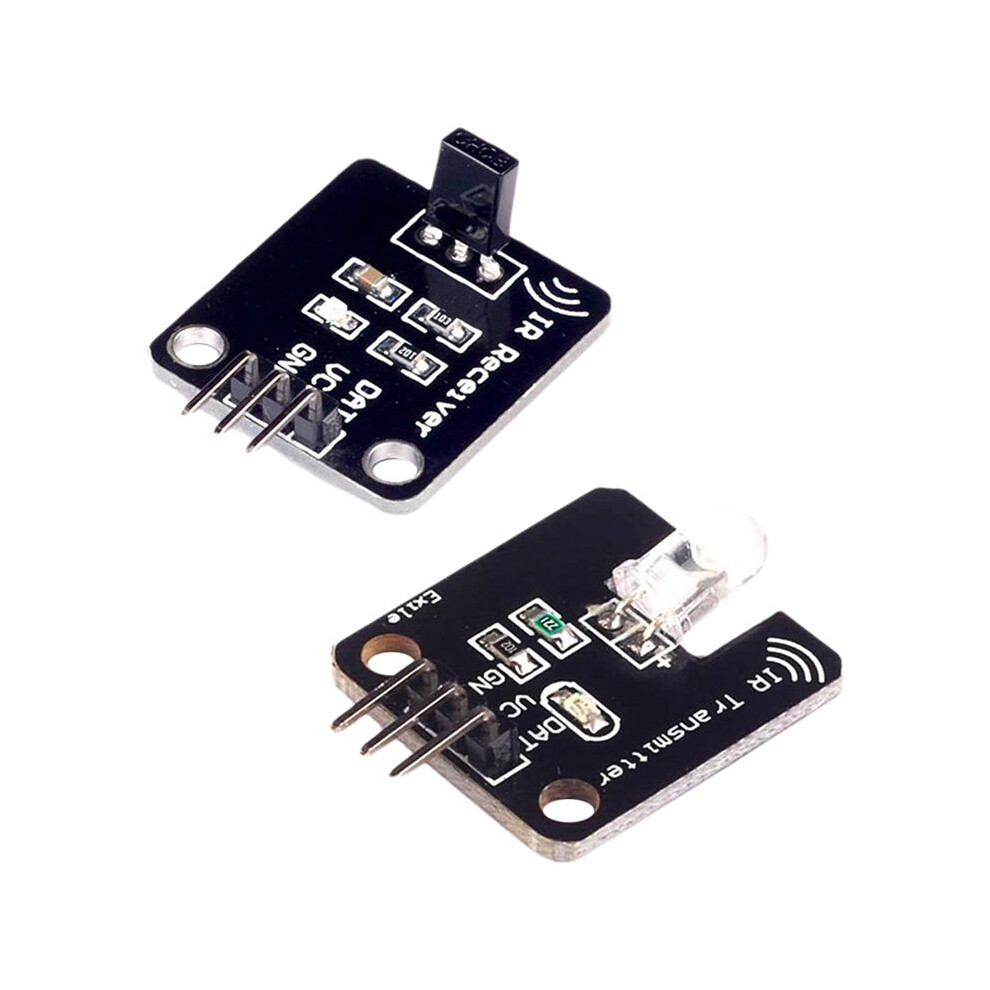

1set IR Infrared Transmitter Module Digital 38Khz Infrared Receiver Sensor6090
SODIAL
1set IR Infrared Transmitter Module Digital 38Khz Infrared Receiver Sensor6090\n\nNote:due to different production batches, the printing screen printing/appearance is different, which does not affect the use.\nColour:Black\n\n1. Infrared Transmitter module:\nSupply voltage: 5V\nWorking environment: -25\u2103-+85\u2103\nStorage temperature: -30\u2103-100\u2103\nWavelength: 940mm\nSignal type: Digital signal\nInfrared central wavelength: About 582nm-940nm\nInfrared emission distance: About 1. (5V 38khz)\nInfrared emission Angle: About 25 degrees\nWiring instructions:\nDAT: indicates the digital output interface\nVCC: positive terminal of the 5VDC power supply\nGND: The negative pole of the 5VDC power supply\n2. Infrared receiving module:\nSupply voltage: 5V\nWorking environment: -25\u2103-+85\u2103\nStorage temperature: -30\u2103-100\u2103\nCarrier frequency: 940mm\nSignal type: Digital signal\nInfrared emission distance: About 10 meters\nInfrared emission Angle: About 35 degrees\nWirie
