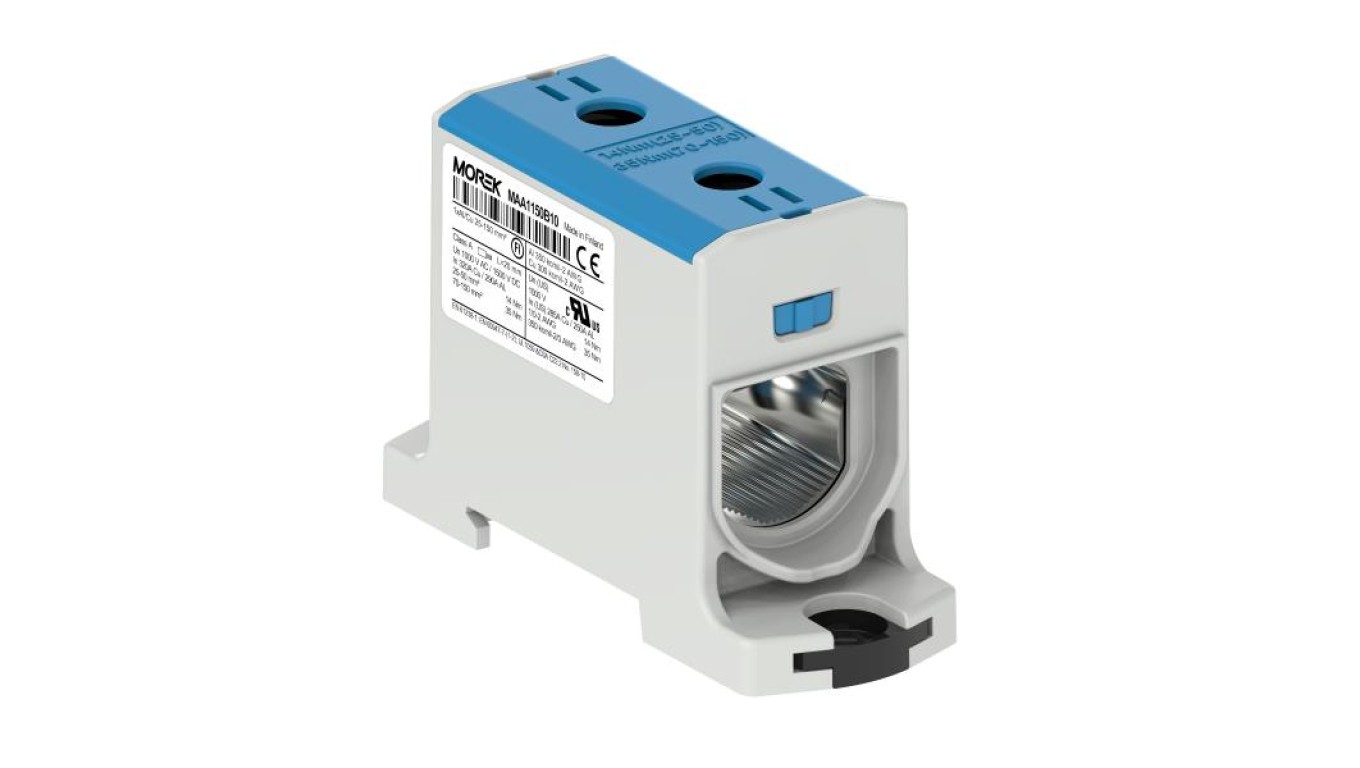

Fitting OTL150 Color Blue 1xAL/CU MAA CLAMPS MAA1150B10
MOREK
PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nFitting OTL150 color blue 1xAL/CU 25-150mm\u00B2 1000V AC/1500V DC universal terminal MAA1150B10\nMOREK\nMPN : MAA1150B10\nEAN: 4744397013958\nLength: 84\nHeight with lowest mounting type: 54\nWidth / Size of Grid: 31\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\ncross section of the connected single wire cable [mm2] to150mm\u00B2\nCross section of the connected single wire cable [mm2] from25mm\u00B2\nLength [mm]84mm\nHeight with lowest mounting type [mm]54mm\nWidth / Size of Grid [mm]31mm\nNumber of Levels1\nRated Current In [A]320A\nCross section of connected single wire cable [mm2]150mm\u00B2\nOperating Temperature Range [\u00B0C]80\u00B0C\nRated Voltage [V]1500V\nInsulating MaterialThermoplastic\nLocking plate requiredNo\nConnection PositionSide / Side\nType of electrical connection 2Fitting\nFlammability class of the insulation material according to UL94V0\nType of Ins.
Compare prices (2 shops)
| shop | Price | Action |
|---|---|---|
|
38,93 GBP | Go to shop |
|
|
59,99 GBP | Go to shop |
