Fitting OTL150-2 Color Gray 2xAl/Cu MAA CLAMPS MAA2150A10
MOREK
PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nCoupling OTL150-2 grey 2xAl/Cu 25-150mm 1000V AC/1500V DC universal terminal MAA2150A10\nMOREK\nMPN : MAA2150A10\nEAN: 4744397014191\nWidth / Size of Grid: 51\nHeight with lowest mounting type: 54\nRated Current In: 320\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nWidth / Size of Grid [mm]51mm\nMaterial of InsulationThermoplastic\nConnection PositionSide / Side\nFlammability class of the insulation material according to UL94V0\nType of InsulationThermoplastic\nColourGrey\nHeight with lowest mounting type [mm]54mm\nNumber of Levels1\nNumber of terminals per level4\nRated Current In [A]320A\nCross section of the connection cable without sleeve tip [mm2]150mm\u00B2\nCross section of the connected single wire cable [mm2]150mm\u00B2\nOperating Temperature Range [\u00B0C]90\u00B0C\nRated Voltage [V]1500V\nLength [mm]84mm\ncross section of the connected rope wire without sleeve t.
Compare prices (3 shops)
| shop | Price | Action |
|---|---|---|
|
55,62 GBP | Go to shop |
|
|
65,12 GBP | Go to shop |
|
|
95,95 GBP | Go to shop |
Similar products
-
Fitting OTL240-2 Color Red 2xAl/Cu MAA CLAMPS MAA2240R10
From 110,21 EUR -

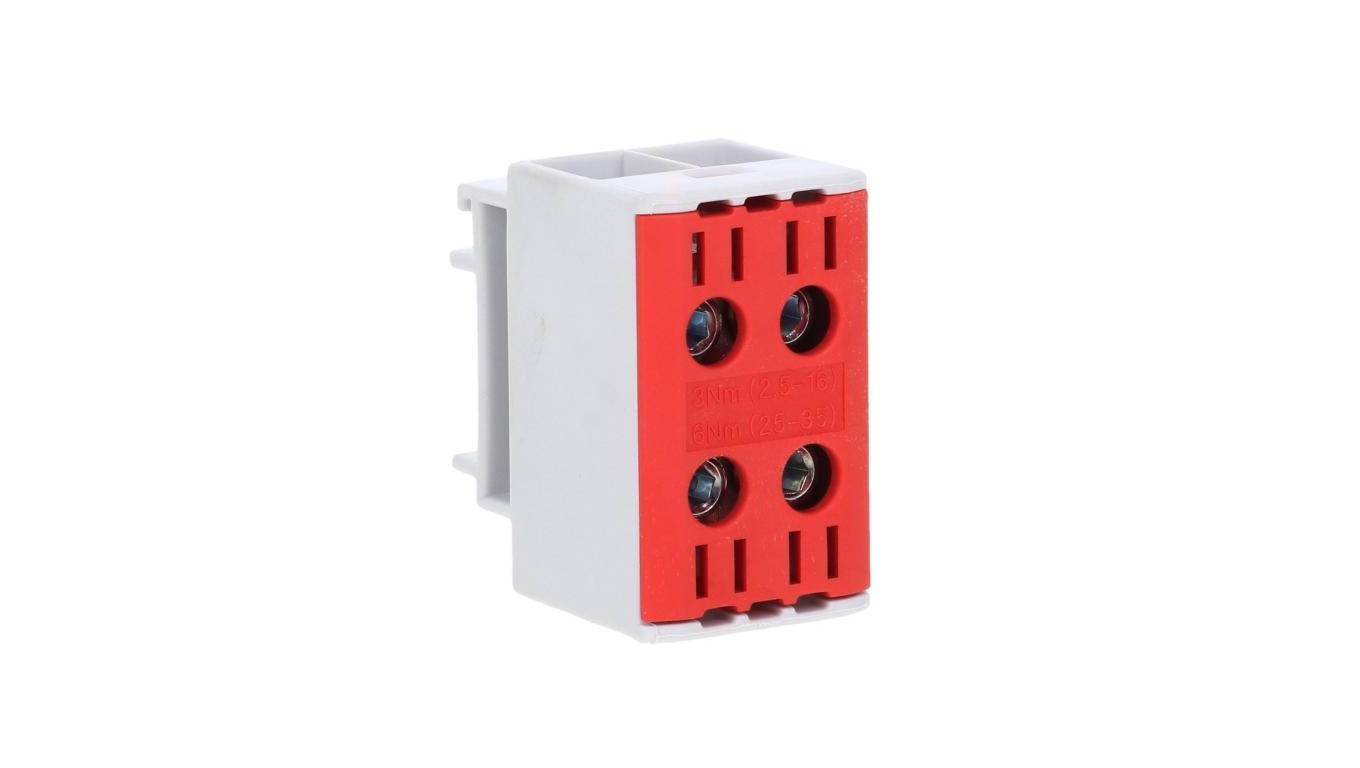

Fitting OTL35-2 Color Red 2xAl/Cu MAA CLAMPS MAA2035R10
