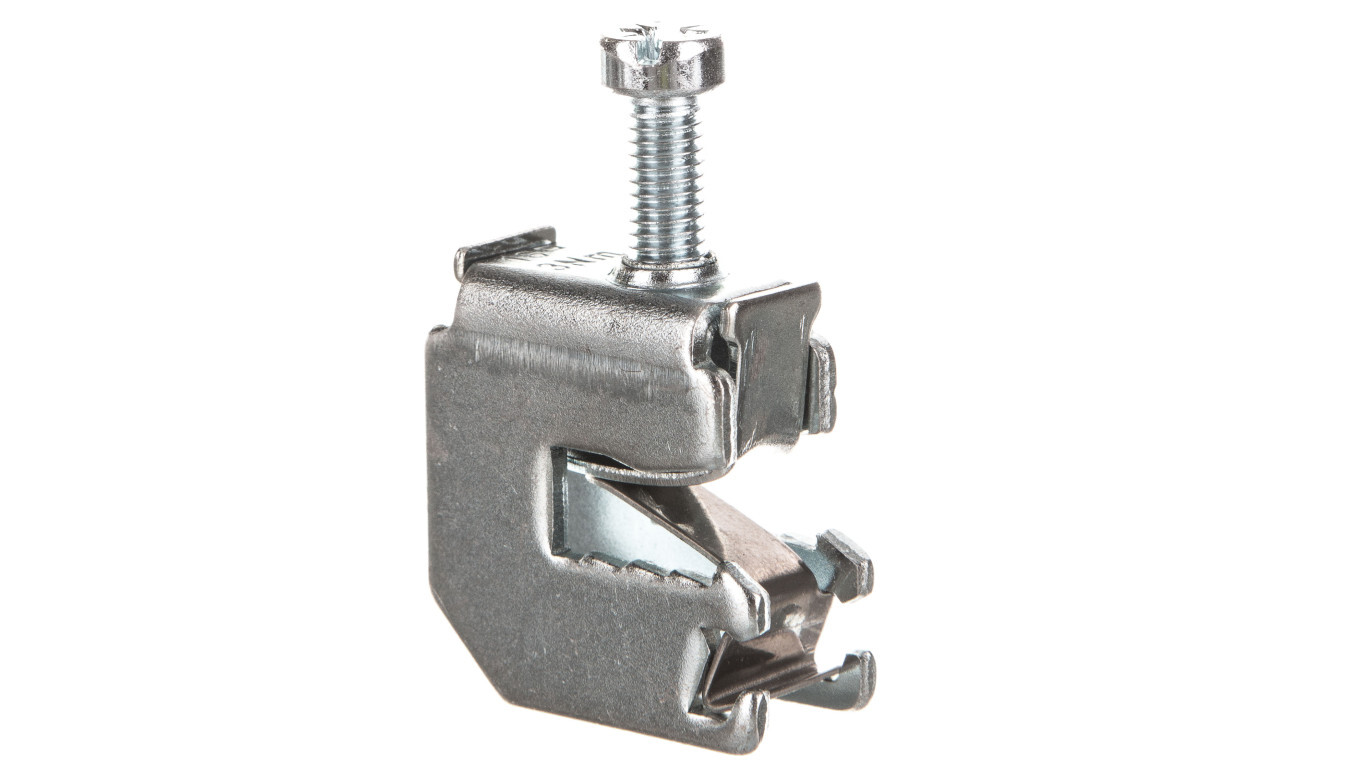

Busbar clamp 270A 690V 10mm 1.5-35mm2 MAE0351E15 /T2UK

Name: Busbar clamp 270A 690V 10mm 1.5-35mm2 MAE0351E15 /T2UK
Brand: MOREK

MOREK

Welcome to the Patkor store auction\nIn this auction we offer:\n\n1 Pcs, Brand New\nBusbar clamp 270A 690V 10mm 1.5-35mm2 MAE0351E15 /T2UK\nParameters:\n\n--Suitable for: Flat track\n-- Busbar thickness [mm] from: 10\n-- Busbar thickness [mm] up to: 10\n-- Maximum conductor cross-section [mm2]: 35\n-- Maximum rated operational current Ie [A]: 270\n\nMAE-E rail clamps are designed for mounting on copper bars with a thickness of 5 or 10 mm, enabling the fixing of wires up to 185 mm\u00B2 depending on the different types, or flexible Moflex bars up to 10x20 mm. The body and screw of the clamps are made of steel (grade 11) and zinc plated. The compression spring is made of stainless steel. The hex head on the terminals (except MAE 16E) allows the screws to be tightened using a hex key with a slotted blade or a Phillips screwdriver. Advantages \u2022 Easy and quick installation on the rail \u2022 Ideal for mounting on existing distribution systems \u2022 Ensures perfect electrical contactS
