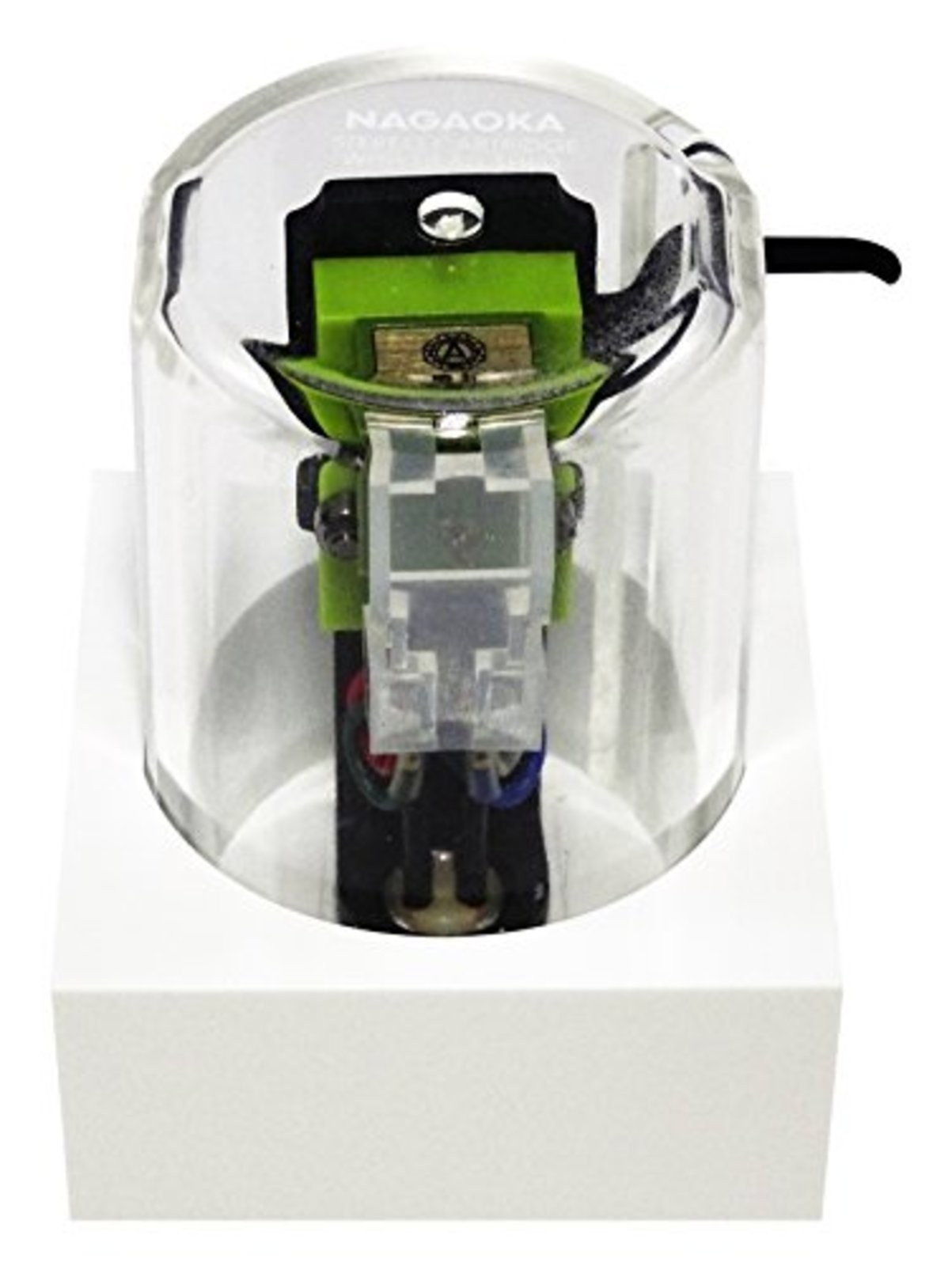

Nagaoka cartridges MP-150H w/headshell curing taper cantilever elliptical F/S

NAGAOKA

Nagaoka cartridges MP-150H w/headshell curing taper cantilever elliptical F/S\nThis product data sheet is originally written in English.\n\nNagaoka cartridges MP-150H w/headshell curing taper cantilever elliptical F/S Product description:\nCuring processing taper Canti-lever oval tip (tip).\nMP type stereo cartridge (with headshell)\nOutput voltage:4.5mV (5 cm / sec) frequency response: 20 Hz ~ 20 KHz channel separation: 24 dB (1 KHz) channel balance:1.5dB below\nLoad resistance: 47 K ohm load 100pf cantilever: curing process tapered aluminum alloy needle: 0.4 x 0.7 mil elliptical, diamond\nWith headshell with proper tracking force:1.5~2.0g cartridge weight:6.5g weight:15.9g\nWarranty and\nCountry of origin: Japan\n-MP-150 specifications-output voltage: 4.5 mV (5 cm / sec) frequency response: 20 Hz-20 KHz channel separation: 24 dB (1 KHz) channel balance: 1.5 DB load resistance: 47 K ohm load 100pf cantilever: curing process tapered aluminum alloy needle 0.4 x 0.7 mil elliptical-dia.
