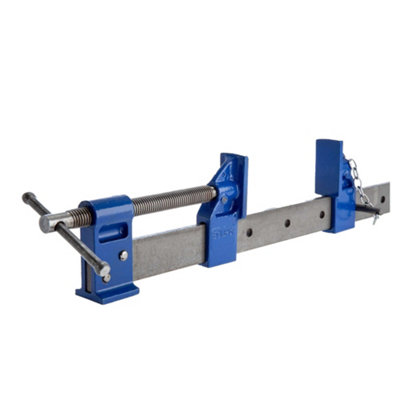

Eclipse Esc48 48" Sash Clamp

Name: Eclipse Esc48 48" Sash Clamp
Brand: Eclipse

Eclipse

Eclipse ESC48 Sash Clamp 48” / 1220mm The Eclipse ESC48 Sash Clamp boasts a twin-start rolled Acme thread for quick and smooth pressure application to your workpiece. With a clamping capacity of 48 inches (1220mm) and a bar length of 54 inches (1370mm), this robust clamp is ideal for a wide range of woodworking applications, including gluing large pieces of wood and furniture. Its ductile head and slide are guaranteed unbreakable, while the steel bar provides maximum tensile and yield strength, achieving an average clamping force of up to 500kg (1100lbs). The slightly tapered jaws ensure perfectly parallel clamping. Features Ideal for gluing large pieces of wood and furniture Steel bar offers maximum tensile and yield strength; average clamping force up to 500kg (1100lbs) Unbreakable ductile head and slide Tommy bar will bend before the clamp becomes overstressed Twin-start rolled Acme thread for quick and smooth pressure application Flat-bottomed head and slide for self-supporting stability Slightly tapered jaws for perfectly parallel clamping Slide secured by a solid steel pin Specifications Size: 48in / 1220mm Bar Length: 54in / 1370mm Clamping Capacity: 48in / 1220mm Average Clamping Force: 500kg (1100lbs)
