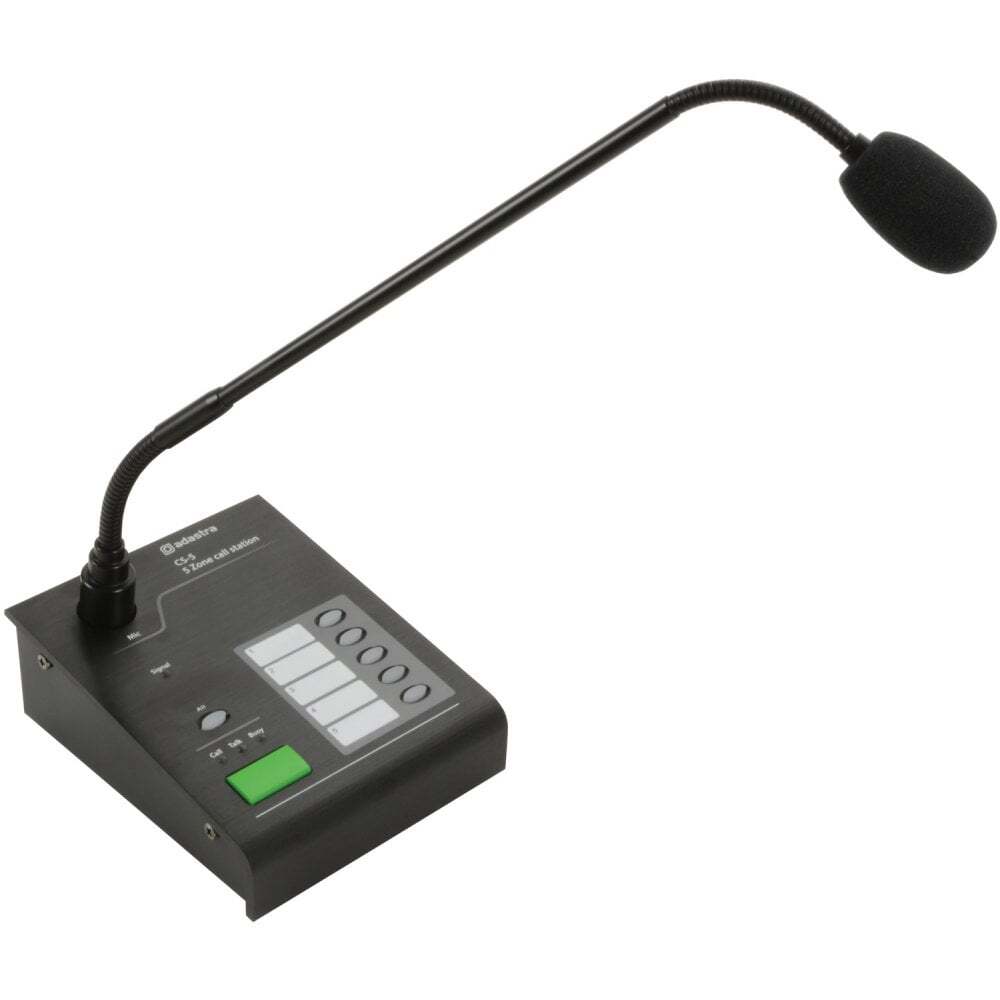

Adastra CS-5 Call Station for RZ45 Audio Matrix

Adastra

A paging microphone with call station base, to be used with the RZ45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. Includes an RJ45 patch cable to connect the mic and audio matrix, conveniently passing signal and power via one CAT5 lead.\n\n--For use with the RZ45 audio matrix (953.045UK sold separately)\n\n--Assignable to individual or multiple zones\n\n--8 selectable chime settings\n\n--3.5mm AUX input\n\n--Up to 1km remote wiring over CAT5\n\n--Supplied with 1m RJ45 patch lead\n\n--Power supply 24Vdc, 500mA from RJ45 or optional adaptor\n\n--Max. connection length100m (CAT5 cable) or 1km with optional 24Vdc adaptor\n\n--CapsuleBack electret condenser\n\n--Polar pattern Cardioid\n\n--ControlsAux/Mg
