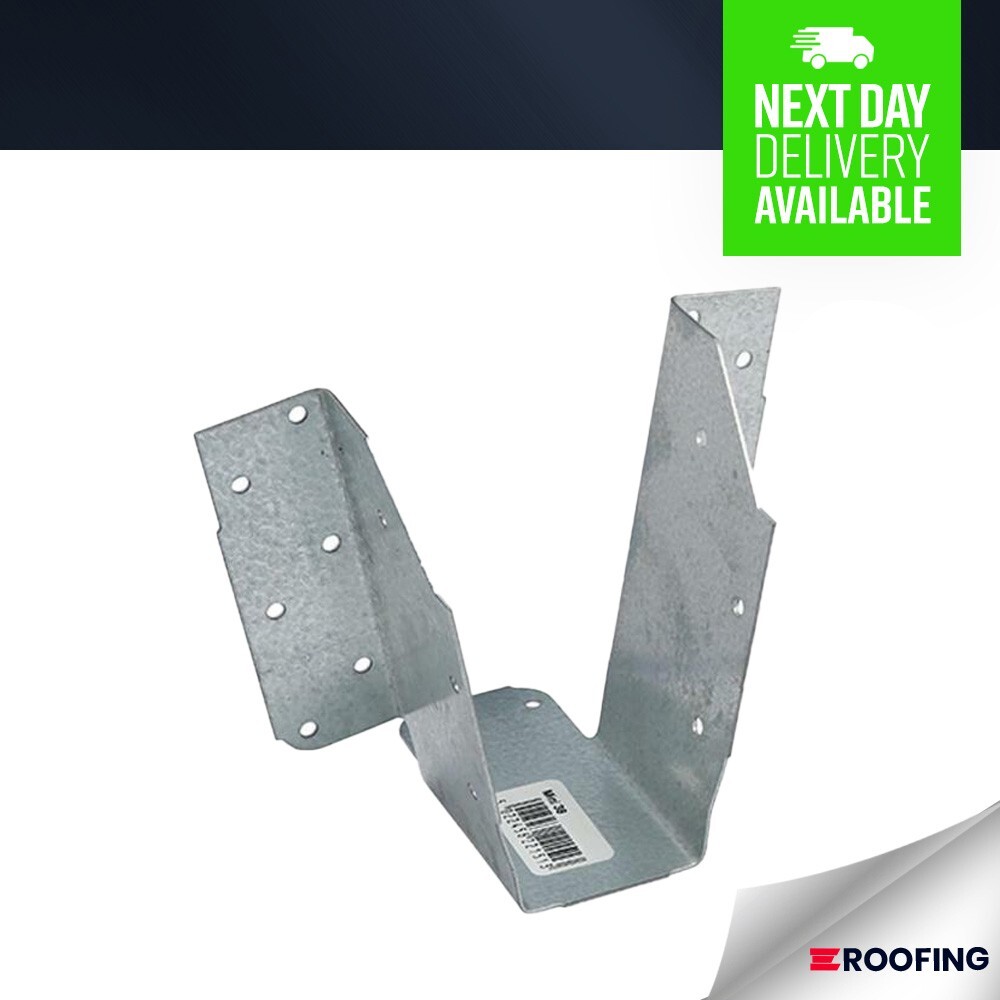

Timco Light Timber Hangers – Mini – Galvanised - 38 X 75–100Mm (20 Pack)

TIMCO

Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Manufactured from pre-galvanised steel for corrosion resistance, with a tag on the base to help avoid rotation for a more stable, consistent fix.. Key Features. Mini timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).. Suitable for ceiling joists, decking and trimmers.. Pre-galvanised / galvanised carbon steel for corrosion resistance.. Anti-rotation tag on the base helps avoid hanger rotation.. Conforms to Eurocode 5 and service class 2.. To suit joists: 38 x 75–100mm.. Bearing (B): 50mm.. 14 nail holes (to suit 3.75mm nails).. 1mm thickness.. Safe working load (BS 5268): 4.17kN (short) / 3.97kN (medium) / 3.47kN (long).. Supplied as a single unit (MOQ 20).. Typical Applications. Light-duty timber framing connections for loft hatches.. Decking and small timber support work.. Ceiling joists and trimmers where a compact hanger is needed.. Specifications. Finish. Galvanised. Material. Carbon Steel. Type. Mini. Joist size (W x H). 38 x 75 to 100mm. W (mm). 38. H (mm). 72. Bearing B (mm). 50. Thickness (mm). 1. Nail holes (3.75mm). 14. Approval. BS 5268. Eurocode / Service class. Eurocode 5 / Service class 2. Safe working load (kN) – Short term. 4.17. Safe working load (kN) – Medium term. 3.97. Safe working load (kN) – Long term. 3.47. Corrosion rating (1–5). 2 – Occasionally damp/wet, rural and sheltered areas. Pack type. Unit. Pack quantity. 1 Each. Packs Received. 20. Carton quantity (packs). 100. Pack dimensions (L x W x H). 50 x 38 x 72mm. Pack weight. 0.09kg
