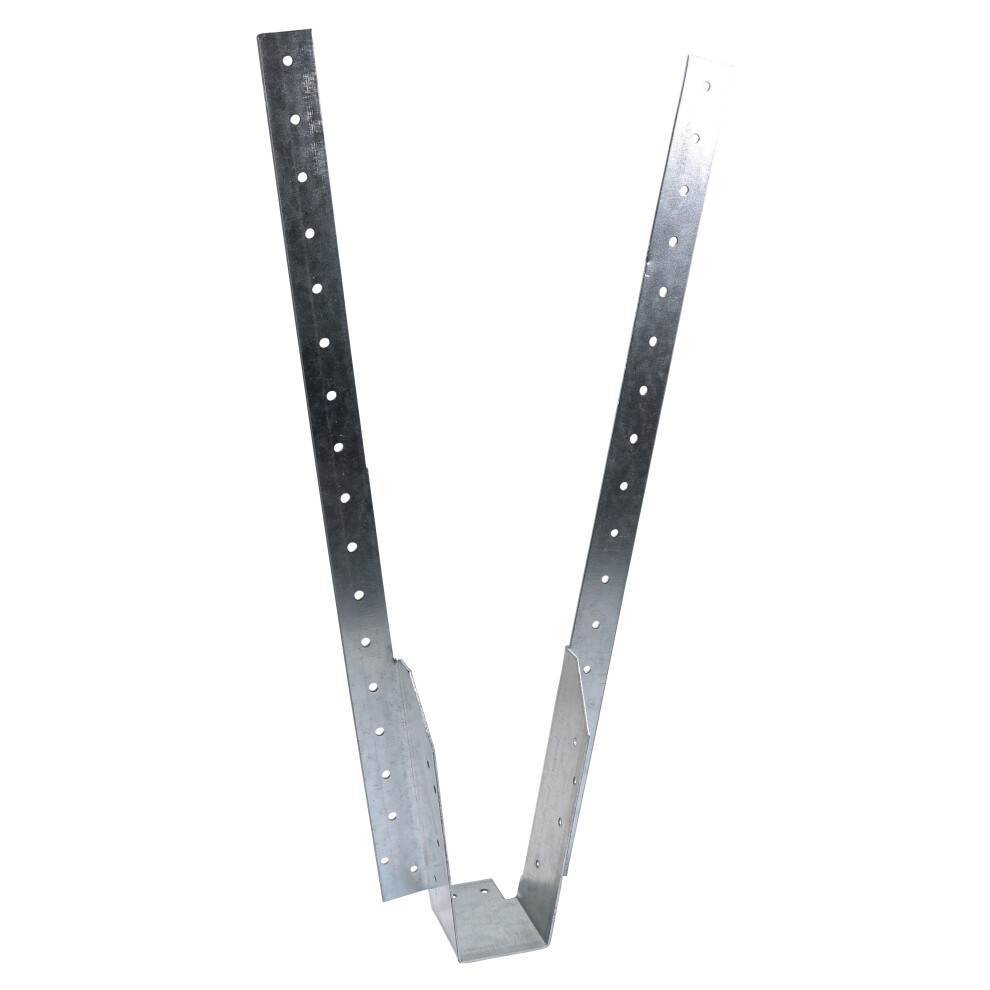

TimcoTimber HangersLong LegGalvanised (Size 44 X 150 To 2501 Each) from B&Q

Timco

Designed as a simple solution for timber-to-timber connections such as joists and stairwell trimming. This standard timber hanger has increased leg length so 150mm widths can take up to a 225mm deep joist, and is manufactured from pre-galvanised steel to give a high level of corrosion resistance.. Key Features. Standard timber hanger for timber-to-timber connections (joists and stairwell trimming).. Manufactured from pre-galvanised carbon steel with a galvanised finish.. Increased leg length to suit joist depths up to 225mm.. Conforms to Eurocode 5 and service class 2.. To suit joists: 150 x 100 to 225mm.. 50mm bearing (B) for consistent support.. 32 fixing holes (to suit 3.75mm nails).. Safe working load (BS 5268): 7.72kN (short) / 7.35kN (medium) / 6.43kN (long).. Supplied as a single unit (MOQ 10).. Typical Applications. Supporting floor joists and timber members in timber frameworks.. Stairwell trimming and general timber trimming work.. General construction and refurbishment where a quick, consistent joist connection is required.. Specifications. Finish. Galvanised. Type. Standard. Material. Carbon Steel. Joist size (W x H). 150 x 100 to 225mm. W (mm). 150. Leg L (mm). 300. Bearing B (mm). 50. Thickness (mm). 1. Nail holes (3.75mm). 32. Approval. BS 5268. Eurocode / Service class. Eurocode 5 / Service class 2. Corrosion rating (1–5). 2 – Occasionally damp/wet, rural and sheltered areas. Safe working load (kN) – Short term. 7.72. Safe working load (kN) – Medium term. 7.35. Safe working load (kN) – Long term. 6.43. Pack type. Unit. Pack quantity. 1 Each. Packs Received. 10. Pack dimensions (L x W x H). 50 x 150 x 300mm. Pack weight. 0.25kg
