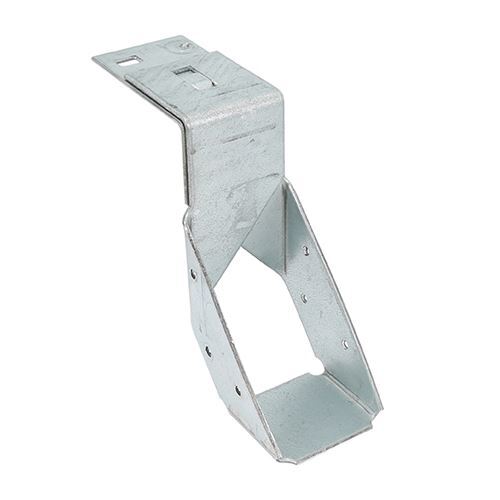

Timco - Single Piece Masonry Hangers - Galvanised (Size 47 x 125 - 1 Each)

Timco

Designed to support 47 x 125mm timber joists from brick or block walls. This single piece masonry hanger can be built into new masonry or used for renovation work by raking out existing brickwork, giving a secure and consistent joist bearing with a clean, dependable finish.. Key Features. Designed for supporting timber joists from brick or block walls.. Galvanised (pre-galvanised) steel for corrosion resistance.. Conforms to Eurocode 6 and service class 2.. Manufactured to EN 845-1:2013.. Straight top flange design.. No welds for strong, consistent construction.. Safe working load: 5.4kN (BS5628).. Characteristic value: 9.7kN (Eurocode 6).. 6 nail holes (to suit 3.75mm nails) for secure fixing.. Supplied as a single unit (MOQ 10).. Typical Applications. Supporting floor joists built into brickwork and blockwork.. New-build masonry where hangers are built-in during construction.. Refurb work where existing masonry is raked out to install the hanger.. General timber-to-masonry support where a consistent joist bearing is required.. Specifications. Product. Single Piece Masonry Hanger – Galvanised. Product code. 47125MH. Joist size (W x H). 47 x 125mm. Width (W). 50mm. Height (H). 125mm. Bearing (B). 80mm. Thickness (T). 2.4mm. Nail holes. 6 (to suit 3.75mm nails). Safe working load. 5.4kN. Characteristic value (Eurocode 6). 9.7kN. Material. Carbon Steel. Finish. Galvanised. Corrosion rating (1–5). 2 – Occasionally damp/wet, rural and sheltered areas. Pack type. Unit. Pack quantity. 1 Each. Packs Received. 10. Packs per carton. 10. Pack dimensions (L x W x H). 80 x 47 x 125mm. Pack weight. 0.380kg
