Relay 12V DPDT 8A Finder 4052 7012 0000 15A C/O Contacts x 2 pcb / plug in

Name: Relay 12V DPDT 8A Finder 4052 7012 0000 15A C/O Contacts x 2 pcb / plug in
Brand: Finder

Finder

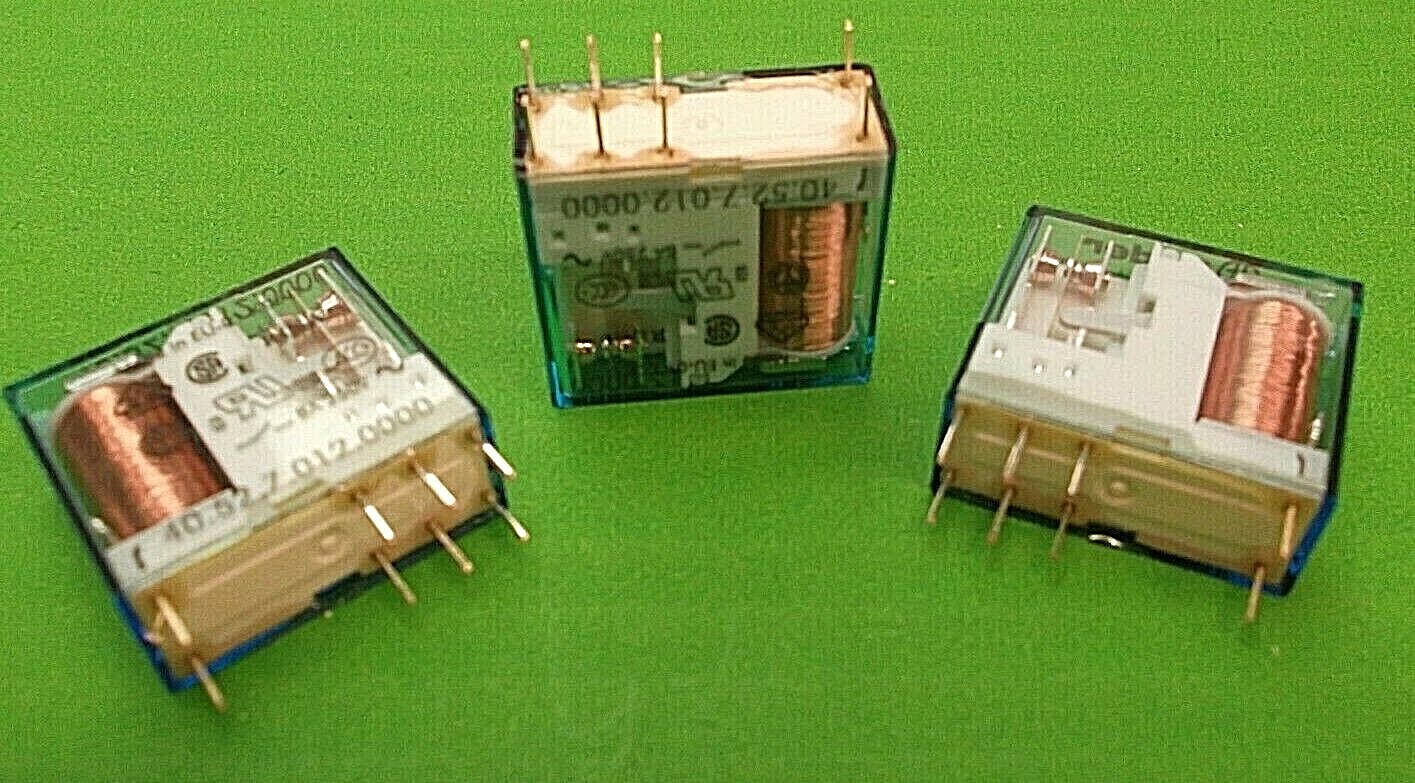

These are brand new and unused\nFinder part number 40.52.7.012.0000 Relay This has 8 Pins 2 Coil and 3 each side for Common N/C and N/O contact\nThe Finder 40 series are miniature PCB or plug-in relays. These electromechanical relays offer high isolation of 6KV, 8mm creepage and clearance distances between coil and contacts.\nProduct InformationPCB mount / Plug In5 mm pinningCadmium free contact materials8 mm Creepage and Clearance, 6 kV (1.2/50\u00B5s) between coil and contactMeets EN 60335-1 glow wire requirementsContact Configuration: DPDT (2 C/O)Sensitive DC Coil Voltage: 12VDC (8.8 to 18V)Contact Current: 8A (15A peak)Relay Mounting: Through Hole/Plug in Pin 5.3mmContact Voltage VAC: 250VAC Relay Terminals: Solder ContactVoltage VDC: - 12VdcContact Material: Silver Nickel Coil Resistance: 288 Ohms Sensitive DC Coil Wattage: 0.5W Size: 25mm x 12.4mm x 29mm\nApprovals & Standards: CSA, UL, VDE standards approved\nIn this \""Buy it Now\"";
