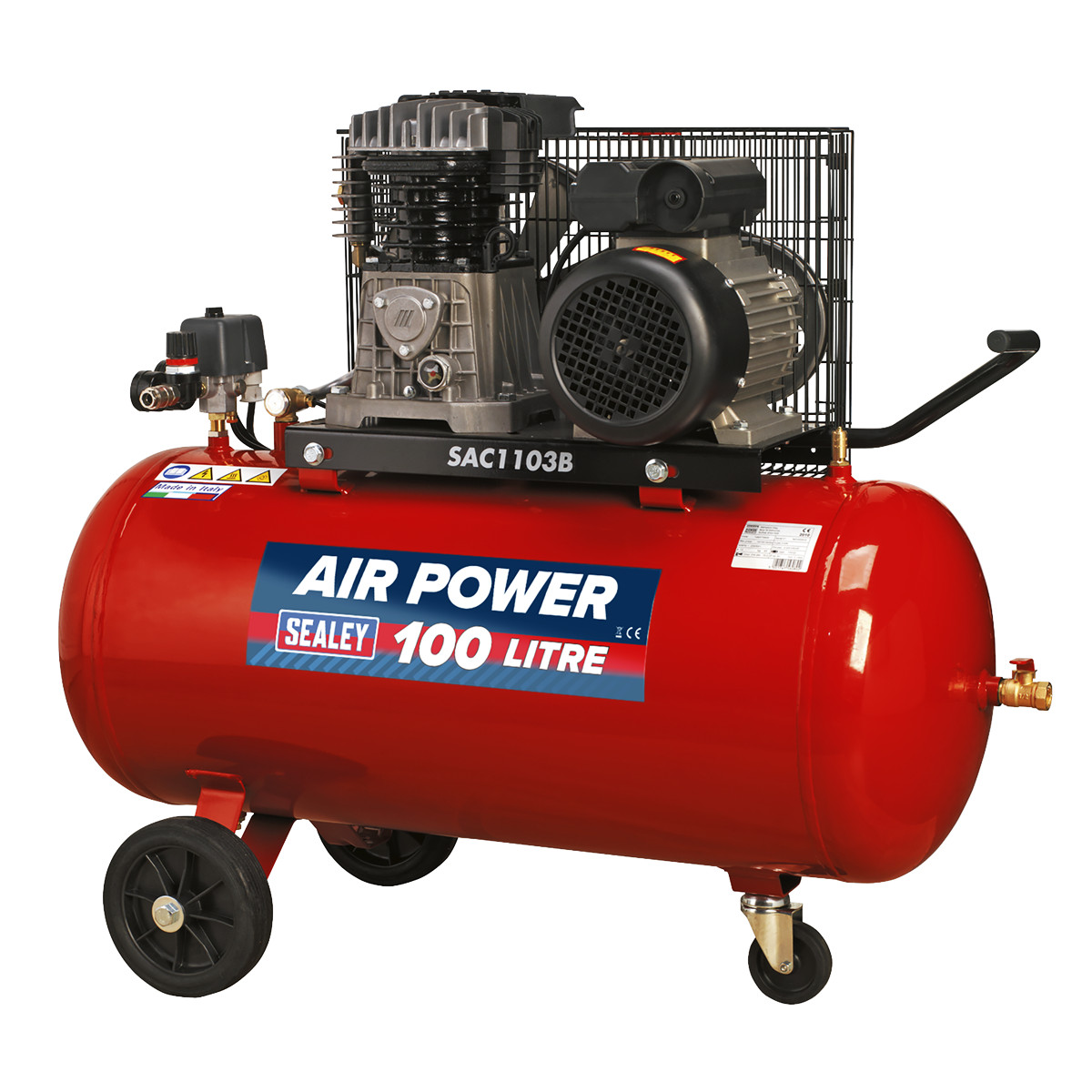

Sealey SAC1103B Compressor 100L Belt Drive 3hp with Cast Cylinders & Wheels

Sealey

The Sealey SAC1103B is a professional-grade 100-litre air compressor engineered for demanding workshop environments. Powered by a genuine 3.5hp motor with twin capacitors and centrifugal switch, this unit delivers reliable performance on a standard 13A supply, making it accessible for most workshop electrical installations without requiring special wiring. Built for durability and consistent operation, the compressor features heavy-duty full cast cylinders capped with alloy heads that enhance heat dissipation and extend service life. The flywheel design actively forces air over the pump to aid cooling during extended use, whilst heavy-duty drive guards protect the belt and flywheel assembly. With a maximum pressure of 116psi (8bar) and free air delivery of 10.59cfm (300L/min), this unit provides sufficient capacity for spray painting, tyre inflation, air tool operation, and general workshop pneumatic applications. Workshop mobility is enhanced through a practical four-point wheel system comprising two rear wheels and front castors, combined with a sturdy front handle for effortless positioning. Operating at 1100rpm, the compressor balances performance with a noise level of 90dB, whilst the 100-litre receiver capacity provides adequate air storage for continuous professional use. Features and Benefits: • 3.5hp motor with twin capacitors ensures trouble-free start-up on standard 13A domestic supply • Heavy-duty cast cylinders with alloy heads maximise heat dissipation for extended operational life • Flywheel design forces cooling air over pump to maintain optimal operating temperature • Four-wheel configuration with front castors and handle for easy workshop manoeuvring • 100-litre receiver capacity provides sustained air delivery for professional pneumatic tools Specifications: • Air Displacement cfm(L/min): 15cfm(425L/min) • Brand: Sealey • Maximum Free Air Delivery cfm(L/min): 10.59cfm(300L/min) • Maximum Pressure: 116psi(8bar) • Minimum Rated Supply: 13A • Motor Output: 3.5hp • Nett Weight: 74kg • Noise Level: 90dB • Oil Capacity: 1000ml • Outlet: Quick release coupling • Phase: 1ph • Receiver Capacity: 100L • Size (W x D x H): 1030 x 470 x 930mm • Speed: 1100rpm • Supply: 230V/13A
