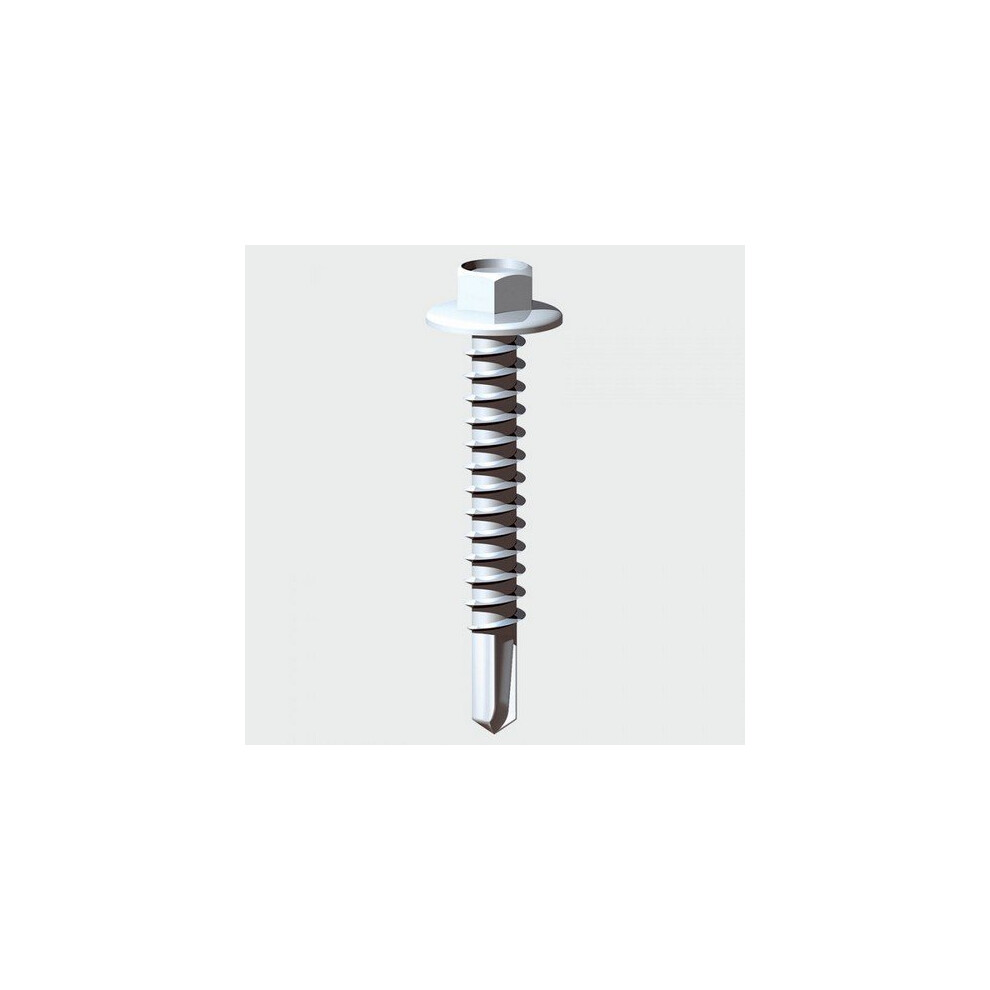

Timco 01234Hwsd Hex Head Self Drill Screw Bzp 12 X 3/4" Box Of 500 5055017521340
TIMco
Hex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.ApprovalBS EN 10666 (DIN 7504)CE Standard WebBS EN 14566:2008Corrosion Rating1 - Clean, dry & low humidity environmentsDescriptionHex head self-drilling screws, for joining roofing sheets to light section steel (Max. 5.0mm) without the need to pre-drill a hole.Drill Tip Angle degree110Drill Tip Length mm7.14Drill Tip Width mm4.55Effective Thread Length mm8FinishZincFixed Washer Dia. inchFixed Washer Dia. mm11.00Head Height mm3.95Head TypeHexLength inchLength mm19MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm5.0Pack Dimensions L x W x H mm135 x 90 x 90Pack Weight kg1.712Point TypeSelf-DrillingProduct Code01234HWSDRec RPM1,000 - 1,800Size imp.12 x Size mm5.5 x 19Socket Size inchSocket Size mm8SubstratesSteelThread Dia. mm5.5Thread Type60° Self-Tapping.
Compare prices (5 shops)
| shop | Price | Action |
|---|---|---|
|
12,52 GBP | Go to shop |
|
17,82 GBP | Go to shop |
|
18,92 GBP | Go to shop |
|
|
18,92 GBP | Go to shop |
| Tooled Up | 19,95 GBP | Go to shop |
