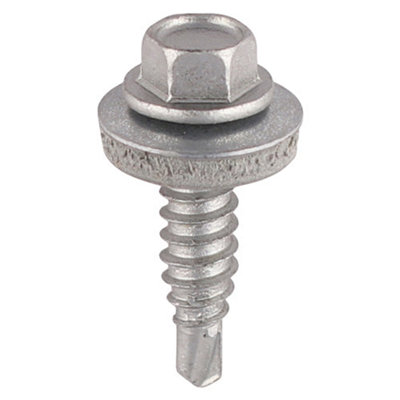

Timco - Metal Stitching Screws - EPDM Washer - Silver (Size 6.3 x 22 - 100 Pcs)
Timco
Used for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head. ApprovalBS EN 10666 (DIN 7504)Corrosion Rating3 - Urban & industrial areas with a low salt atmosphereDescriptionUsed for stitching two metal roofing sheets together without the need to pre-drill a hole (Max. 1.6mm). Self-drilling point and tapered shank, with a washered hexagon head. Drill Tip Angle degree110Drill Tip Length mm5.50Drill Tip Width mm3.90Effective Thread Length mm9EPDM Washer mm16FinishExterior (Silver Organic)Fixed Washer Dia. mm12.00Head Height mm5.60Head TypeHexIncluded Items16mm EPDM WashersLength mm22MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm1.6Pack Dimensions L x W x H mm95 x 90 x 60Pack Weight kg0.648Point TypeSelf-Drilling No.2 ReducedProduct CodeS22W16BRec RPM1,000 - 1,800Size mm6.3 x 22Socket Size mm8SubstratesThin Sheet MetalThread Dia. mm6.3Thread Type60° Tapered Self-Tapping.
