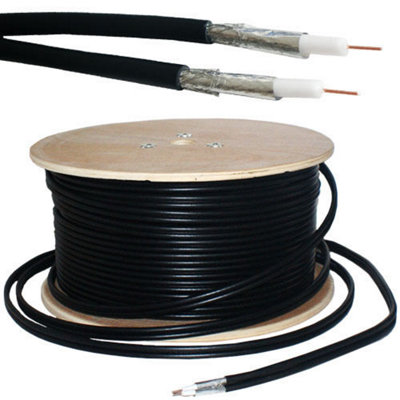

100M (330 Ft)Rg6 Twin Coaxial Shotgun Cable Aerial Satellite Dish Lnb Sky+ Hd Freesat from B&Q

B&Q

RG6 Twin Coaxial Cable - Foam Filled & CCSOverview:Ideal for running from a dish/LNB to all Sky Plus/HD boxes or Freesat boxes. Once the cable is run, simply terminate it with 'F connectors', also available in our shop. We recommend not using this cable for runs over 35 metres. Suitable for outdoor and indoor use.Colour - blackTechnical Specification:Twin coaxial cable, the inner conductors are constructed from CCS (copper clad steel), it then has an aluminium magnesium braid with an aluminium foil screen and foam dielectric. CSA - 2 x 0.79mm²Conductor diameter - 2 x 1.0mmÃConductor Material - CCSBraid - 2 x 64 x 0.12mmÃScreen - 2 x Aluminium / PET foilCable diameter - 2 x 6.60mmÃDielectric - 2 x 4.60mmà Foam P.E.Impedance - 75 ohmsVelocity factor - 0.83 min.Return loss 5-400MHz - 24dB min.Return loss 450-1000MHz - 20dB min.Return loss 1000-2150MHz - 16dB min.Attenuation @ 5 MHz - 2.8dB max.Attenuation @ 50MHz - 5.1dB max.Attenuation @ 100MHz - 6.9dB max.Attenuation @ 200MHz - 10.1dB max.Attenuation @ 400MHz - 14.9dB max.Attenuation @ 1000MHz - 22.2dB max.Attenuation @ 1750MHz - 29.6dB maxAttenuation @ 2150MHz - 33.3dB maxHow to use:When this cable is being attached to connectors, the cable should be stripped, the earth wrapped around the PVC jacket and inserted carefully into the connector ensuring a good connection is made. We also supply a wall plates that can be used with this cable, please look through our shop. If you require help, technical support can be given free of charge.Please note - 25m & 50m lengths may NOT be supplied on a reel.
