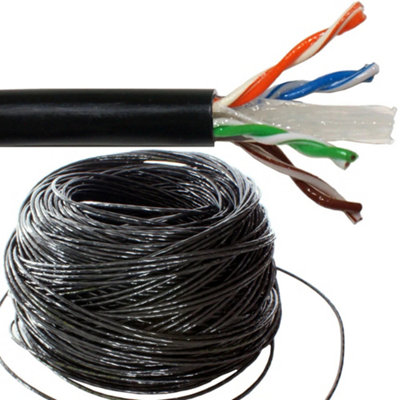

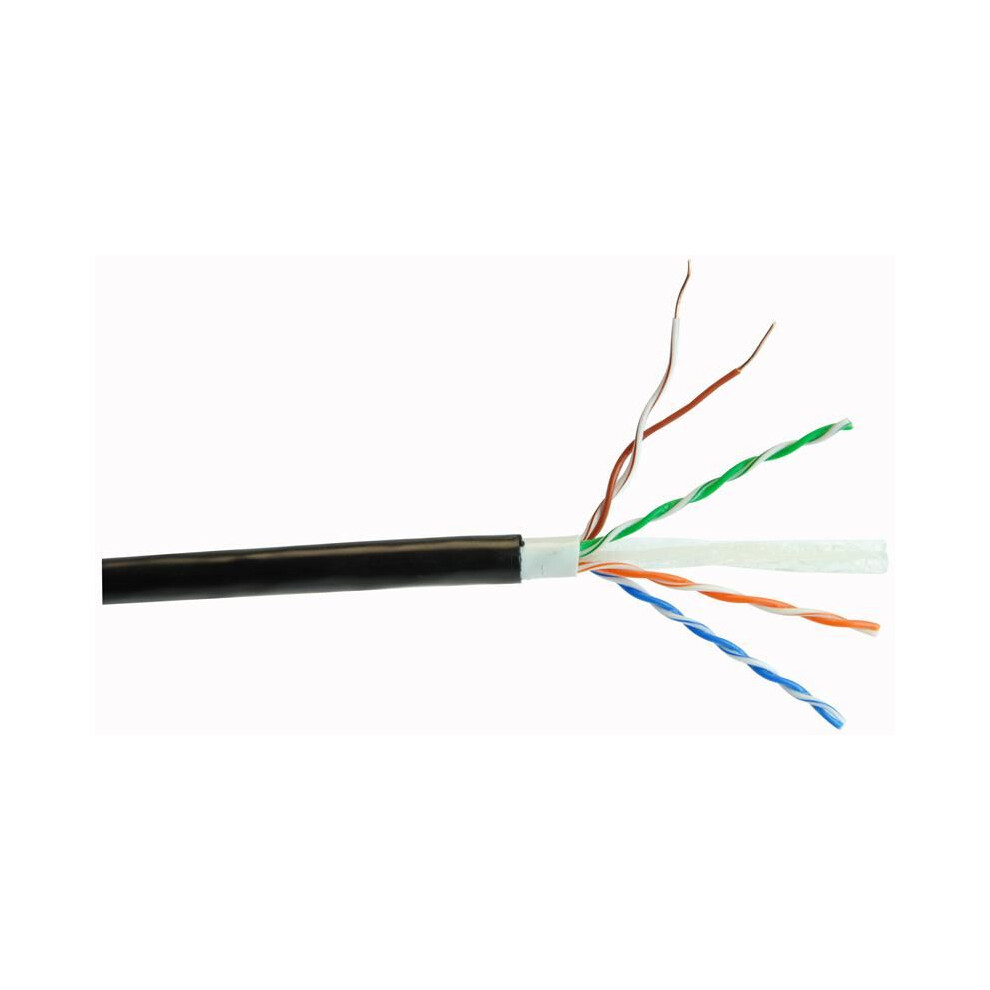

Loops 100M Cat6 Ethernet Solid Pure Copper Cable Reel Drum Gigabit Utp Network Rj45

Loops

Category 6 UTP Reel Cable - Pure CopperUses - This cable is commonly used for networking and AV installations. It can be cut to length and fitted with 8P8C connectors (also called RJ45), the standard PC networking connector. If you plan to fit these yourself, you will also need a CAT5 crimping tool, which we also supply.Made From - Pure copper conductors, this cable has been tested and is certified to CAT6 specification so is fine for use over longer distances. Colour - GreyEase of Use - To make measuring easy the cable is marked at 1 metre intervals.Technical Features;Reel Length (Metric): 305mConductor Area CSA:0.2mm² (24 AWG)Conductor Make-up: 1/0.50mmNo. of Cores: 8Quality CAT6 4 pair network cableUnshielded Twisted Pair (UTP) Suitable for up to 1000MbpsThis cable can be used for 10Gbps networks at reduced lengths, usually it would have a maximum length of 37 -55m depending on how much crosstalk there is around the cable. If you need to go over this distance, we recommend our CAT6A cable.Wiring “ Depending on the application in which you hope to use it, the cable can be wired in both the straight through or cross-over configurations.'Cross over' cables are usually used for connecting 2 computers directly to one another, without the use of a Hub or Router. They use 568-A wiring at one end, and 568-B at the other. 'Straight through' cables can be used for connecting a PC or games console to a Hub/Router, or, in conjunction with AV extender devices, for audio and video distribution throughout a home or commercial project. To create a 'straight through' cable, it should be wired using the same wiring variant at both ends. Either 568-A to 568-A or 568-B to 568-BVariants “ The 2 wiring configurations for CAT5/CAT6 cable. TIA/EIA-568-A & TIA/EIA-568-B. have no technical differences between them. However, they connect the wires to the connector in a different order, as shown in the wiring diagram above. .
