Loops 100M Rg174 Coaxial Cable Copper Aerial Sma Tnc Antenna Wifi Router Wire Black
Loops

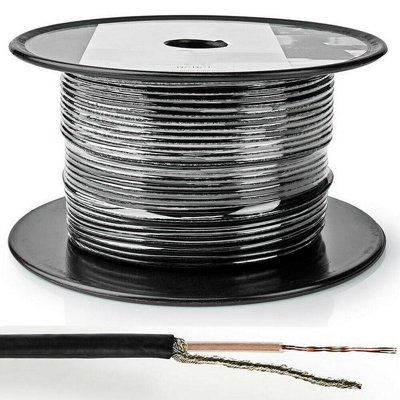

Black RG174 Coaxial Cable PLEASE NOTE “ 50m & 25m Lengths of this cable are not likely to be supplied on a reel. Perfect for aerial and antenna use, this cable is flexible and is ideal for attaching the smaller type coaxial connectors such as SMA or TNC connectors. Technical Specification: 75 ohm resistance. The spacing between the centre core and shield is consistent to enable a constant 75 ohm impedance to be maintained. Conductor Material “ Copper Conductor Diameter “ 7 x 0.16mm Double Shielded Outer diameter: 2.65mmà Dielectric Diameter “ 1.6mmHow to use:When this cable is being attached to connectors, the cable should be stripped and inserted carefully ensuring a good connection is made. We also supply a variety of connectors and crimp tools that can be used with this cable, please look through our shop or get in touch for any details. Further Information:Attenuation (Db / 100 m)Attenuation @ 50MHz 20.1 dB / 100m (±3 Ohm) Attenuation @ 100MHz 25.9 dB / 100m (±3 Ohm) Attenuation @ 200MHz 36.8 dB / 100m (±3 Ohm) Attenuation @ 400MHz 52.4 dB / 100m (±3 Ohm) Attenuation @ 800MHz 74.7 dB / 100m (±3 Ohm) Attenuation @ 950MHz 81.7 dB / 100m (±3 Ohm) Available in the following lengths “ 100m, 50m & 25m .
Compare prices (3 shops)
| shop | Price | Action |
|---|---|---|
|
77,49 GBP | Go to shop |
|
77,49 GBP | Go to shop |
|
|
77,49 GBP | Go to shop |
