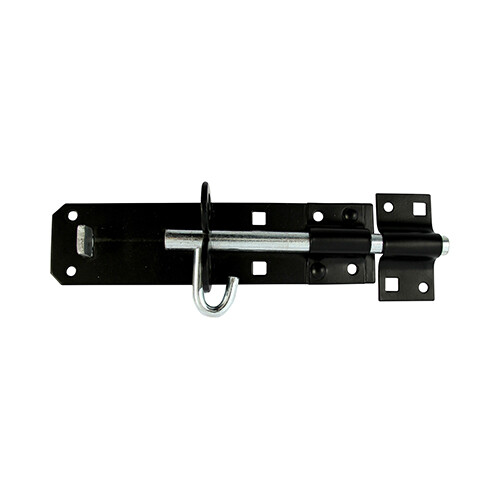

Timco 8 - Brenton Padbolt - Black - TIMbag of 1 - BP8BP

Name: Timco 8 - Brenton Padbolt - Black - TIMbag of 1 - BP8BP
Brand: Timco

Timco

Brenton padbolts are used for securing flush mounted gates and shed doors in domestic and light commercial applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings included. Bolt Dia. mm12.0Bolt Length inch8Bolt Length mm200Bolt Throw mm45Carriage Bolt Size mmM6 x 50Corrosion Rating2 - Occasionally damp/wet, rural and sheltered areasDescriptionBrenton padbolts are used for securing flush mounted gates and shed doors in domestic and light commercial applications. They are pad-lockable and fixed with carriage bolts for added security. Fixings included. FinishEpoxy BlackIncluded ItemsM6 x 50mm Carriage Bolts (Qty 4)?M6 Hex Full Nuts (Qty 4)?M6 Form A Washers (Qty 4)?4.0 x 30mm Pan Screws (Qty 6)MaterialCarbon SteelMax Padlock Shackle Diameter mm12.0No. of Bolt Holes4No. of Carriage Bolts4No. of Nuts4No. of Pan Screws6No. of Screw Holes6No. of Washers4Nut Size mmM6Nut TypeHex FullPack Dimensions L x W x H mm20 x 160 x 290Pack Weight kg0.460Pan Screw Size mm4.0 x 30Plate Size L x W mm225 x 45Product CodeBP8BPRec Screw Dia. mm4.0Rec Screw Gauge imp.8Staple Keep Size L x W mm56 x 33To Fit Carriage Bolt Dia. mmM6Washer Size mmM6Washer TypeForm A.
