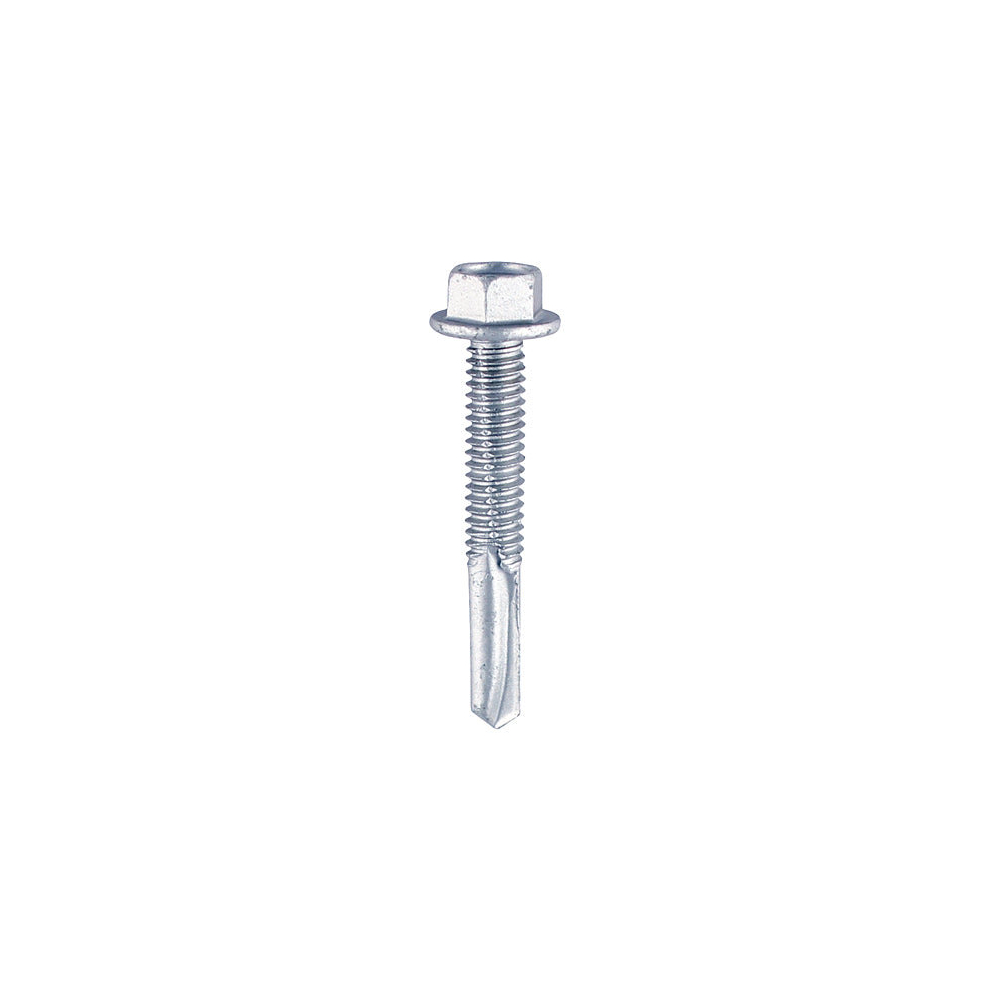

Timco Self-Drilling Heavy Section Silver Drill Screw- 5.5 X 100
TIMco
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. ApprovalBS EN 10666 (DIN 7504)Corrosion Rating1 - Clean, dry & low humidity environmentsDescriptionUsed for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. Drill Tip Angle degree110Drill Tip Length mm15.00Drill Tip Width mm5.00Effective Thread Length mm56 *P/TFinishZincFixed Washer Dia. mm12.00Head Height mm5.60Head TypeHexLength mm100MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm12.0Max Torque Nm11Pack Dimensions L x W x H mm180 x 90 x 90Pack Weight kg1.700Point TypeSelf-Drilling No.5Product CodeZH100BRec RPM1,000 - 1,800Size mm5.5 x 100Socket Size mm8SubstratesSteelThread Dia. mm5.5Thread Type*P/T = Partially Threaded, Metric with V Flutes & Torque Relieving Slash.
