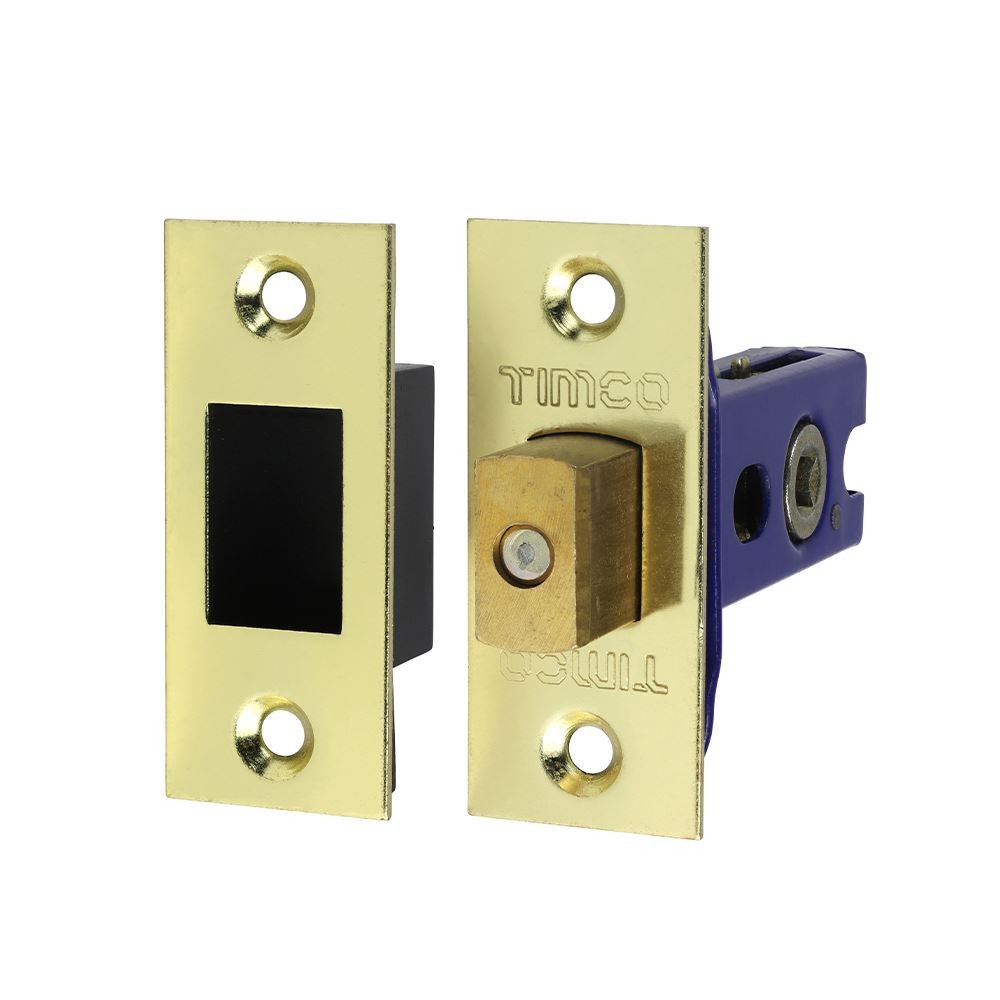

TIMCO Arch Tubular D/Bolt EB & SN 65.5mm Pack 1

TIMCO

A heavy duty architectural pattern tubular deadbolt for high use domestic and commercial applications.. Designed to be used with a separate bathroom turn (5mm spindle), it provides a positive, reliable deadbolt action for. WC, bathroom and privacy doors. Supplied with fixings to suit both electro brass and satin nickel furniture for a neat,. co-ordinated finish on a wide range of internal door styles.. Key Features. Robust architectural tubular deadbolt for high traffic internal doors.. To be used with a separate bathroom turn and release with 5mm spindle (not included).. Heavy duty mechanism – suitable for frequent use in domestic and commercial environments.. 15mm bolt throw for secure engagement into the frame and a positive “locked” feel.. Supplied with fixings suitable for both electro brass and satin nickel door furniture.. Square edge faceplate and keep for a clean, professional edge detail.. Dust box supplied to improve appearance and reduce debris in the strike hole.. Use with sprung or unsprung bathroom/turn furniture.. Typical Applications. Bathroom and WC doors using separate turn and release sets.. En-suite and shower room privacy doors.. Internal doors in homes, hotels, student accommodation and offices.. Refurbishment and new-build projects requiring a neat, tubular deadbolt solution.. Specifications. Product type. Architectural tubular deadbolt. Lock case depth. 65.5mm. Backset. 45mm (to follower/turn spindle). Bolt throw. 15mm (approx.). Faceplate size (H × W). 60 × 25mm. Faceplate type. Square. Keep size (H × W). 60 × 25mm. Case height. 22.5mm. Case width. 15mm. Operation. Deadbolt by bathroom turn (5mm spindle – not supplied). Finish. Electro brass & satin nickel (supplied fixings to suit both). Corrosion rating. Grade 1 – clean, dry & low humidity environments. Fixings supplied. 4 × 4.0 × 25mm countersunk screws, dust box, strike plate/keep
