750kg Trailer Suspension Units Wheels Tyre 145 x 10"" 4PLY 4""PCD 4 Stud Hub

AB Tools

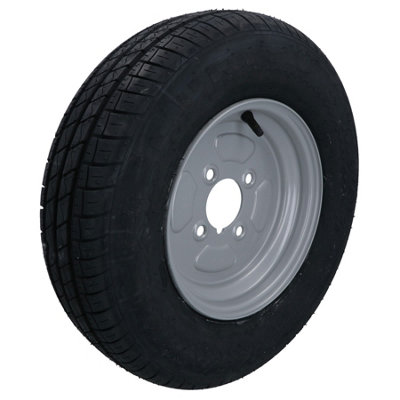

Wheels (Pair) Specifications: High OEM quality, as used in our own trailer factory. 10" Steel Wheel, 4" PCD. (See our PCD guide below if you are unsure about this) Fitted with a 14510" RADIAL Tubeless Tyre. Max load 375kg (750kg per axle) with a 4 PLY Rating. PLEASE NOTE; If your trailer was built on second hand mini wheels like many older trailers, then this wheel is the new replacement but it has a different offset to a mini wheel. They will fit the mini hub with no problems but will stick out from the trailer just over an inch more than before. In many cases this is ok but in some cases it is necessary to space the mudguard out for it to fully cover the wheel in order to use these wheels. Guide to Wheel PCD To make sure your new wheel will fit your trailer you need to check the stud pattern size and this is known as the PCD. PCD stands for ?pitch circle diameter? and is the diameter of a circle drawn through the centre of all the wheels bolt holes. On a four stud wheel this is very easy to measure, simply by measuring the distance between the centres of two diagonally opposite wheel studs as shown below. The PCD can be measured in millimetres or in inches. If you have any problems or are not sure please do not hesitate to contact for advice either by message or by telephone on 01782 642122. If you do purchase a wheel and tyre that does not fit your trailer then we are happy to accept a return for exchange or refund as we are on any of our items. The item must be unused and you are responsible for postage costs. Hub Specifications: This listing is for a pair of hub sets. They are available in individually or with suspension units in our shop. High quality cast construction. Fits a standard 1" trailer stub axle. 4" PCD Hub, 4 stud. Complete fitted with 3/8" wheel studs and the bearing races are already pressed into the hub, meaning no specialist.
