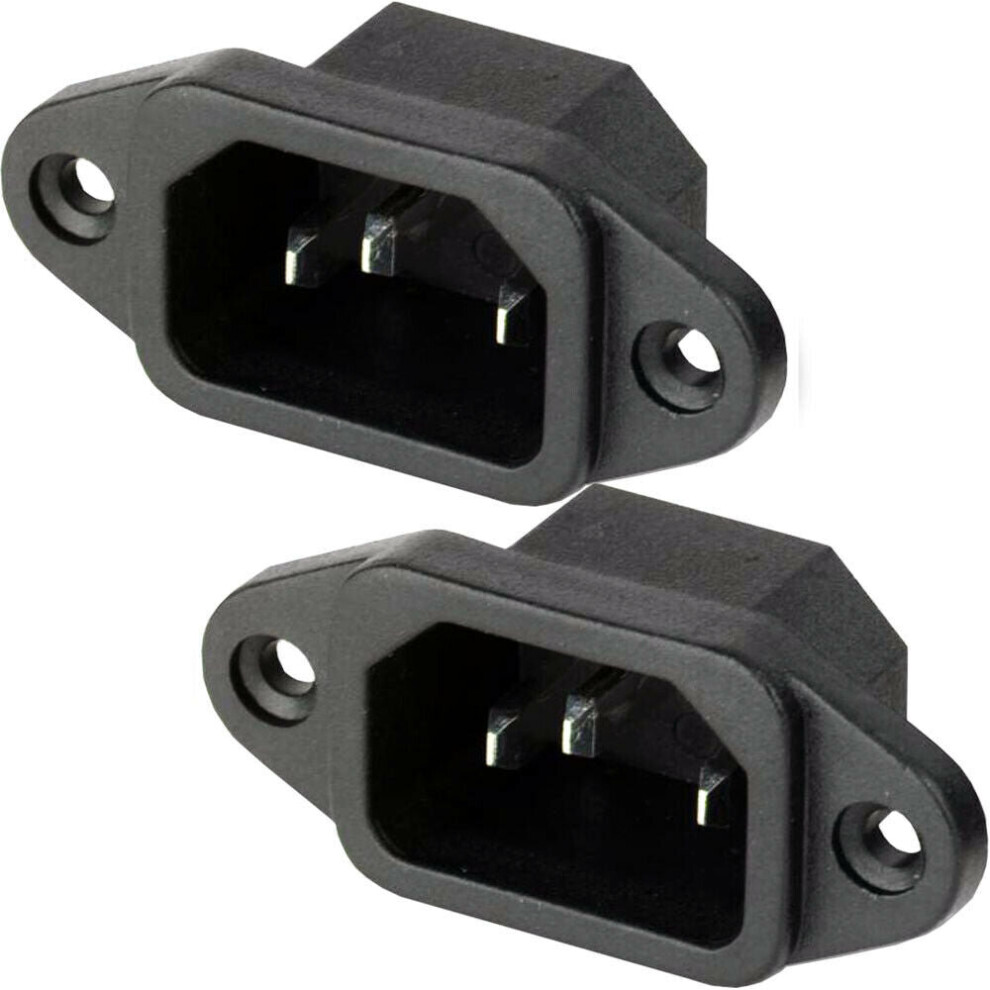

Loops 2X Iec C14 Power Socket 10A Screw In Pcb Inlet Panel Chassis Mount Connector
Loops
2 Pack Screw on IEC Socket Power Inlet – Solder ConnectorPLEASE NOTE – This is for 1 piece only, we also sell them in quantities of 5, please search our shop for more details.Overview – Perfect for replacing / adding any power sockets providing that there is enough room for it to be mounted (dimensions below). It is constructed from high quality materials is very simple to install.Dimensions:Panel cut-out required – 20mm x 27.7mmFrame size – 50mm x 22mmSolder tags – 5.5mm x 4mm x 0.8mmTechnical Specifications: Power/current rating – 10A @ 250V ACDielectric strength – 2000V @ 1 minuteInsulation resistance – 100Mohm @ 500V DCMaterials used – UL94V-0 & Nylon 66 housing Operating temperature range – -25°C to 85°CColour – BlackStandards – ROHS Compliant.
Compare prices (3 shops)
| shop | Price | Action |
|---|---|---|
|
5,79 GBP | Go to shop |
|
5,79 GBP | Go to shop |
|
|
5,79 GBP | Go to shop |
