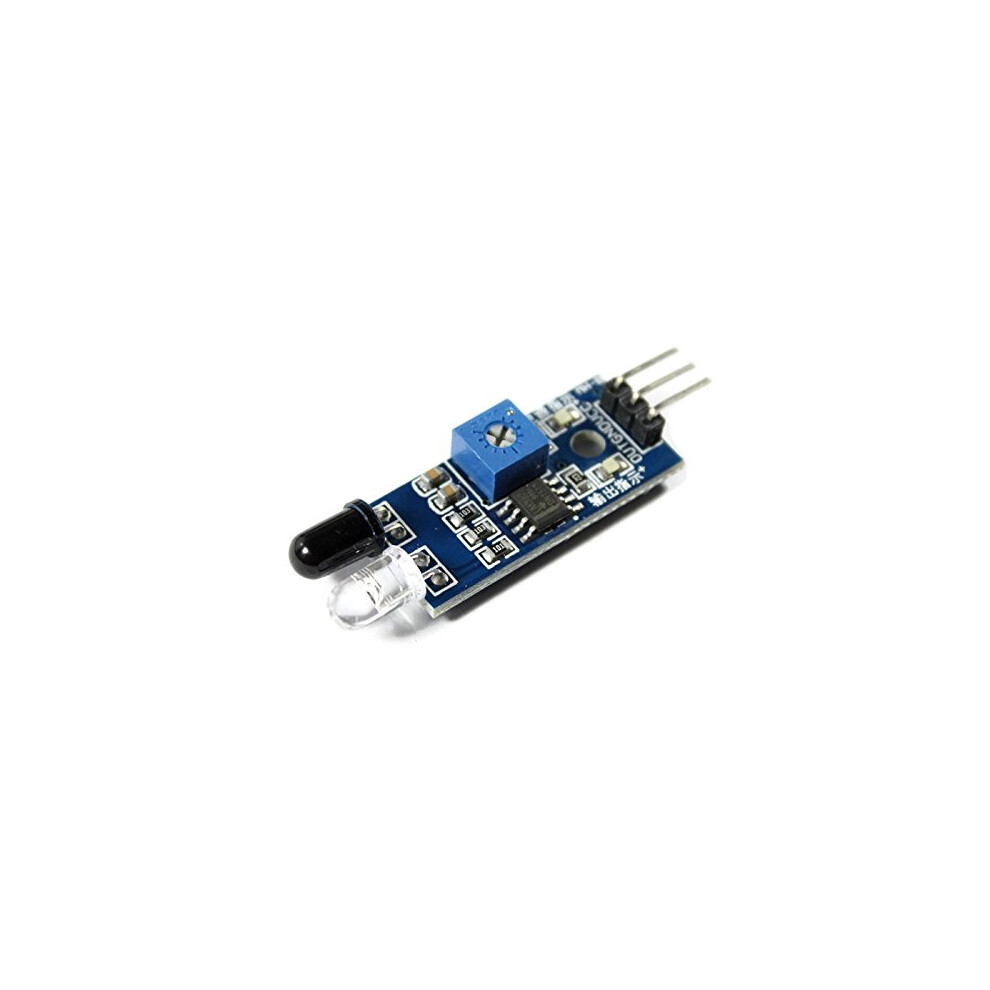

IR Infrared Flame Detector Sensor Module Arduino Raspberry Pi

Switch Electronics

IR Infrared Flame Detector Sensor Module Arduino Raspberry Pi\n\nIR Infrared Flame Detector Sensor Module Arduino Raspberry Pi\n\n\u00A33.19\n\nAsk a question\n\nDescription\n\nShipping\n\nAbout Us\nDescription\n\nInfrared flame detector module suitable for use with a Arduino, Raspberry Pi and other microcontrollers. The module is capable of detecting light with a wavelength range from 760nm to 1100nm, suitable for use with robotics and flame detection systems.\n The analog signal pin provides an output based on the level of radiation available to the sensor. The digital signal pin outputs HIGH when the level goes above the trigger level and low when below it. The trigger level can be adjusted via the onboard potentiometer. The module will output HIGH values when detecting light and LOW values when no light is detected. The module features an LED which illuminates when the sensor is detecting above the trigger level.\n\n--3.3V - 5V input voltage \n--Adjustable trigger level \n--Digity
