- 20 Tonne Floor Type Air Hydraulic PressSliding Ram AssemblyPressure Gauge

B&Q

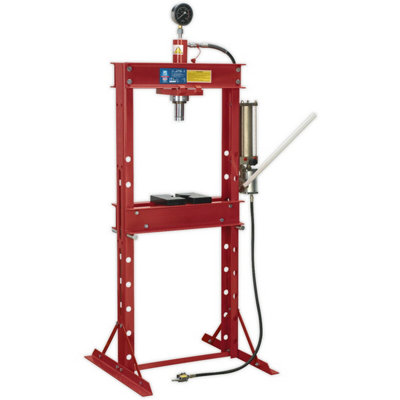

20 Tonne Floor Type Air Hydraulic Press - Sliding Ram Assembly - Pressure GaugeOverview: Steel frame construction with side mounted, air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.Features: Table Aperture: 100mm.Working Table Width: 630mm.Ram Stroke: 185mm.Steel frame construction.Side mounted air motor powering hydraulic pump unit.Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.Fitted with ram pressure gauge.Supplied with flat pressing plate/V-blocks.This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.Specification: Air Consumption - 4cfm Bench or Floor Mounting - Floor Capacity - 20tonne Gauge Included - Yes Lateral Ram Travel - 403mm Maximum Height - Ram to Table - 1018mm Minimum Height - Ram to Table - 58mm Net Weight - 93kg Optional Accessories - YKPP8 - Press Pin Set Overall Height - 1796mm Ram Diameter - Ø48mm Ram Stroke - 185mm Table Aperture - 100mm Type - Air/Hydraulic Working Pressure - 108-120psi Working Table Depth - 206mm Working Table Width - 630mmFurther Information: We sell a wide variety of tools & workshop equipment for both the DIY and Professional markets. With well over 10,000 lines of equipment suiting all jobs big or small, our online store has it all. If you can’t quite find what you are looking for, please feel free to contact us and we’ll be more than happy to help.Alias: ys11962.
