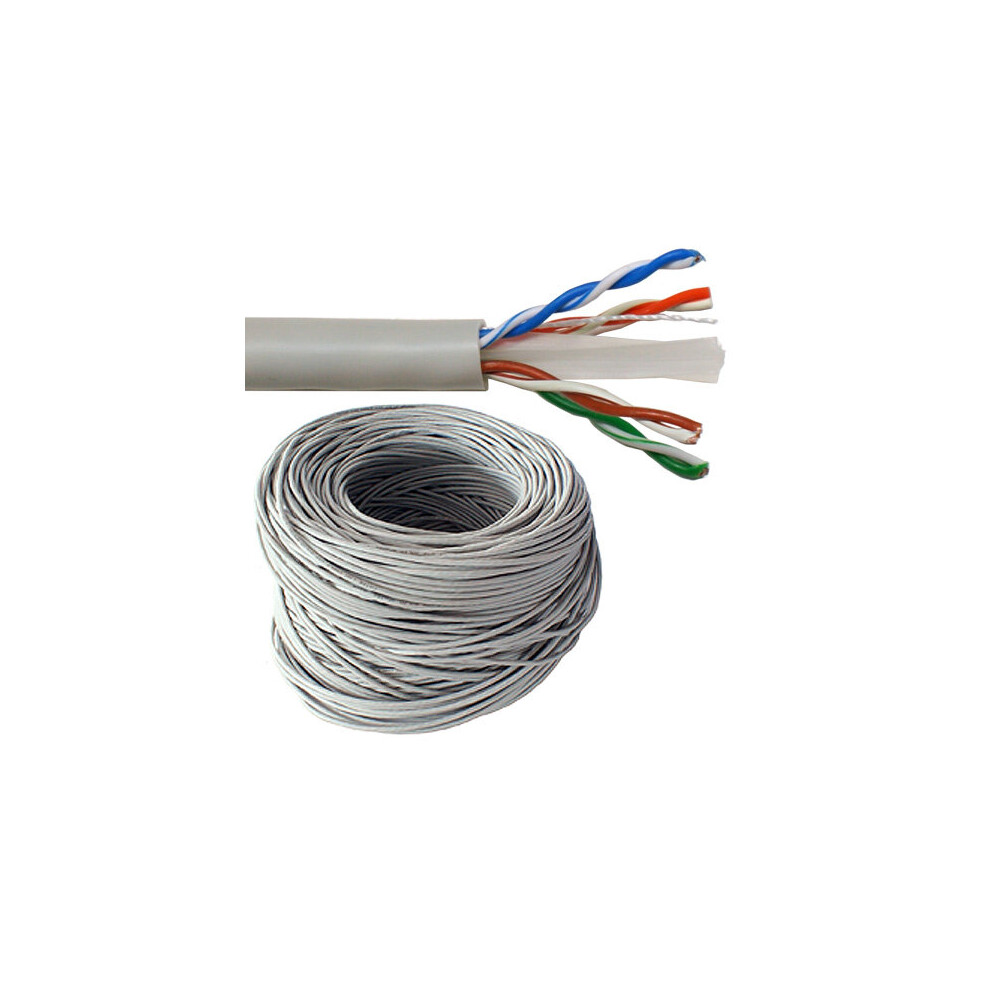

25M (82 Ft)Cat5E Ethernet Solid Pure Copper Cable Reel DrumUtp Gigabit Network Rj45 from B&Q

B&Q

Category 5e UTP Reel Cable - Pure CopperUses - This cable is commonly used for networking and AV installations. It can be cut to length and fitted with 8P8C connectors (also called RJ45), the standard PC networking connector. If you plan to fit these yourself, you will also need a CAT5 crimping tool, which we also supply. Made From “ 24 AWG Pure copper conductors, this cable has been tested and is certified to CAT5e specification so is perfectly capable of Gigabit, HDBaseT & POE applications. This cable also passes CAT5e fluke tests “ 100m @ 100MHz. Colour - GreyEase of Use - To make measuring easy the cable is marked at 1 metre intervals. Technical Features; Reel Length (Metric): 305m Unshielded Twisted Pair (UTP) Conductor Make-up: Solid Oxygen Free Copper (OFC) - 8x 1/0.5mm diameter -/+ 2% Conductor Area CSA: 8x 0.196mm² (24 AWG)Conductor Insulation: HDPE @ 0.19mm thicknessSheath / Outer Insulation: PVC @ 0.5mm thicknessCable Diameter: 5mm - FlexibleCapacitance: 4.9nF/100mDC resistance @ 20 Degrees Celsius: <16.7 Ohms/100mImpedance (1 to 100MHz): 100 Ohms (-/+15)Return Loss: >20dB @ 100mAttenuation: <22dB @100mNEXT: >35.3dBPSNEXT: >32.3dBELFEXT: >23.8dBPSELFEXT: >20.8dBPhase delay: <570ns This cable can be used for Gigabit networks at reduced lengths, usually it would have a maximum length of 37 -55m depending on how much crosstalk there is around the cable. If you need to go over this distance, we recommend our CAT6 or CAT6a cables. Wiring - Depending on the application in which you hope to use it, the cable can be wired in both the straight through' or cross-over' configurations. 'Cross over' cables are usually used for connecting 2 computers directly to one another, without the use of a Hub or Router. They use 568-A wiring at one end, and 568-B at the other.'Straight through' cables can be used for connecting a PC or games console to a Hub/Router, or, in conjunction with AV extender devices, for audio and video distribu.
